Himiway D3 ST (Cruiser ST) | All Terrain Step Thru Electric Bike
One Cruiser, All Terrains
-
Availability: In Stock
-
Shipping Time: Within 2 Business Days
Buy D3 Get Christmas Gifts
Couldn't load pickup availability
Technical Specifications
Geometry
-
A – total length75
-
B – handlebar height46.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter28.7
-
F – minimum seat height22
-
G – maximum seat height29
-
H – chain stay length18.7
-
K – effective top tube length23
-
L – head tube length6.1
-
Standover height27.9Step-Thru:30.3
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H148 28.6×44*44×30mm
-
ForkGuide-26”-TNL-95 95mm travel
-
Front wheelMB015-92 13G*135*9mm MD242 26*87mm 12G*36
-
Rear wheelRim: 13G*135*9mm MD242 26*87mm Spoke: 12G*36 Hub: 48v 750w Himiway hub motor
-
TiresEXCE26 26*4.0
-
Battery48V 15Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4IXF-212FA 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemYC-C410 28.6*80*31.8mm
-
HandlebarYC-B087 22.2*31.8*700mm
-
SeatpostH202211DJ ISO-M 30.4*350mm
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1" ~ 6'5"Step-Thru:5'3" ~ 6'5"
-
Rider height72lb.
-
Max. system weight350 lb.
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
750 W
Geared Hub Motor
-
720 Wh
Samsung/LG Battery
-
350 lb.
Payload Capacity
-
20+ Mph
Top Speed The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
-
Mechanical
180MM Brakes
-
7-Speed
Shimano Derailleur
-
26x4 "
Fat Tire
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
One Cruiser, All Terrains
Designing an elegant, sophisticated and versatile electric bike has always been the ultimate goal of Himiway. The low-step design provides convenience and exceptional comfort while retaining all the excellent performance featured in Cruiser. The 26 inches fat tires offer decent skid resistance and anti-vibration ability. Ride with convenience; Ride with elegance; Ride with us!
LONG RANGE EXPERT
840Wh High-performance Lithium-ion Battery
720 Wh
48V 15AhBMS
Ensure your SafetyIt combines the 48V 15AH Samsung/LG Lithium-ion Battery to ensure a long life expectancy and distinguished performance. The single range can be up to 60+ miles per charge on pedal-assist mode.
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
The BMS (battery management system) is critical to the battery’s safe operation, overall performance, and longevity. If it detects any unsafe conditions, the BMS shuts the battery down to protect the lithium-ion cells and the rider.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
Temperature Control
Updated 750W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
750W
1200W PeakFOC
Field oriented control750W Upgraded Brushless Geared Hub Motor use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
80 Nm
Max Torque
-
1200 W
Peak
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
clear at a glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
LCD Display
Left Handle
Right Handle
The Backlit LCD display provides information on speed, mileage, power, etc.
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set
-
Switch
-
Light ON/OFF
-
Info
-
Half twist throttle
-
Shimano gearbox
-
Bell
The All-terrain Fat Tire
26"x4"
All Terrain26"x4" fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
350 lb. Payload with Aerospace Grade Aluminum Frame
6061
Aluminum5'3" ~ 6'4"
Recommended Rider HeightsIts frame is made of high-quality 6061 aluminum, capable of handling a maximum weight of 350 lbs, surpassing the average industry standard payload of 275 lbs. The frame is specially designed for larger riders and those carrying heavy belongings. With its upgraded motor, Himiway Cruiser provides exceptional power and smoothness, even when carrying heavy cargo.
-
77 lb.
with Battery
-
350 lb.
Payload Capacity
With adjustable saddle and strong frame structure, it can meet the needs of riders of different height and weight.
Zoom in on New Features
All these upgraded components are designed to give a comfortable, smooth and safe riding experience on city roads.
Shimano 7 Speed Gear Shift System
The Shimano 7 speed freewheel means you can shift to a larger cog for uphill riding and downshift to a smaller cog for high speed riding. In combination with the pedal-assist system, you can adjust the most suitable speed to complete your journey.
180MM Mechanical Disc Brakes
Both the front and rear 180MM mechanical disc brakes provide ample stopping power even in the harshest conditions.
Front Fork: Coil Suspension & Hydraulic Lockout
Alloy front suspension fork has 80mm of travel, preload adjustment, and lockout.
Velo Saddle Seat
Comfortable saddle seat features a comfortable design specially made for pressure relief.
Durable Aluminum Crankset
Durable aluminum crankset guards to provide further protections to the chainring and help the chainstay to travel over rough terrain.
Half Twist Throttle
The Half-twist throttle prevents the accidental activation, protecting you from accidental injuries.
48V Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.
Easy to Assemble
Watch VideoTechnical Specifications
Geometry
-
A – total length75
-
B – handlebar height46.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter28.7
-
F – minimum seat height22
-
G – maximum seat height29
-
H – chain stay length18.7
-
K – effective top tube length23
-
L – head tube length6.1
-
Standover height27.9Step-Thru:30.3
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H148 28.6×44*44×30mm
-
ForkGuide-26”-TNL-95 95mm travel
-
Front wheelMB015-92 13G*135*9mm MD242 26*87mm 12G*36
-
Rear wheelRim: 13G*135*9mm MD242 26*87mm Spoke: 12G*36 Hub: 48v 750w Himiway hub motor
-
TiresEXCE26 26*4.0
-
Battery48V 15Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4IXF-212FA 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemYC-C410 28.6*80*31.8mm
-
HandlebarYC-B087 22.2*31.8*700mm
-
SeatpostH202211DJ ISO-M 30.4*350mm
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1" ~ 6'5"Step-Thru:5'3" ~ 6'5"
-
Rider height72lb.
-
Max. system weight350 lb.
Reviews
I recently ordered two Himiway Cruiser ST e-bikes, and I am extremely impressed with the entire experience. Both bikes shipped within two business days, which is fantastic. Assembly was straightforward and hassle-free, thanks to the well-thought-out design and clear instructions.
The quality of the bikes is outstanding. They feel durable and well-built, perfect for long rides. One of the bikes arrived with a fully deflated front tire and had an issue with inner tube, but the customer support team resolved it promptly. They sent a new inner tube without any delays, showcasing their commitment to excellent after-sale service.
This kind of support is rare and has made me confident in recommending Himiway to my friends and family. Overall, I’m very satisfied with my purchase and look forward to many enjoyable rides.

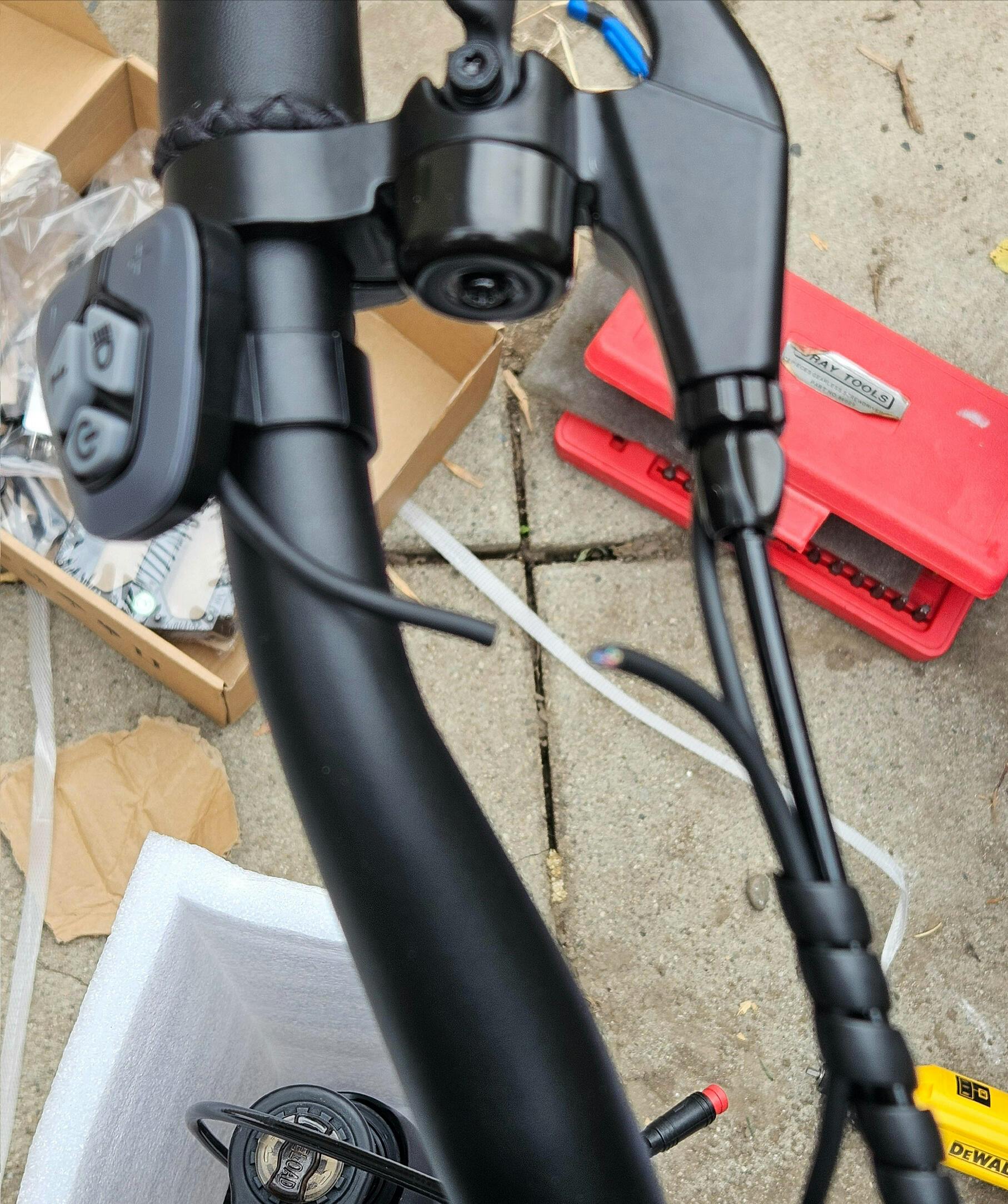

The bike looks good and seems well made but a defective wire on control switch has not allowed me to try the electric part. A replacement display and switch are coming. My grade for bike will fall even further if part continues to backordered. CAN NOT EVEN RETURN BIKE WITH 14 DAY PERIOD BECAUSE OF FAUTLY SWITCH.
I have been riding this bike for a week now and I absolutely love it. This hard tail has a great ride due to the big tires on it. Only thing I found is the seat is hard, will be changing it out. Lots of power for any trails we have. Overall it is a great bike and I would recommend it to anyone.
I had been looking at e-bikes for quite some time now, and there are literally dozens of vendors out there flogging what looks to be the exact same bike. I finally decided on the Himiway as it checked off all the boxes. The on-line purchase went smoothly and I was kept informed of each step of the shipping process. Bike arrived right on time. I was even contacted by Purolator to ensure someone would be home during the day to provide a signature. When Purolator arrived, mine wasn't the only Himiway bike on the truck, which I thought was a good sign.
The bike was packed nicely in a heavy cardboard box, and not damaged. Unpacking was straight forward, and assembly was fairly simple. The instructions are OK, but could be better. The installation of the derailleur protector wasn't clear, and there were several screws left over from the installation kit that aren't referenced anywhere in the booklet. I can only assume they're spares, or for other optional upgrades or add-ons.
The bike itself is wonderful to ride. The seat is comfortable and easily adjustable. The motor is powerful, and easily gets this 200lb rider up to 20mph quickly! I've only had the bike a couple of weeks, but I look forward to enjoying it for years to come. I have not tested the advertised range of the bike, but that wasn't a huge factor in selecting the Himiway. I would recommend this bike to anyone looking for a good quality e-bike. My only 'complaint' about the bike is that they're only available in two colours: Black for the step-over, and white for the step-thru. Would be nice to have some other options.
In under a week, I have already put in 100kms on my bike, I love it! Few quirks here and there, like no metric option for the display, no removable option for the screen. Would definitely recommend to others.
Excellent bike,900 klms no problems
Hi I purchased two of the cruisers in April. 1 a step thru and 1 a step over. They did take a bit of time to arrive. Basically over 6 wks. Once they did arrive assembly was very easy. About 30 minutes per bike. Watch the video on youtube it explains things well. As for the bikes themselves they are pretty great considering the cost and the quality. As an FYI I have two 2022 Volt Yukon's already and these are a bit faster, as powerful, a bit lighter and cost less to purchase. My wife and I had them out for a ride and really liked them. We both thought these bikes are amazing. Not sure on the longevity of the battery at this point as we only were out for a hour. I highly recommend the cruiser at this point.
Je suis tres satisfait de mon achat. Le vélo Cruiser Step thru est exactement selon mes attentes. Par contre, j'ai du me prendre a 4 fois pour procéder a l'achat. J'ai été obligé d'appeler Visa pour faire mon achat. Depuis, J'ai essayé de faire d'autres achats sur le site et je n'ai jamais été capable. J'ai meme essayé avec Paypal. Je voulais acheter le panier avant pour mon vélo ainsi que les miroirs pour mon vélo Cruiser Step thru. J'ai rappelé Visa et il me dise que le probleme provient de votre coté.
Merci de me donner une suite.
Alain Tremblay
And received them in May.17, 2024.Two months,,and I Still Haven't received my whole order, still missing the bike seats that we ordered with the bikes. so I don't believe my order is complete until is received my two extra seat yet. For costomer Service rate as 1 and for the bike.... 3. Also would like to know is when and if they are coming,,, but I got charged for them.🤔
I haven’t received the bike yet!
