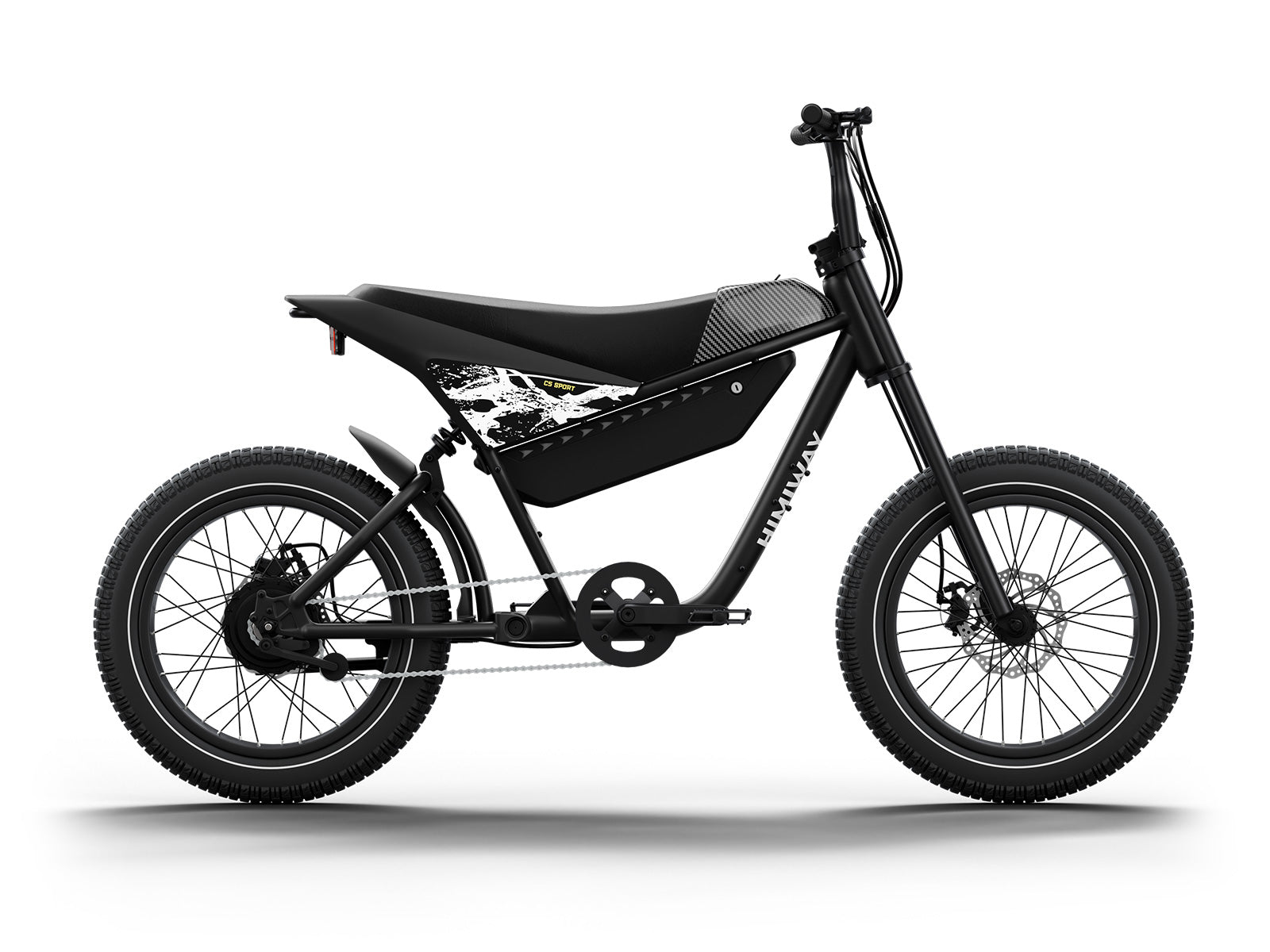

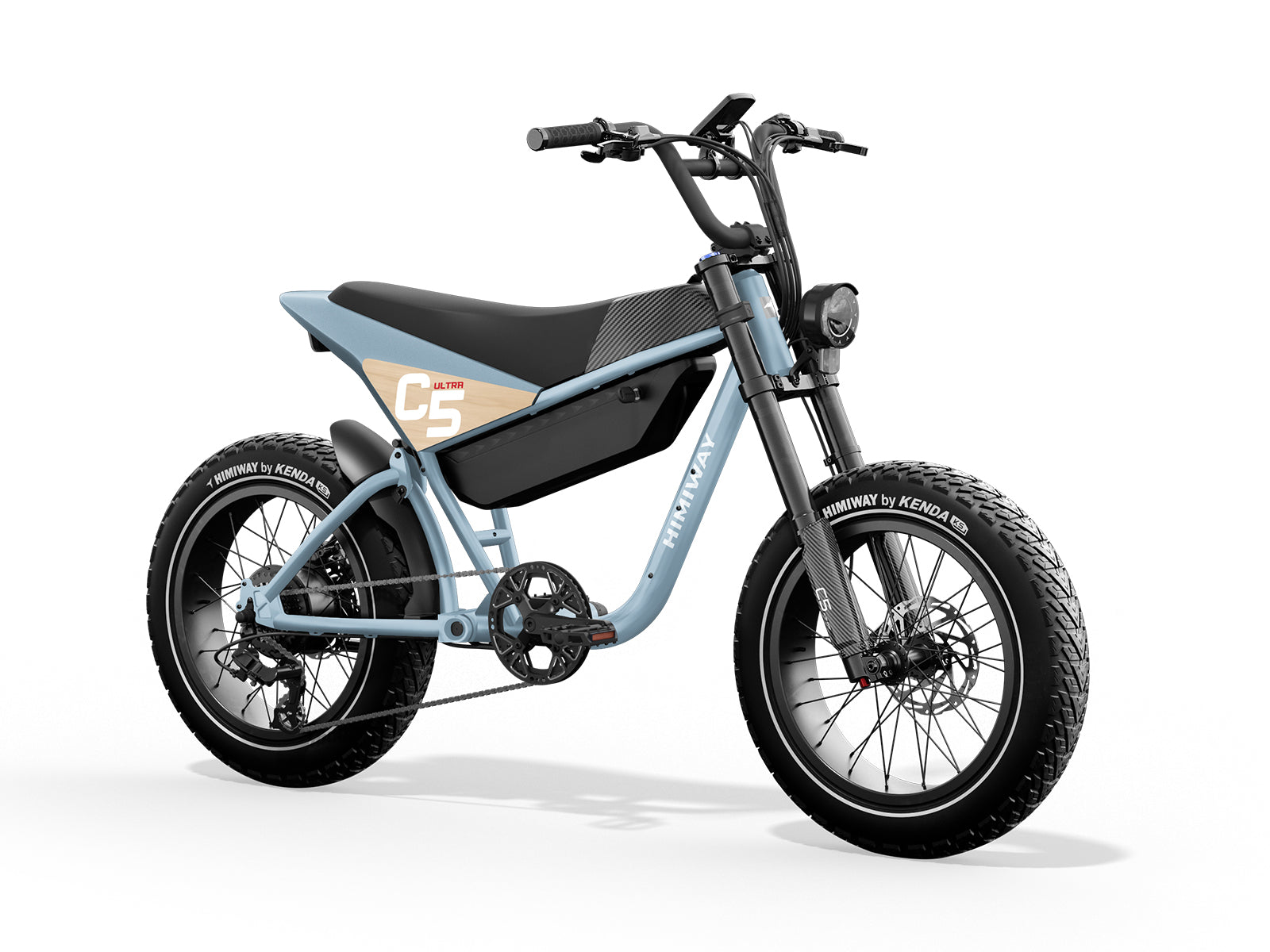

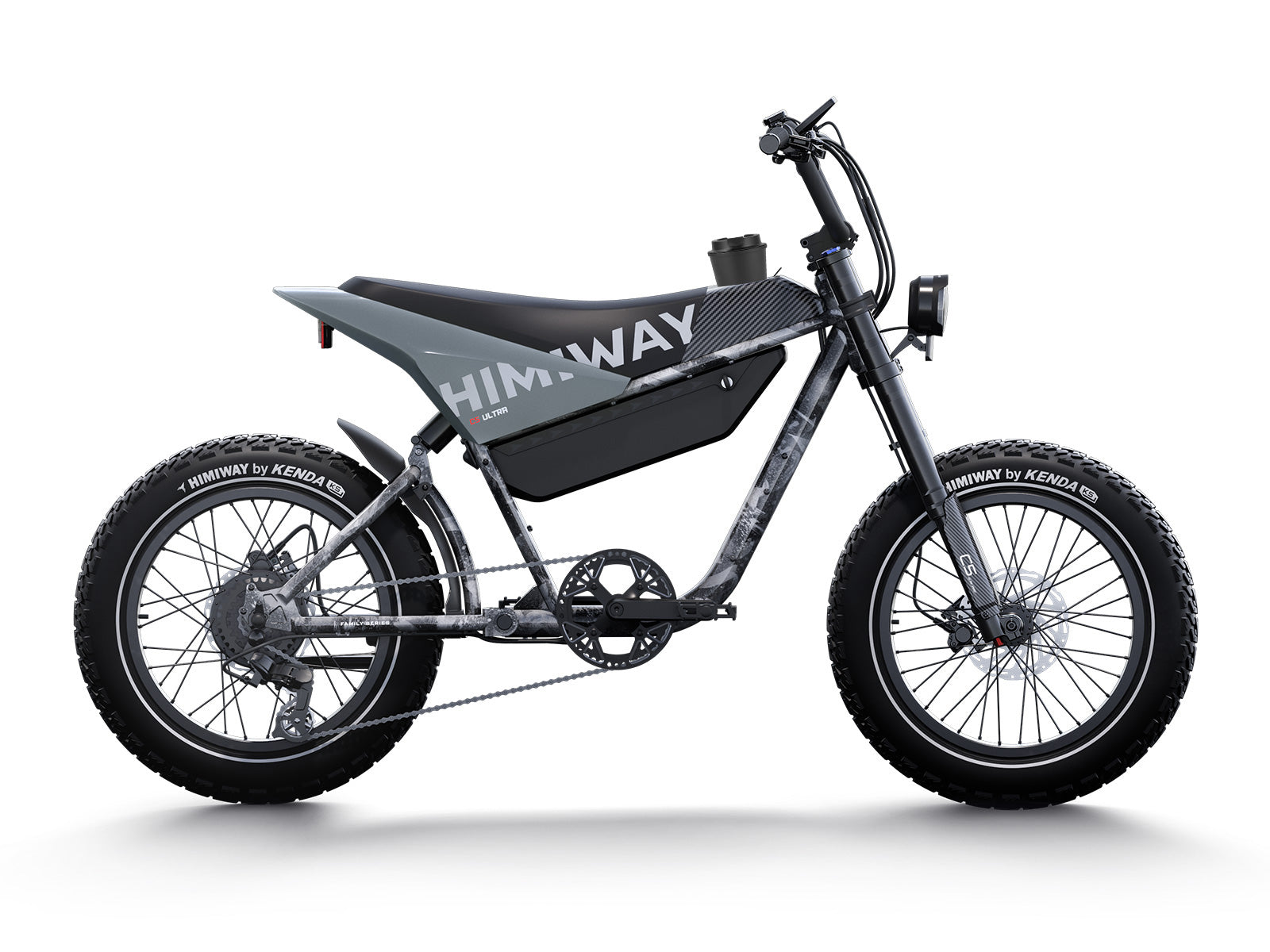

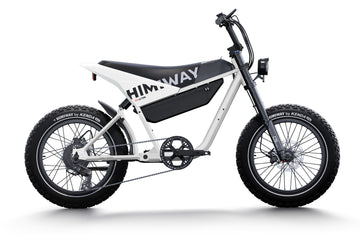

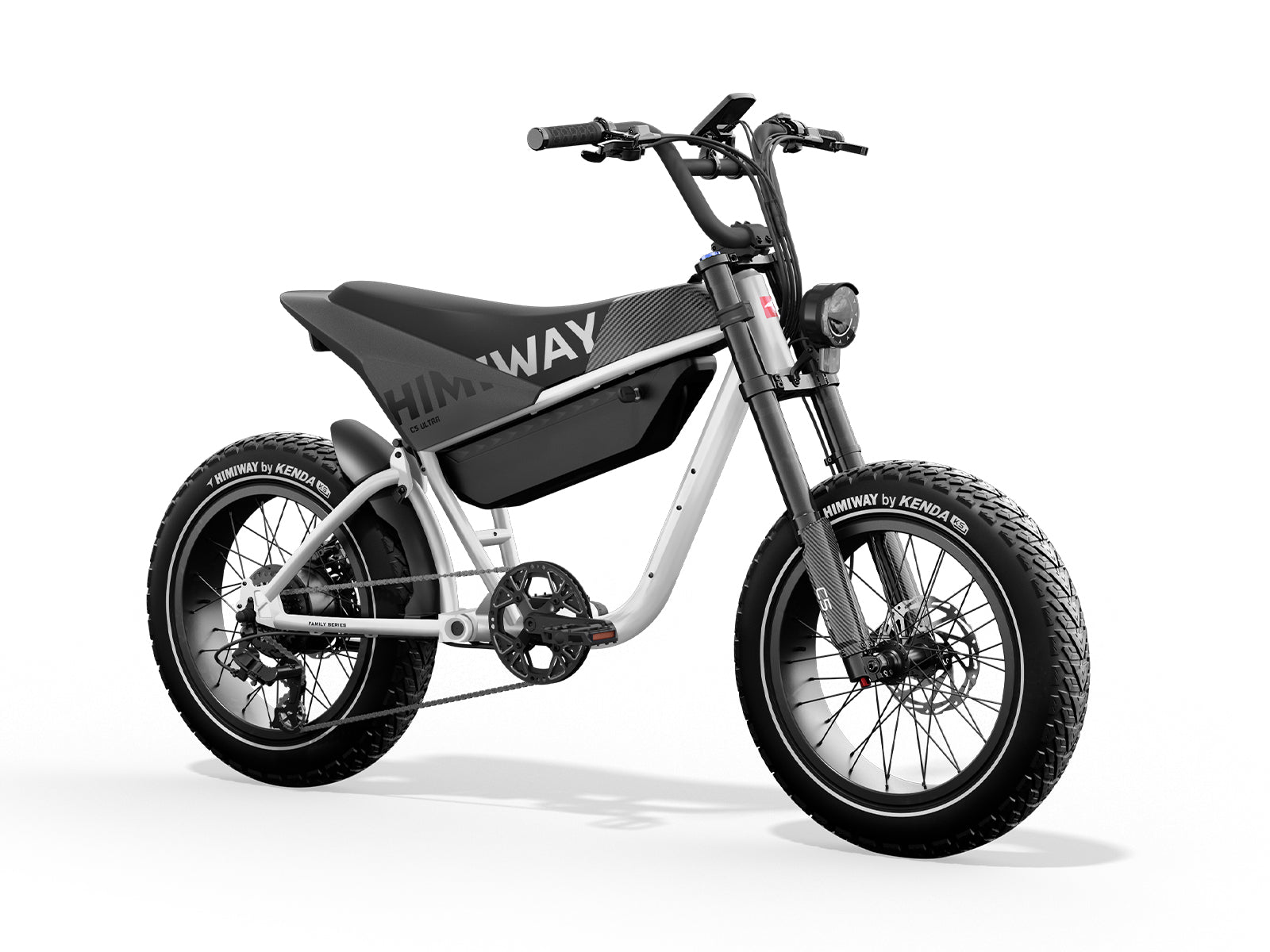

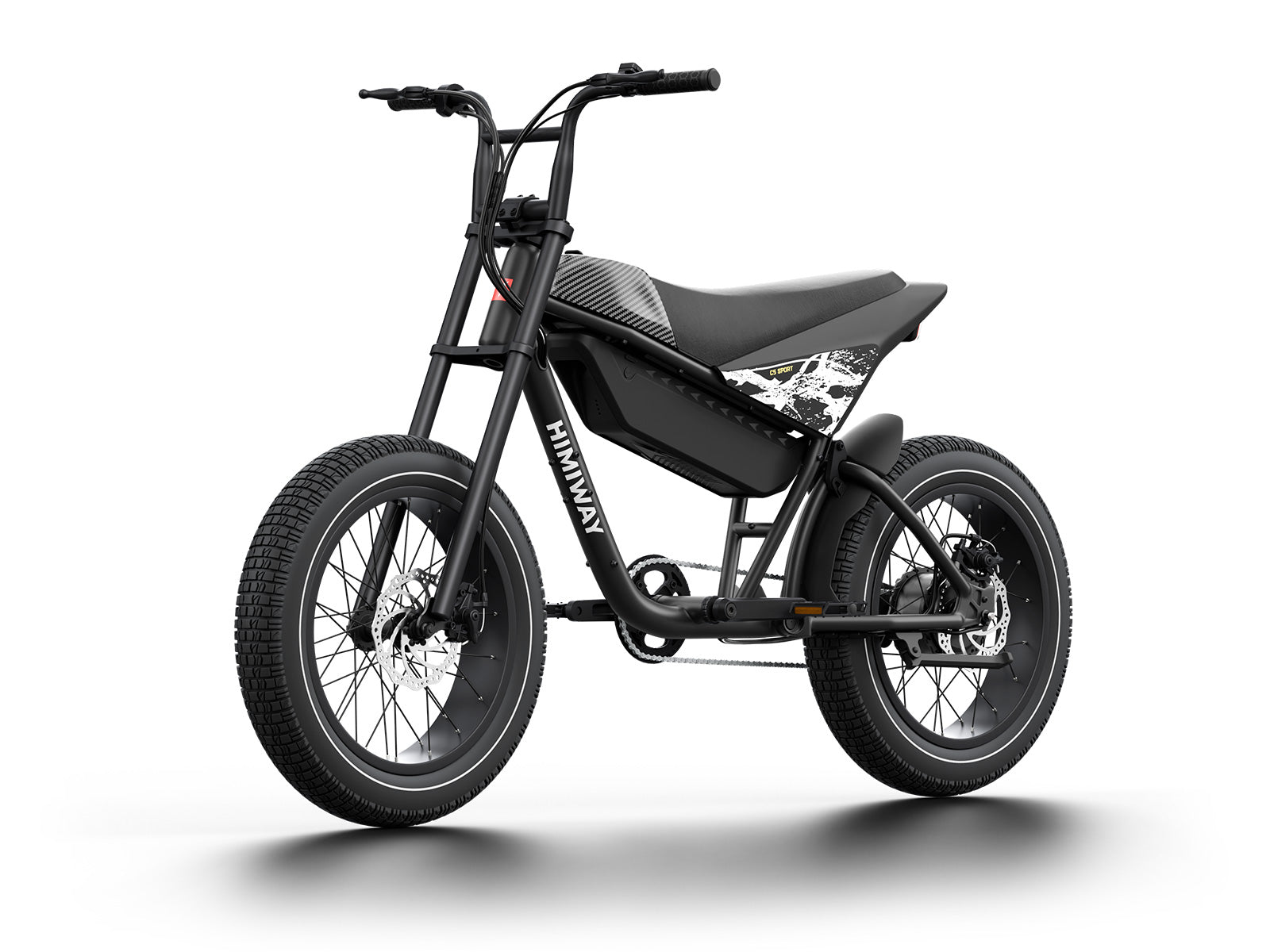

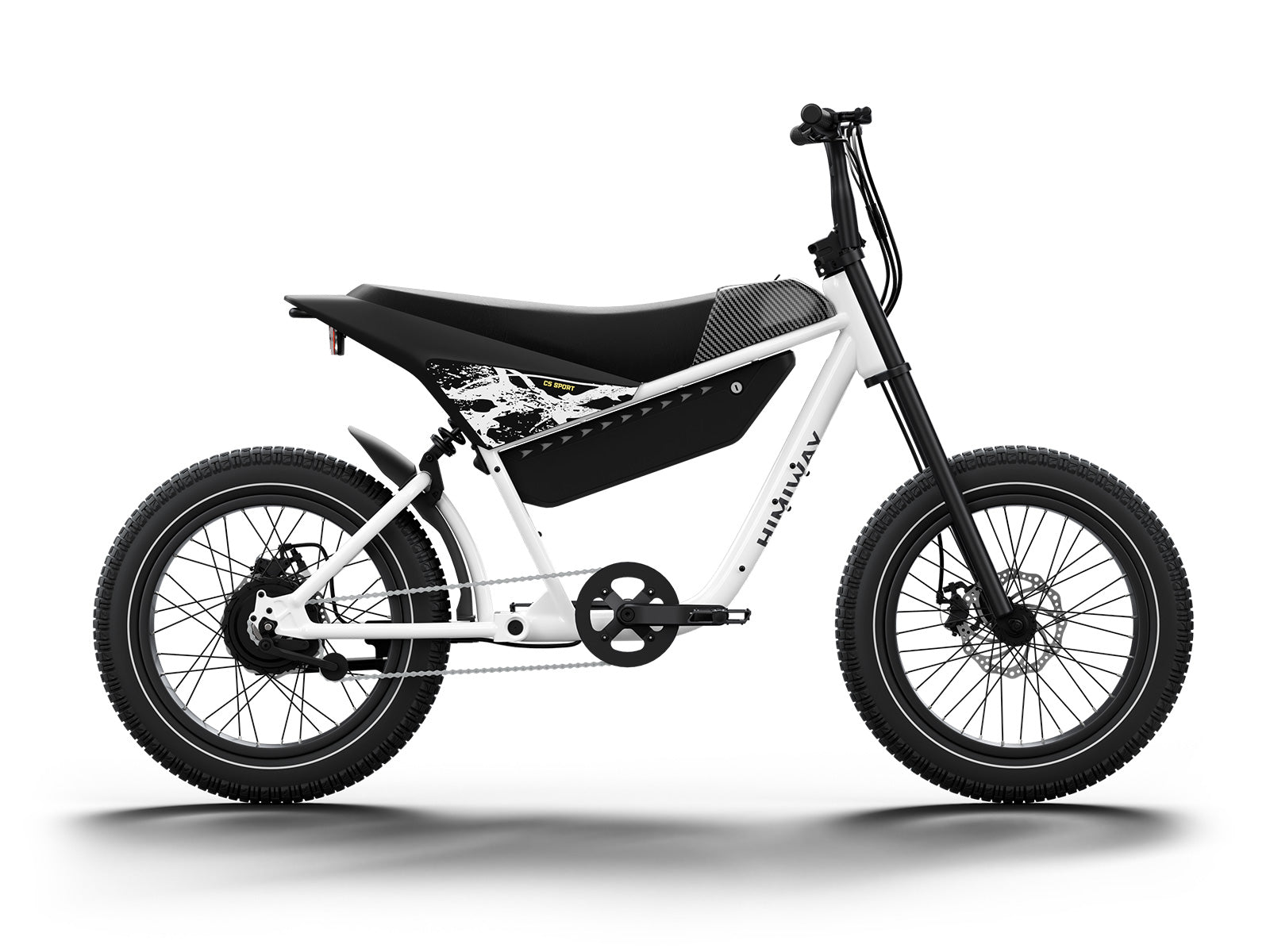

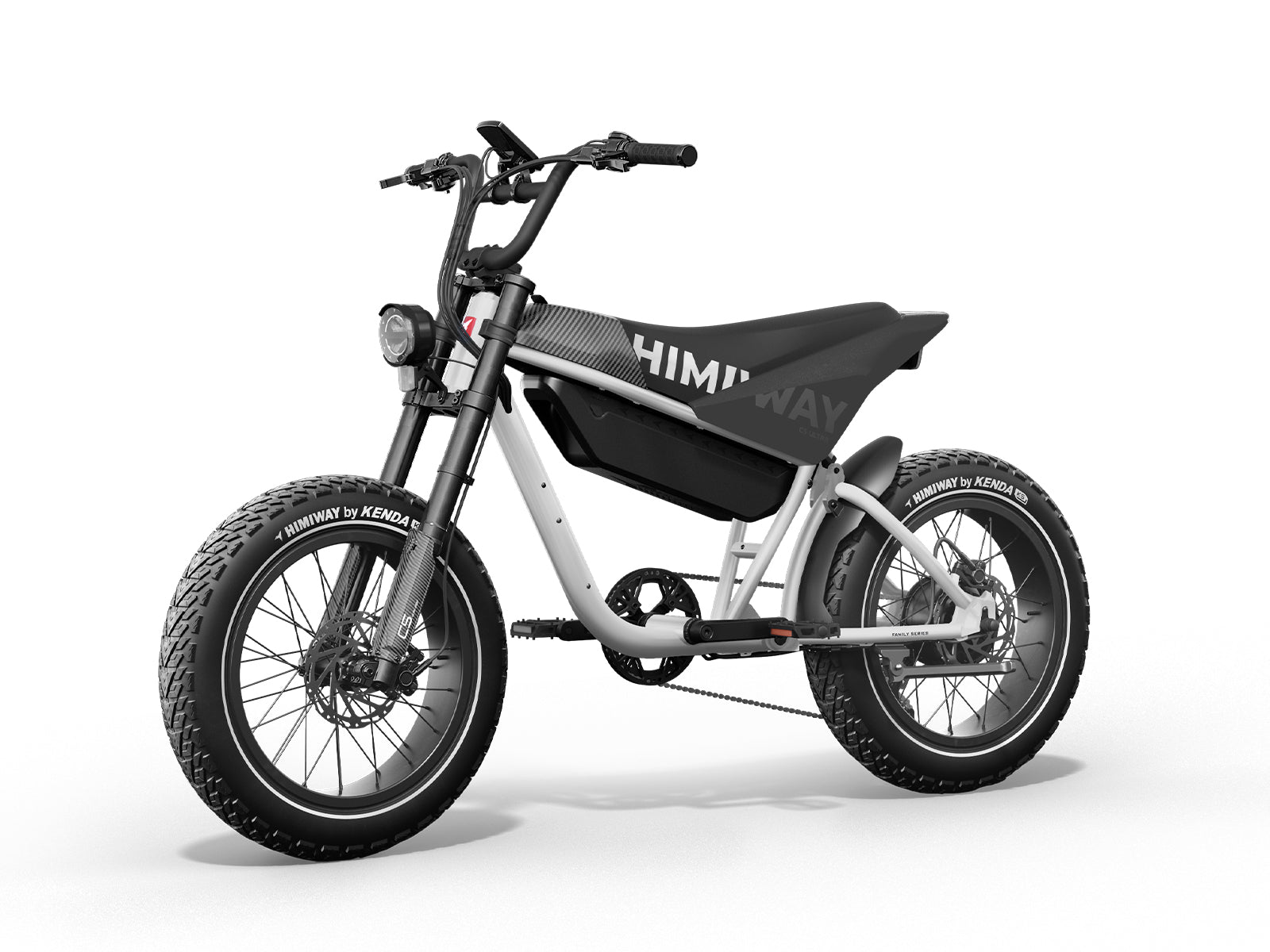

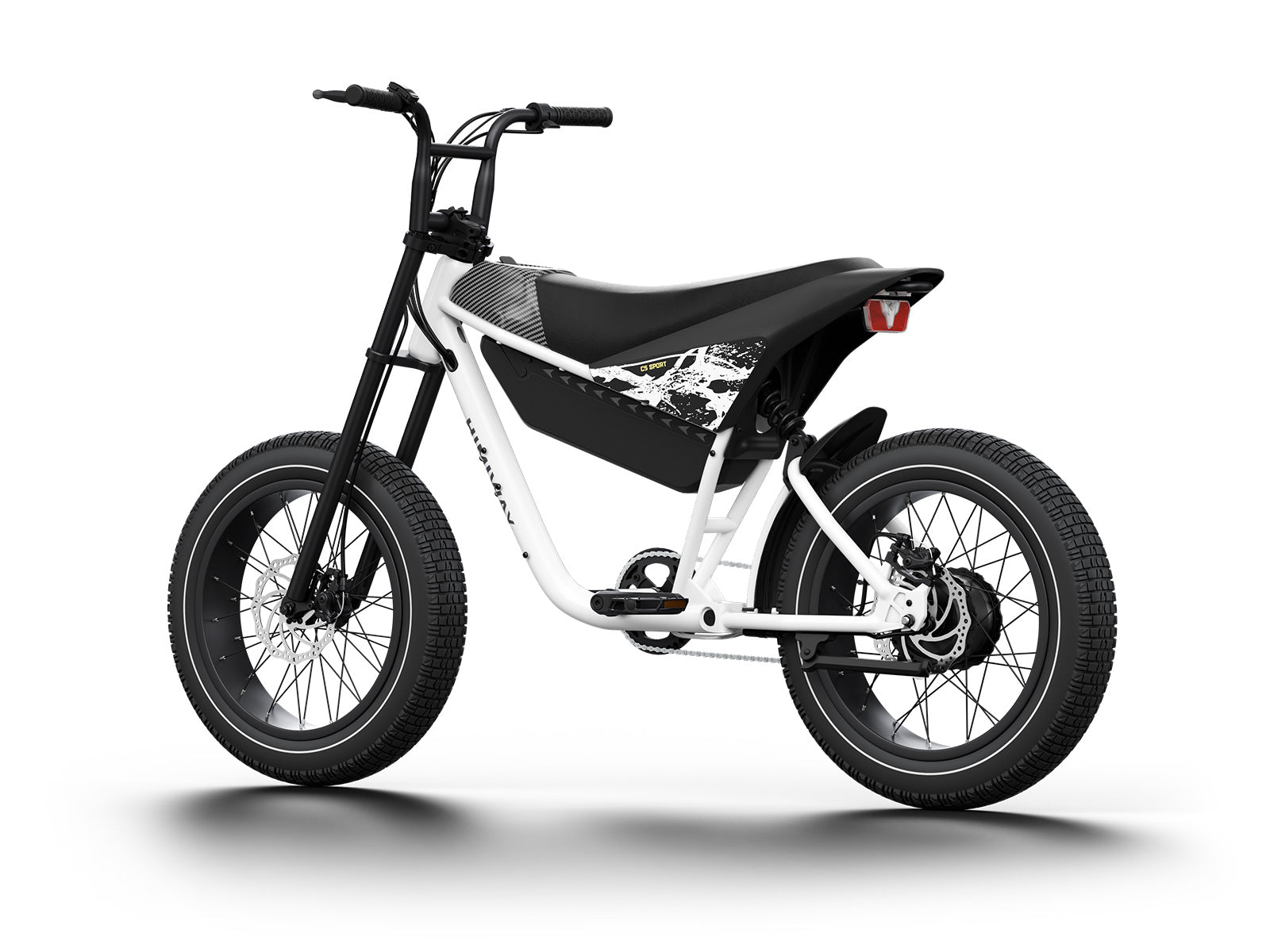

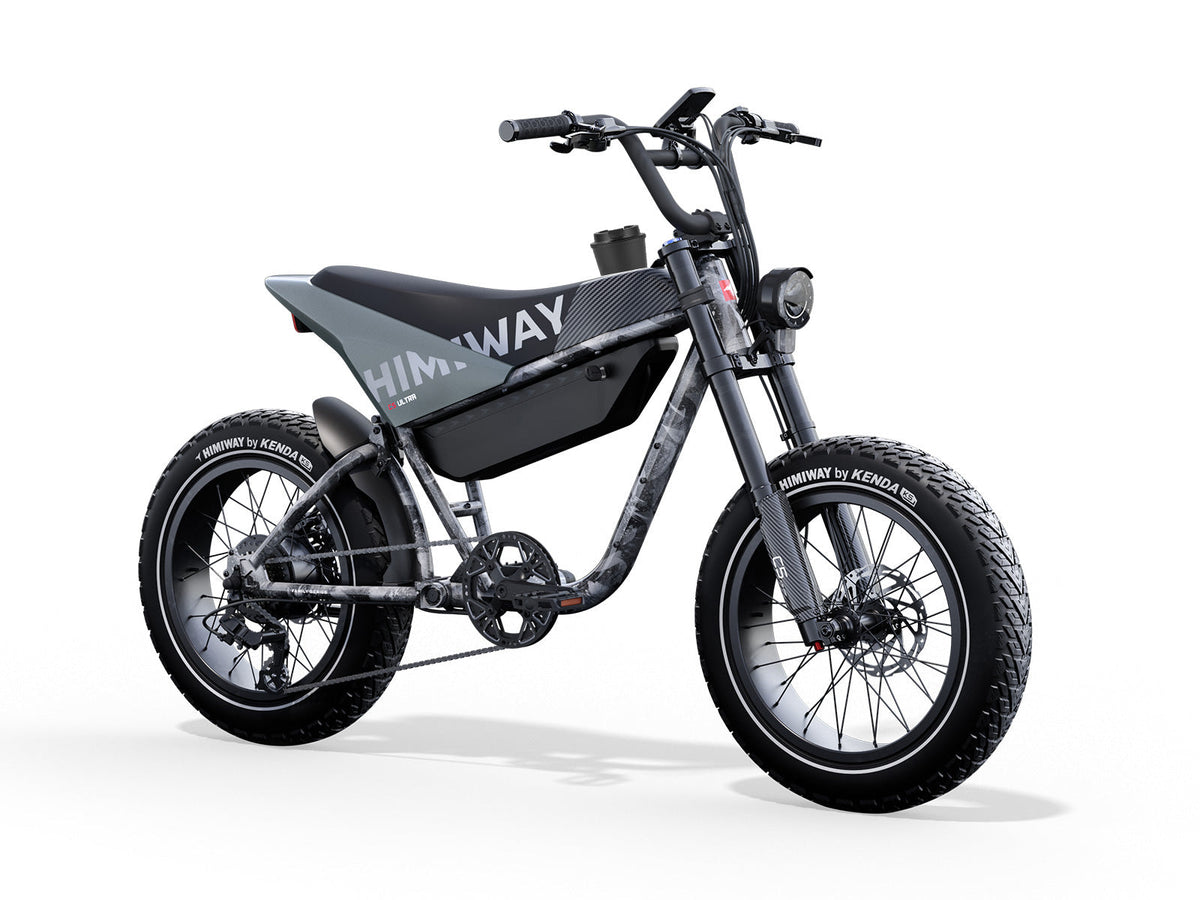

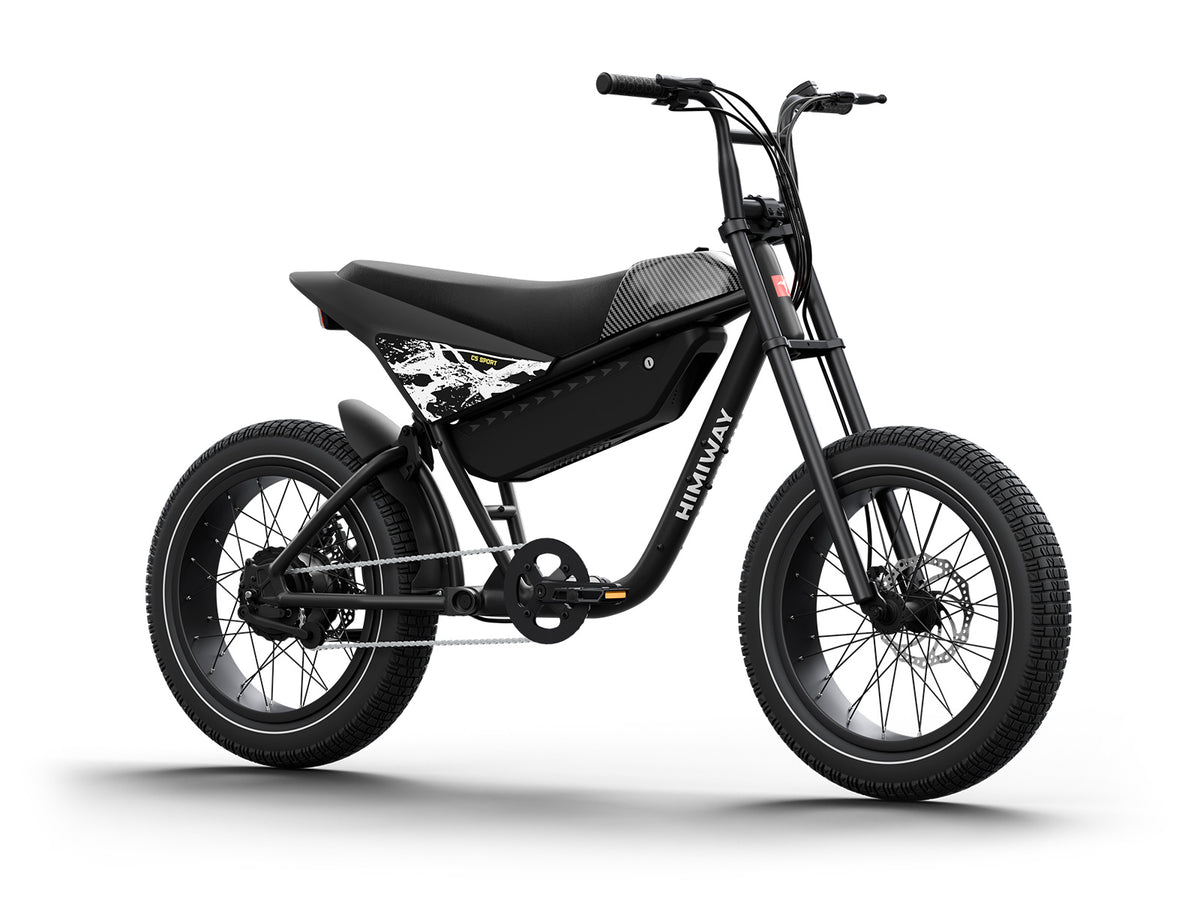

Himiway C5 | Electric Motorbike
Live Electric, Ride Bold
-
Availability: In Stock
-
Shipping Time: Within 2 Business Days
Couldn't load pickup availability
Technical Specifications
Geometry
-
A – total length70.8
-
B – handlebar height48.8
-
C – handlebar length29.1
-
D – wheelbase47
-
E – wheel diameter23.3
-
F – minimum seat height31.8
-
G – maximum seat height33
-
H – chain stay length22.5
-
I – frame stack31.9
-
K – effective top tube length29.4
-
L – head tube length6.7
-
M – head angle66.8°
-
N – standover height31.8
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H115 28.6*44*30
-
ForkDual Crown Steel Rigid ForkC5 Ultra:KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle
-
C5shockCoil Shock 180*47mm 700lb SpringC5 Ultra:EXA A5-RE 180*47mm
-
C5front wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB015F-92 3/8*12*36*135*175C5 Ultra:Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36H
-
Rear wheelRim: MD-147 20*4.0"*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor
-
TiresInnova 20x4.0 lA-2149C5 Ultra:Kenda X Himiway 20*4.0
-
BatteryLG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayHimiway LED DisplayC5 Ultra:Himiway C2 LCD Display
-
ThrottleThumb throttle
-
SensorsCadence Sensor丨Speed Sensor丨Brake Sensor
-
CranksetCrank arm: 142mm Chain ring: 38TC5 Ultra:44T BCD104 6061-T6 145mm
-
Freewheel16T Single Speed FreewheelC5 Ultra:Shimano MF-TZ500-7 14-28T
-
ChainKMC Z1eHX 120LC5 Ultra:KMC Z8.3 EPT 130L
-
Front brakeNutt JAK-8 mechanical disc brakeC5 Ultra:Tektro HD-E3520 hydraulic brake
-
Rear brakeNutt JAK-8 mechanical disc brakeC5 Ultra:Tektro HD-E3520 hydraulic brake
-
RotorsF:180mm R:180mmC5 Ultra:Tektro TR180-52 F:180mm R:180mm
Components
-
StemAlloyStem Ext:40mmC5 Ultra:3D forged alloy Ext:40mm
-
HandlebarJY-ALSMT2 W680*L211*22.2*31.8*10°C5 Ultra:YC-B086 22.2*31.8*720mm
-
Seatpost/
-
SaddleExtended seat
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'4"~6'3"
-
Weight75 lb.C5 Ultra:88 lb.
-
Max. system weight330 lb.
Geometry
-
A – total length70.8
-
B – handlebar height48.8
-
C – handlebar length29.1
-
D – wheelbase47
-
E – wheel diameter23.3
-
F – minimum seat height31.8
-
G – maximum seat height33
-
H – chain stay length22.5
-
I – frame stack31.9
-
K – effective top tube length29.4
-
L – head tube length6.7
-
M – head angle66.8°
-
N – standover height31.8
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H114 28.6*44*30
-
ForkKKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axleC5 Sports:Dual Crown Steel Rigid Fork
-
ShockEXA A5-RE 180*47mmC5 Sports:Coil Shock 180*47mm 700lb Spring
-
Front wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36HC5 Sports:Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB015F-92 3/8*12*36*135*175
-
Rear wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 126mm/127mm Hub: 48v 750w Himiway Hub Motor
-
TiresKenda X Himiway 20*4.0C5 Sports:Innova 20x4.0 lA-2149
-
BatteryLG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayHimiway C2 LCD DisplayC5 Sports:Himiway LED Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
Crankset44T BCD104 6061-T6 145mmC5 Sports:Crank arm: 142mm Chain ring: 38T
-
FreewheelShimano MF-TZ500-7 14-28TC5 Sports:16T Single Speed Freewheel
-
ChainKMC Z8.3 EPT 130LC5 Sports:KMC Z1eHX 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brakeC5 Sports:Nutt JAK-8 mechanical disc brake
-
Rear brakeTektro HD-E3520 hydraulic brakeC5 Sports:Nutt JAK-8 mechanical disc brake
-
RotorsTektro TR180-52 F:180mm R:180mmC5 Sports:F:180mm R:180mm
Components
-
Stem3D forged alloy Ext:40mmC5 Sports:AlloyStem Ext:40mm
-
HandlebarYC-B086 22.2*31.8*720mmC5 Sports:JY-ALSMT2 W680*L211*22.2*31.8*10°
-
SaddleExtended seat
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'4"~6'3"
-
Weight88 lb.C5 Sports:75 lb.
-
Max. system weight330 lb.
-
20+ Mph
Top Speed The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
750 W
Geared Hub Motor
-
Hydraulic
Brakes
-
Torque
Sensor
-
860 Wh
Samsung/LG Battery
-
7-Speed
Shimano Derailleur
-
330 lbs
Payload Capacity
- 1 - The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
- 2 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.

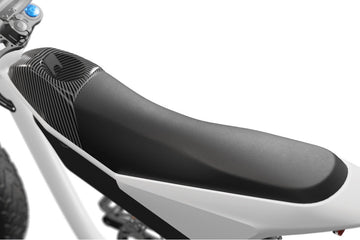

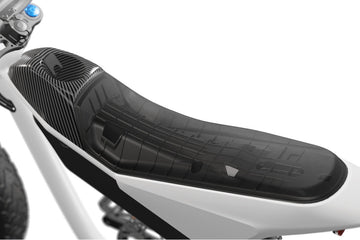

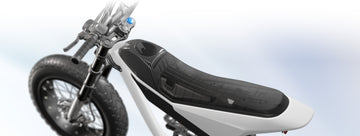

Comfort
SaddleRobust
BuildExperience tailored comfort with our extended saddle, designed to accommodate riders of all heights for the perfect posture. Enjoy a flexible, cozy ride on every journey.
The C5 sets the standard for electric motorbike with its exceptionally sturdy frame.

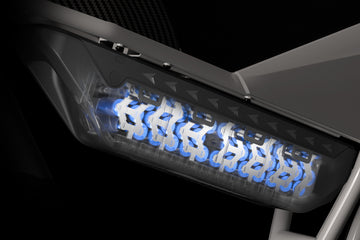

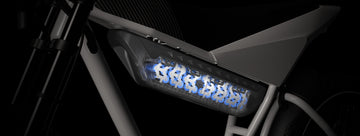

960Wh High-Efficiency Battery
960Wh
48V 20AhBreathing
LightEquipped with a powerful LG 48V 20Ah battery, the Himiway C5 delivers an impressive 80-mile range per charge. Experience the thrill of the ride, conquer city streets, and embrace endless exploration.
-
80 %
Capacity after 1000 charges -
20 %
Increased range

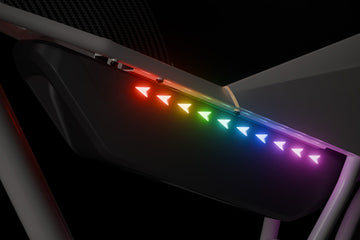

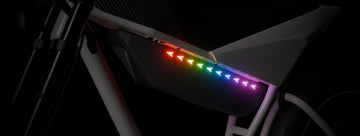

Featuring a Breathing Light design, the Himiway C5's ambient lights gently pulse, capturing the rhythm of the city and setting the trend for urban night rides.

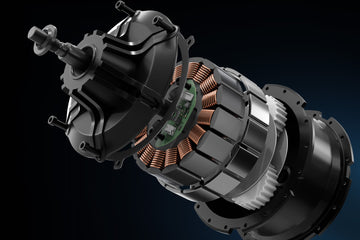

750W Brushless Geared Hub Motor
Experience superior performance with the Himiway C5's 750W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.
-
750W
Motor Power -
86Nm
Max Motor Torque

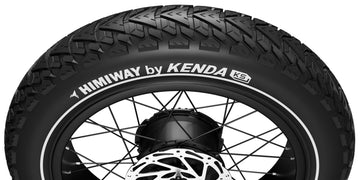

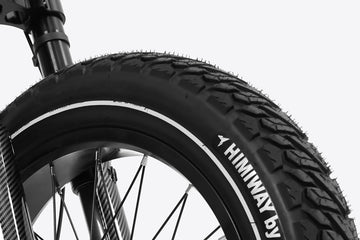

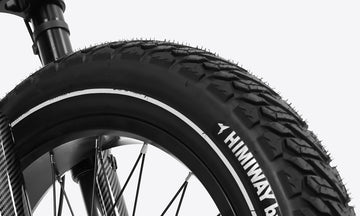

The Himiway X Kenda Tire
Fat tire
All Terrain
Experience superior stability and grip with our 20"x4" Kenda K-shield fat tires, designed for peak performance on any surface and in any weather, ensuring a safe and seamless ride.
Effortlessly glide over rocks, sand, or gravel. The C5 ensures stability on any surface, from beaches to grasslands. No terrain is too tough.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road

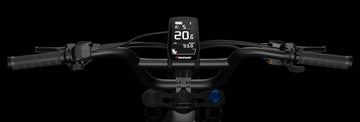

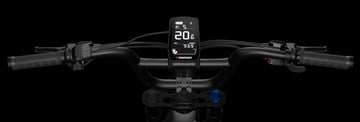

Enjoy Effortless Control and Seamless Riding Comfort
LCD
DisplayControl
HandleThe Backlit LCD display offers essential ride data, including speed, distance, and battery level, at a quick glance
-
USB Charging
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set

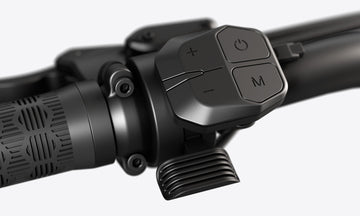

Upgraded with larger buttons, the Control Handle offers enhanced comfort and ease of use
-
Thumb throttle
-
Switch
-
Shimano gearbox

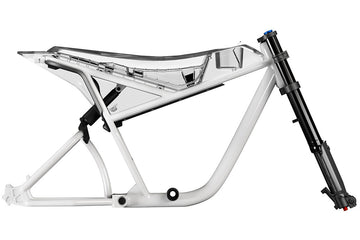

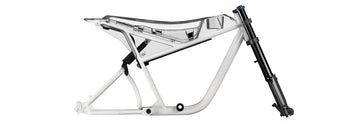

Double the Frame Thickness, Double the Payload Capacity
Aerospace-grade
Aluminum FrameFull
SuspensionCrafted from 6061 aluminum alloy, our frames combine lightweight resilience with exceptional durability. Resistant to corrosion, they guarantee enduring performance across any terrain
-
330 lbs
Payload Capacity
-
88 lb.
Weight (with battery)
-
1 Only
Each Ink Frame Unique

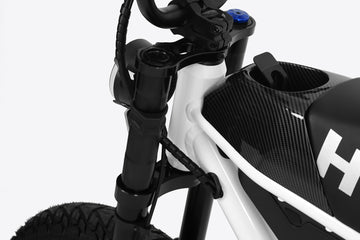

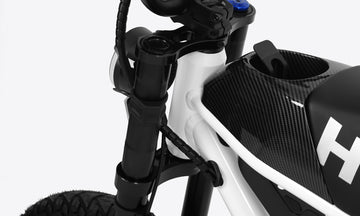

Enjoy a bump-free ride with the C5's full suspension, boasting a 140mm inverted front fork and a 47mm adjustable rear shock, ensuring comfort on rough terrains.

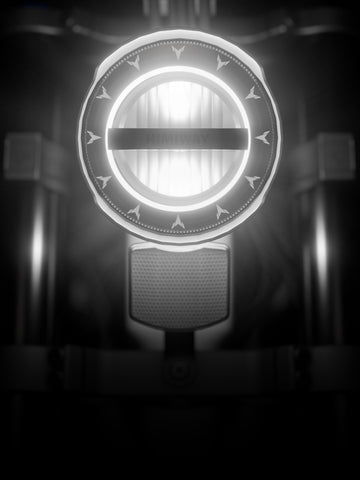

48V High-brightness Front Light
Enhances visibility and safety, illuminating the path ahead to better reveal unforeseen road conditions

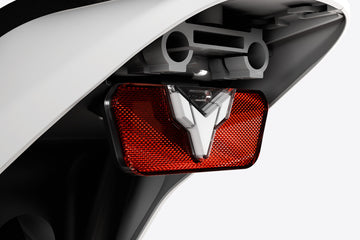

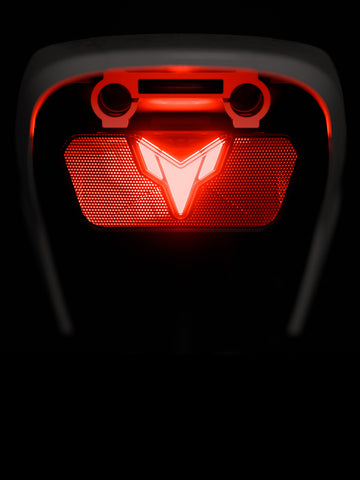

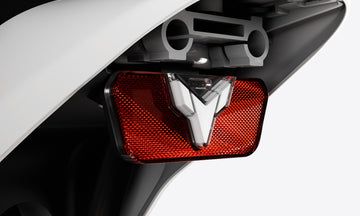

Auto-Illuminating Brake Light
Frame-integrated taillights illuminate automatically upon braking, enhancing safety and visibility for night riding.

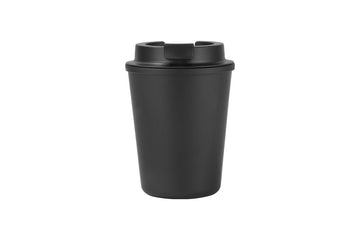

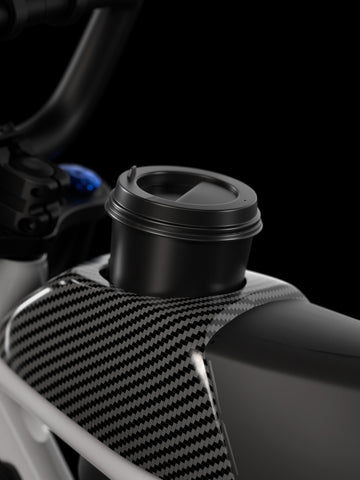

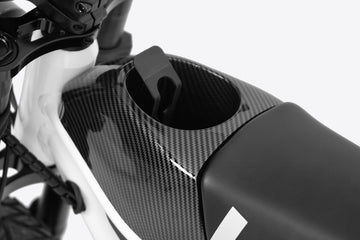

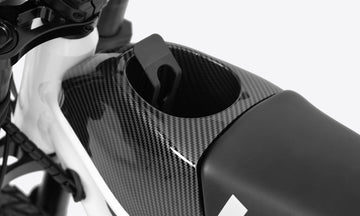

Coffee Cup Holder
Convenience meets style for your on-the-go refreshment needs.

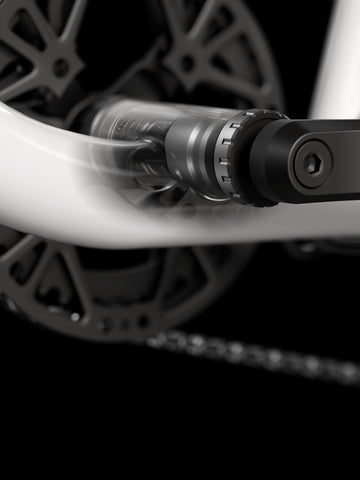

Torque Sensor
Provides real-time electric assist adjustment for efficient, smooth cycling, optimizing energy use and improving safety and stability.
Refined in Every Detail
Engineered for peak performance, supreme comfort, and classic style, the C5 redefines urban style.

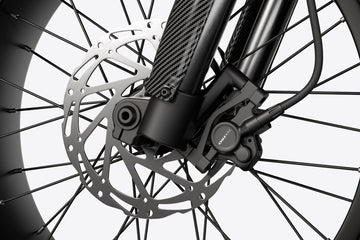

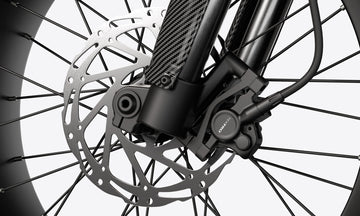

Hydraulic Disc Brakes
Integrated Tail Light
Thumb Throttle
Reflective Sidewall

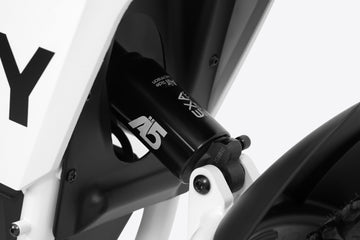

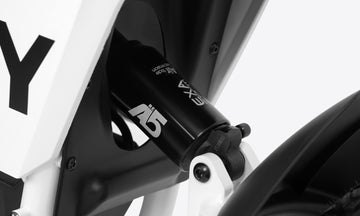

Rear Shock
MTB-Grade Front Fork

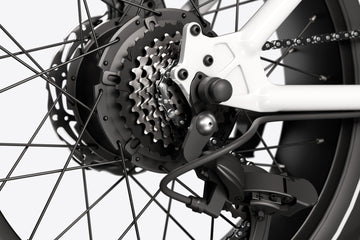

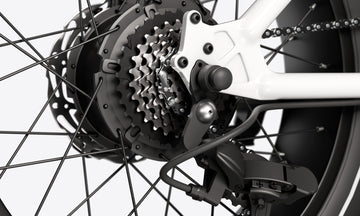

Shimano 7 Speed Gear Shift System
Coffee Cup Holder
"The C5 represents a convergence of style and practicality, catering to the diverse needs of urban dwellers and adventure enthusiasts alike."
"Providing the muscle for the Himiway C5 is a 750W brushless, geared hub motor, which is powered by a whopping 960Wh battery. Considering most riders are likely to spend their time using the throttle instead of the pedals, that was a terrific choice."
"The Himiway C5 is a great option for commuting, but its rugged build, high powered motor and long range mean that it’s ready for off-road exploring and adventure as well."
"The first time I took the Himiway C5 for a spin, I instantly noted that the soft and extended saddle provided fantastic support."
Technical Specifications
Geometry
-
A – total length70.8
-
B – handlebar height48.8
-
C – handlebar length29.1
-
D – wheelbase47
-
E – wheel diameter23.3
-
F – minimum seat height31.8
-
G – maximum seat height33
-
H – chain stay length22.5
-
I – frame stack31.9
-
K – effective top tube length29.4
-
L – head tube length6.7
-
M – head angle66.8°
-
N – standover height31.8
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H115 28.6*44*30
-
ForkDual Crown Steel Rigid ForkC5 Ultra:KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle
-
C5shockCoil Shock 180*47mm 700lb SpringC5 Ultra:EXA A5-RE 180*47mm
-
C5front wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB015F-92 3/8*12*36*135*175C5 Ultra:Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36H
-
Rear wheelRim: MD-147 20*4.0"*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor
-
TiresInnova 20x4.0 lA-2149C5 Ultra:Kenda X Himiway 20*4.0
-
BatteryLG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayHimiway LED DisplayC5 Ultra:Himiway C2 LCD Display
-
ThrottleThumb throttle
-
SensorsCadence Sensor丨Speed Sensor丨Brake Sensor
-
CranksetCrank arm: 142mm Chain ring: 38TC5 Ultra:44T BCD104 6061-T6 145mm
-
Freewheel16T Single Speed FreewheelC5 Ultra:Shimano MF-TZ500-7 14-28T
-
ChainKMC Z1eHX 120LC5 Ultra:KMC Z8.3 EPT 130L
-
Front brakeNutt JAK-8 mechanical disc brakeC5 Ultra:Tektro HD-E3520 hydraulic brake
-
Rear brakeNutt JAK-8 mechanical disc brakeC5 Ultra:Tektro HD-E3520 hydraulic brake
-
RotorsF:180mm R:180mmC5 Ultra:Tektro TR180-52 F:180mm R:180mm
Components
-
StemAlloyStem Ext:40mmC5 Ultra:3D forged alloy Ext:40mm
-
HandlebarJY-ALSMT2 W680*L211*22.2*31.8*10°C5 Ultra:YC-B086 22.2*31.8*720mm
-
Seatpost/
-
SaddleExtended seat
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'4"~6'3"
-
Weight75 lb.C5 Ultra:88 lb.
-
Max. system weight330 lb.
Geometry
-
A – total length70.8
-
B – handlebar height48.8
-
C – handlebar length29.1
-
D – wheelbase47
-
E – wheel diameter23.3
-
F – minimum seat height31.8
-
G – maximum seat height33
-
H – chain stay length22.5
-
I – frame stack31.9
-
K – effective top tube length29.4
-
L – head tube length6.7
-
M – head angle66.8°
-
N – standover height31.8
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H114 28.6*44*30
-
ForkKKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axleC5 Sports:Dual Crown Steel Rigid Fork
-
ShockEXA A5-RE 180*47mmC5 Sports:Coil Shock 180*47mm 700lb Spring
-
Front wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB016F-92-T 15*135MM 12G*36HC5 Sports:Rim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 171mm/173mm Hub: MB015F-92 3/8*12*36*135*175
-
Rear wheelRim: MD-147 20*4.0"*36H*12G A/V Spoke: 12G 126mm/127mm Hub: 48v 750w Himiway Hub Motor
-
TiresKenda X Himiway 20*4.0C5 Sports:Innova 20x4.0 lA-2149
-
BatteryLG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayHimiway C2 LCD DisplayC5 Sports:Himiway LED Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
Crankset44T BCD104 6061-T6 145mmC5 Sports:Crank arm: 142mm Chain ring: 38T
-
FreewheelShimano MF-TZ500-7 14-28TC5 Sports:16T Single Speed Freewheel
-
ChainKMC Z8.3 EPT 130LC5 Sports:KMC Z1eHX 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brakeC5 Sports:Nutt JAK-8 mechanical disc brake
-
Rear brakeTektro HD-E3520 hydraulic brakeC5 Sports:Nutt JAK-8 mechanical disc brake
-
RotorsTektro TR180-52 F:180mm R:180mmC5 Sports:F:180mm R:180mm
Components
-
Stem3D forged alloy Ext:40mmC5 Sports:AlloyStem Ext:40mm
-
HandlebarYC-B086 22.2*31.8*720mmC5 Sports:JY-ALSMT2 W680*L211*22.2*31.8*10°
-
SaddleExtended seat
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'4"~6'3"
-
Weight88 lb.C5 Sports:75 lb.
-
Max. system weight330 lb.
Reviews
The seat, the seat… is way to low for pedaling. I’m 5’7 and it is really inconfortable. I love everything else of the bike, material, the way it is assemble, the look, the drive itself is smooth. I had to adjust the rear suspension that wqs completey flat. But really the bike is made for people around 5”4 and else.
If Himiway have an idea to add somethinf to adjust it like a clip on to make it higher.
I received it today and did a 10km with it. Everything is perfect, material, motor, seat.
There is one major thing that remove a star you cannot adjust the seat and that make the knee hurt . Im only 5’7 and its too small for me…
