Full Suspension
Travel F:90mm R:100mm
-
Torque / Cadence
2 Riding Experiences
-
750W 90Nm
Geared Hub Motor
-
400 lb.
Payload Capacity Not recommended for riders over 120 kg (265 lbs).
-
28 Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
20x4 "
Kenda Fat Tire
- 1 - Not recommended for riders over 120 kg (265 lbs).
- 2 - Reach speeds of up to 20 mph, No pedaling required.

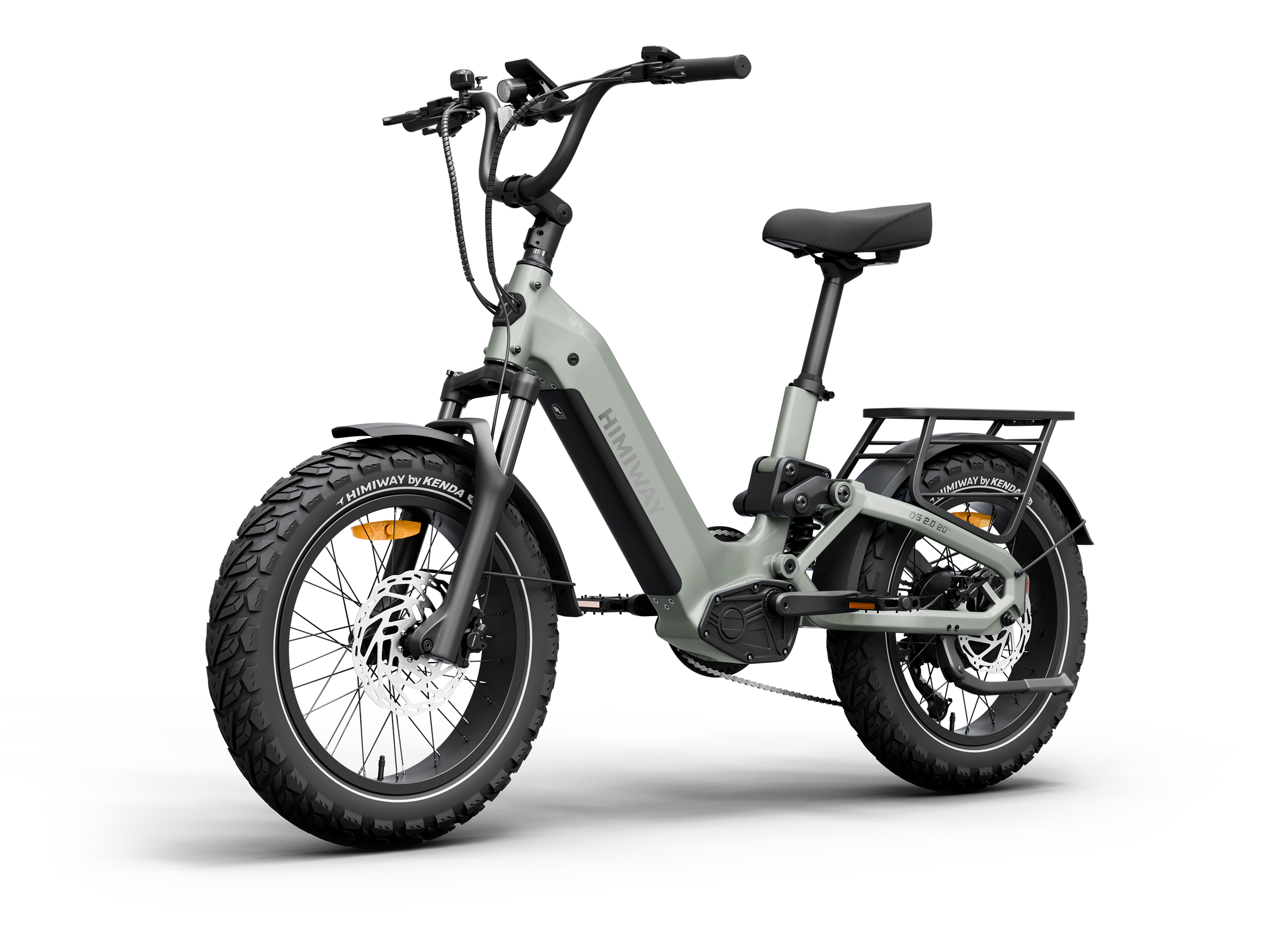

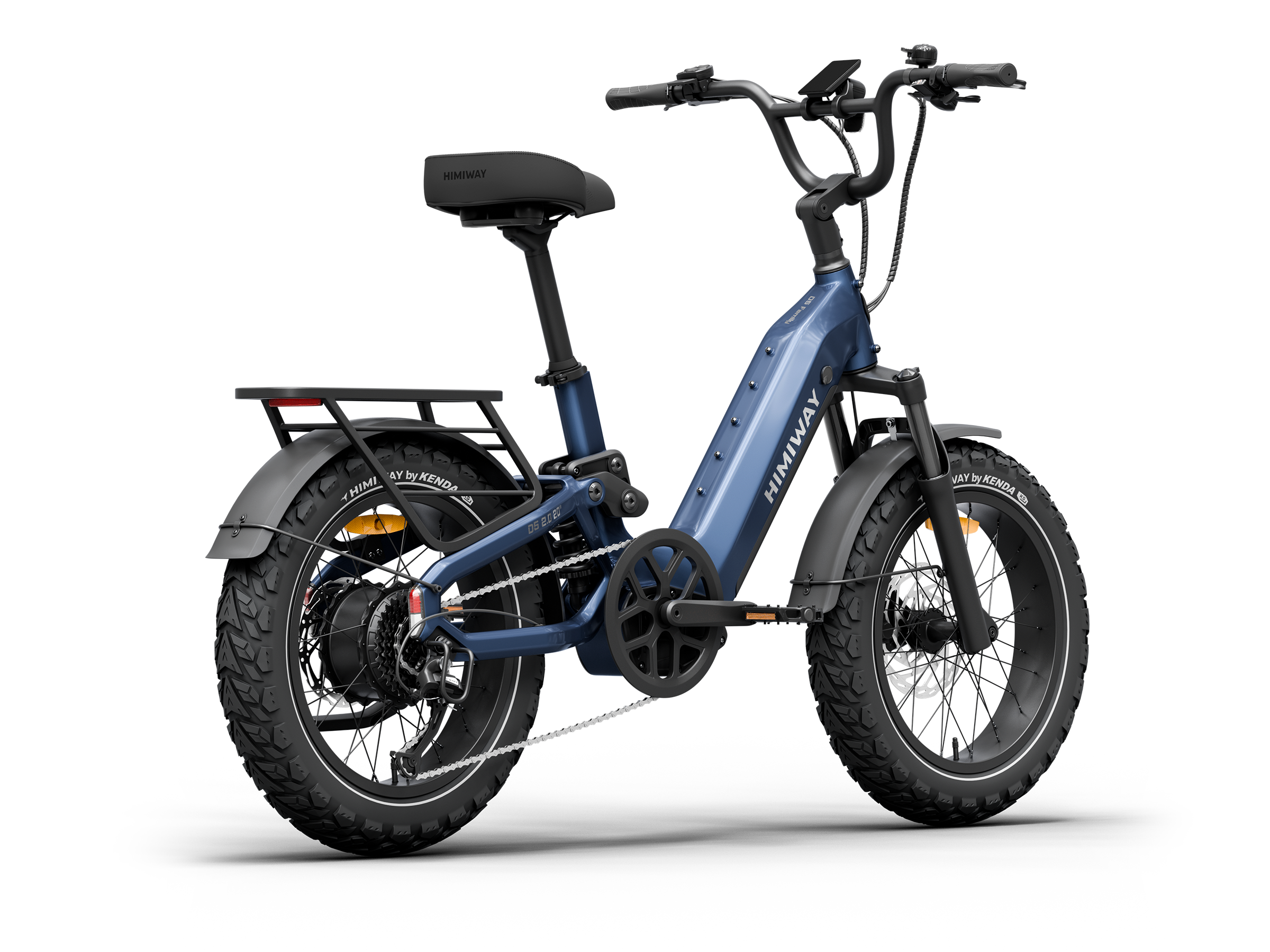

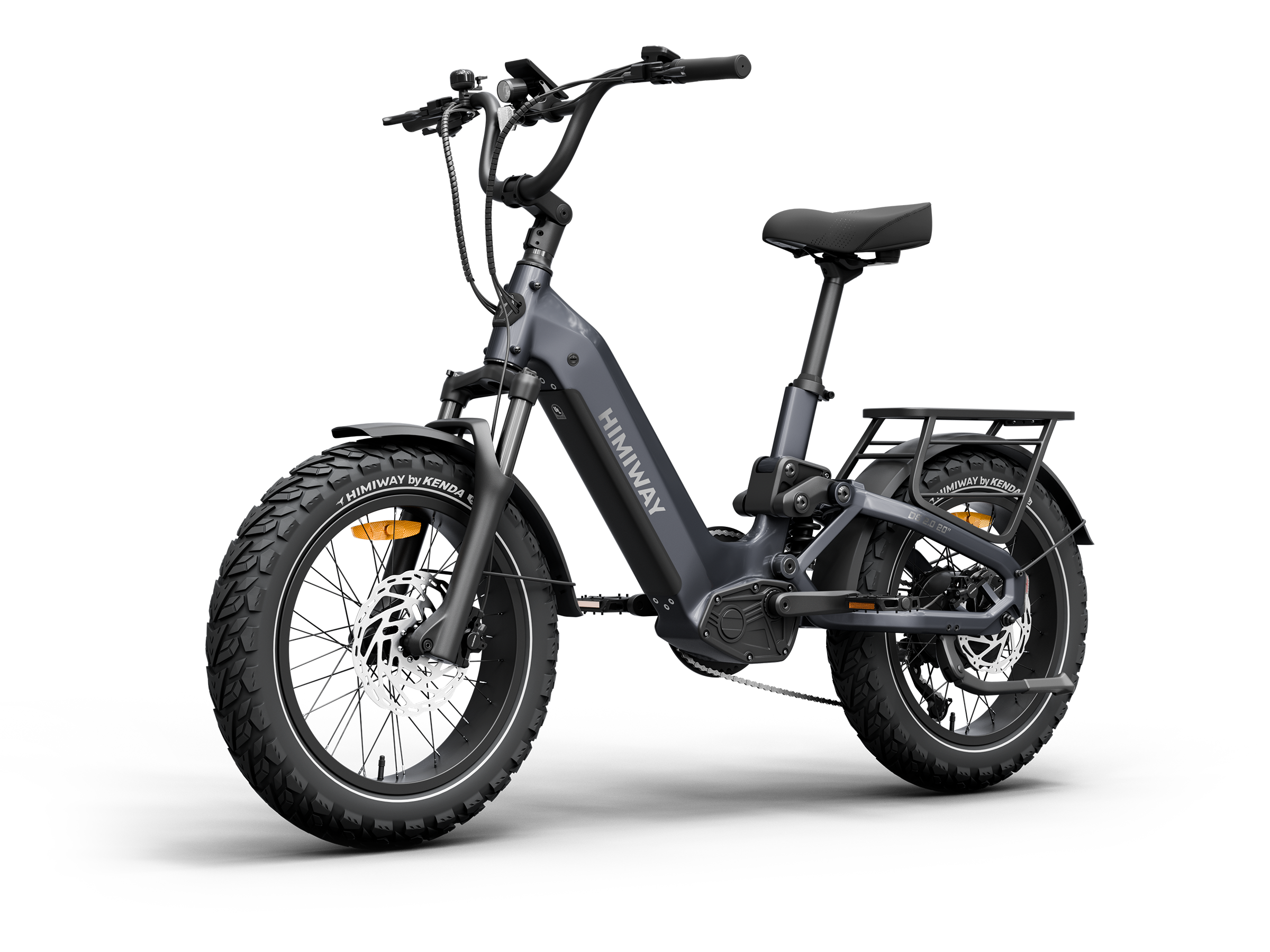

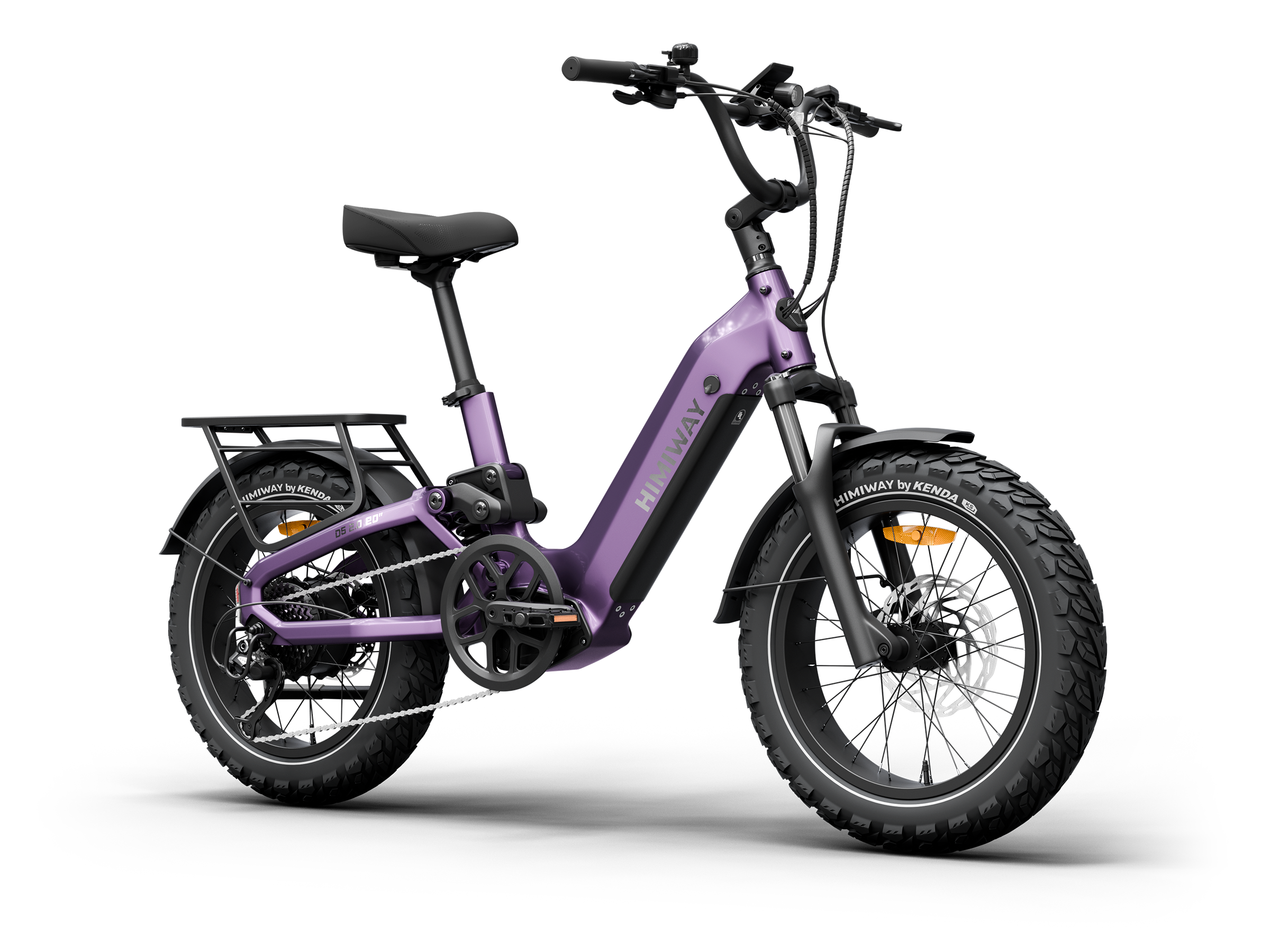

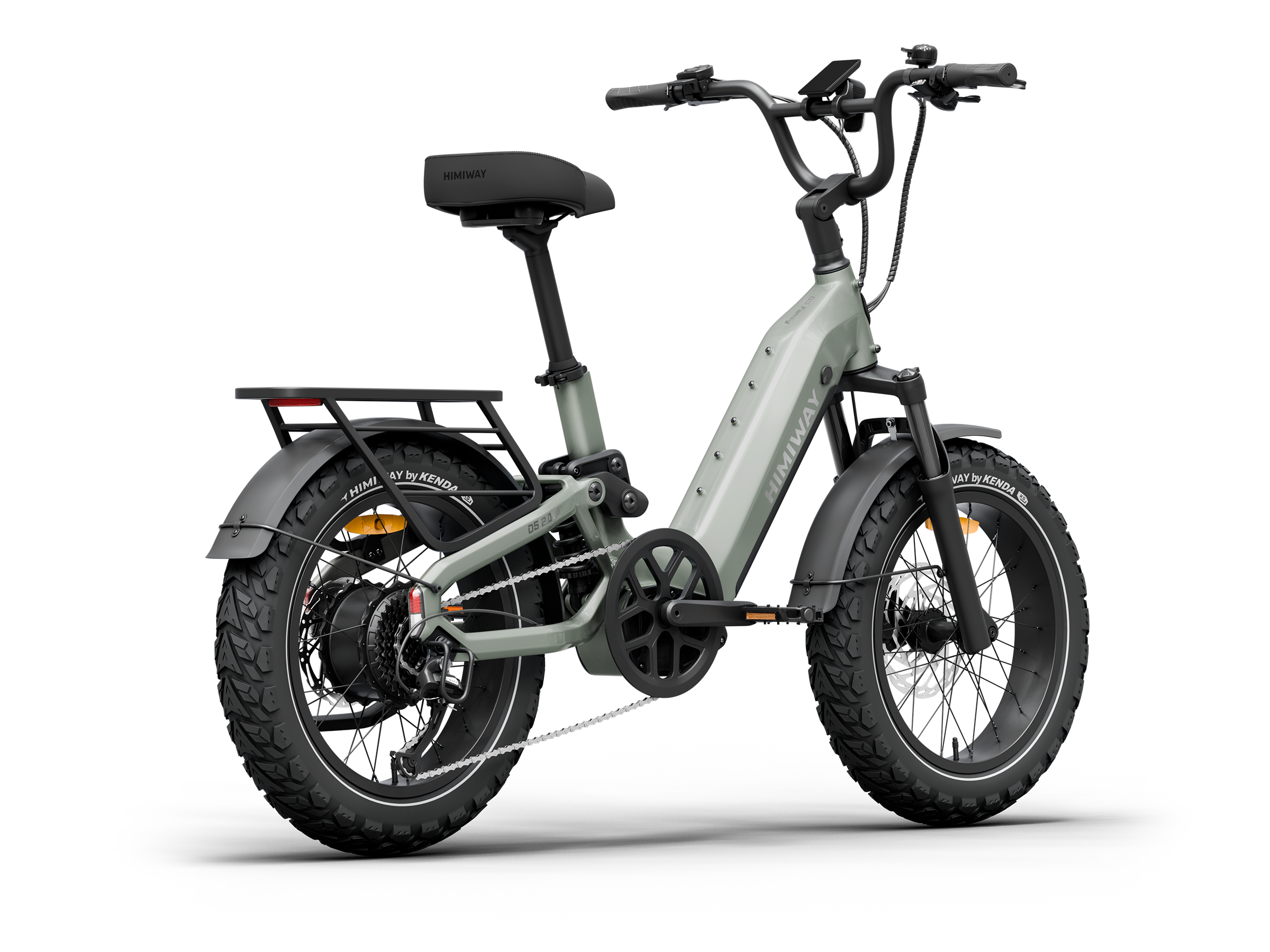

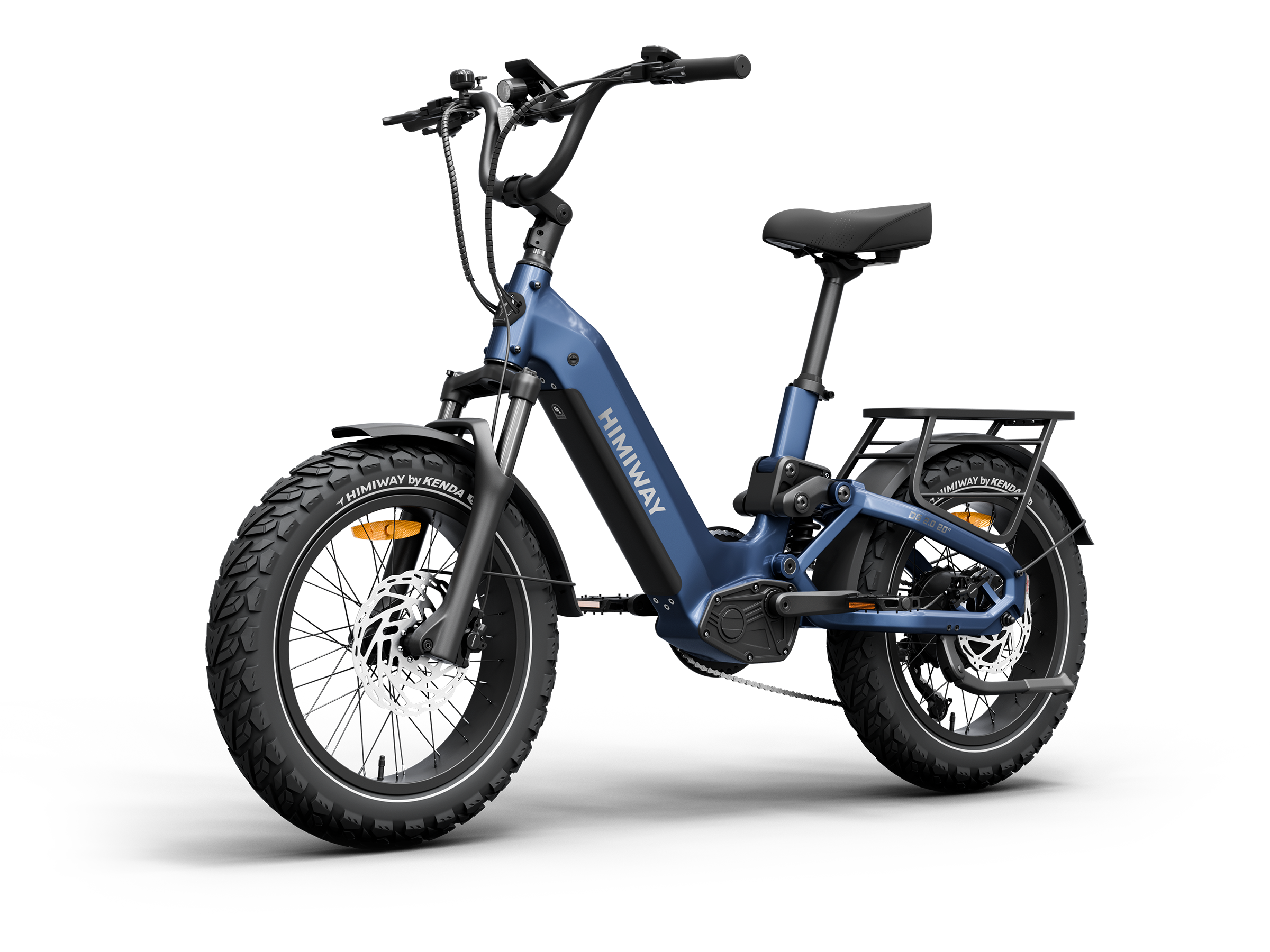

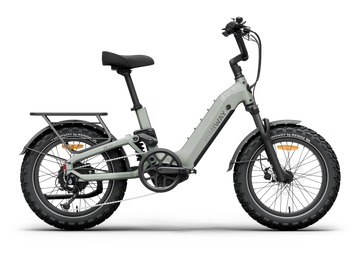

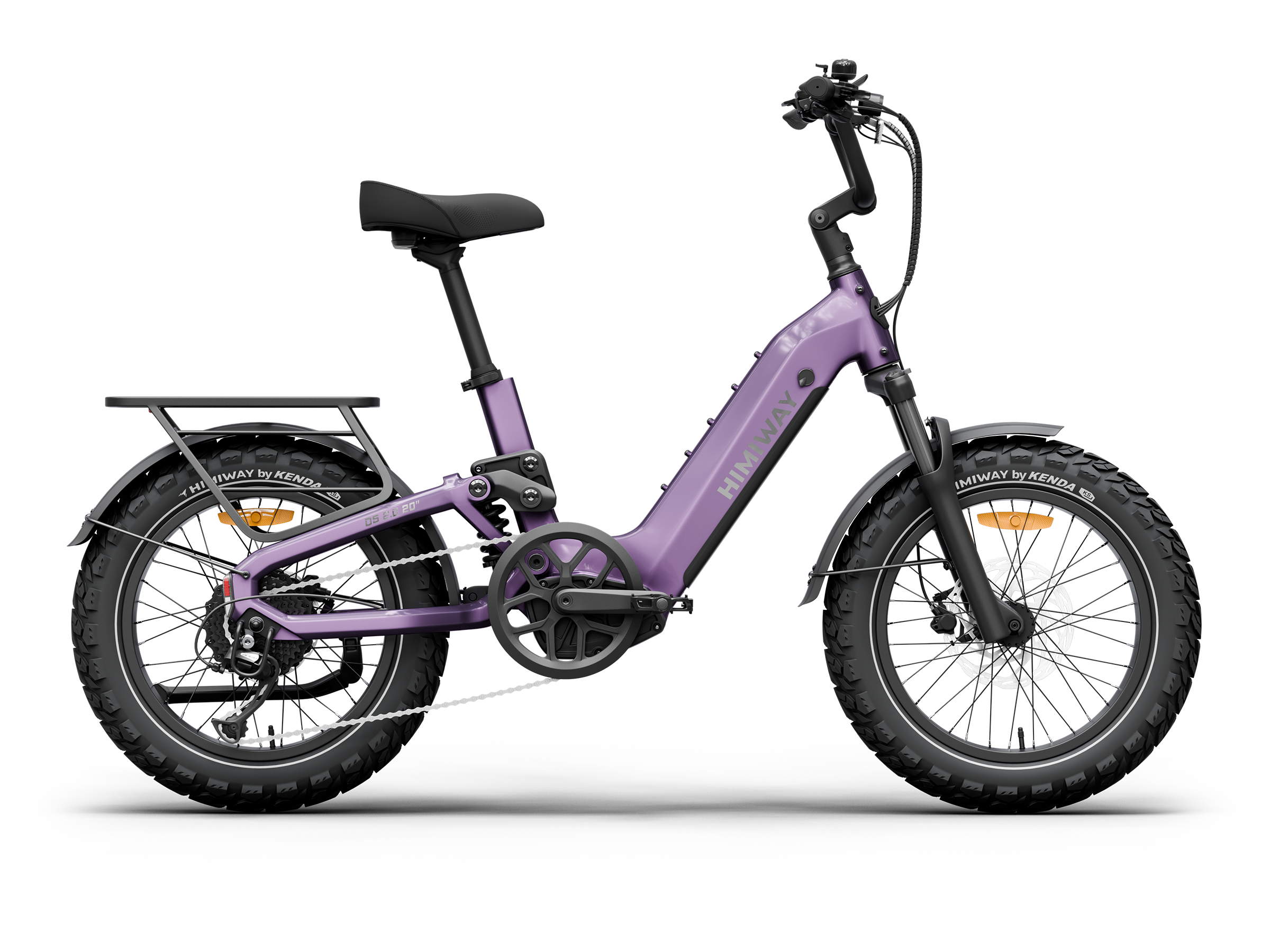

Himiway D5 2.0 20" eBike Endless Comfort: Turning Rough Roads into Silk.
-
Availability: Pre-order
Couldn't load pickup availability
Product Descriptions
New Himiway D5 2.0 20" Endless Comfort Meets All-Terrain Power
Turn every trail into smooth pavement with the Himiway D5 2.0 20", engineered for comfort, endurance, and all-terrain performance. Whether you’re cruising city streets, hauling gear, or tackling rugged backcountry trails, this e-bike delivers a ride that feels effortless and controlled.
Key Specs
- Motor: 750W hub motor, 90Nm torque
- Battery: 48V 15Ah Samsung/LG, UL2271 Certified
- Range: Up to 70 miles
- Drivetrain: Shimano 8-speed
- Brakes: Tektro HD-E3520 hydraulic, 180mm rotors
- Tires: 26x4.0” fat tires
- Payload: 400 lbs | Rider Height: 4'11" - 6'3"
- Weight: 80 lbs (with battery)
Technical Specifications

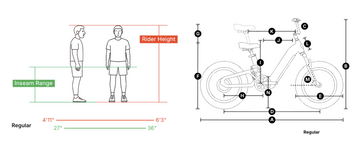

Geometry
-
A total length70 inch
-
B handlebar height44 inch (0°)
-
C handlebar width28.3 inch
-
D wheelbase46.5 inch
-
E wheel diameter23.3 inch
-
F min seat height30.7 inch
-
G seat adjustment height9 inch
-
H chain stay length18.9 inch
-
I frame stack20.6 inch
-
J frame reach16.8 inch
-
K effective top tube24.3 inch
-
L head tube length5.9 inch
-
M head angle68°
-
N standover height16.9 inch
Frameset
-
FrameAluminum Alloy, Rear Wheel 130mm Travel
-
ForkHimiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
-
Motor750W 90Nm Hub motor
-
battery48V15Ah Samsung/LG lithium battery,UL2271
-
CellSamsung/LG 21700 cell, Certificated by UL 2580d5 2.0
-
Charger48V, 3.0A Fast Chargercharger
-
Display3.5-inch, Full Color, 320x480 Resolution
-
SensorTorque / Cadence Switchable
-
ThrottleThumb Throttle
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
-
Walkmode 1.9~3.7 MPH
-
Front light130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
-
Rear lightBraking Indicator, rear light steady/flash, integrated with the frame
-
Waterproof ratingIPX5 (whole bike), IPX6 (battery)
Speed & Range
-
Max speed (default)20 MPH
-
Max speed adjustable range4~28 MPH
-
Class1/2/3
-
Throttle range40 Miles
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
Drivetrain
-
Chainrings52T Narrow Wide Chainring
-
CranksetAluminum Alloy, 170mm
-
Freewheel8-speed, 11-34TFreewheel
-
rear derailleur shimano 8-speedSHIMANO 8-speed
-
Shift leverSHIMANO 8-speed
-
Chain8-speed
Brake
-
BrakeTektro Hydraulic Disc BrakeBrake
-
Rotors203mm Front/180mm RearRotors
-
Brake leversAluminum Alloy, with power cutoff
Wheel
-
RimsAluminum alloy
-
Front hubAluminum alloy, Anti-Theft Quick Release
-
Tire20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
-
HandlebarAluminum Alloy, Φ31.8mm, 660mm
-
GripsDurable ergonomic grips, lockable
-
Stem0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
-
SaddleMemory Foam comfort ergonomic seat
-
SeatpostAluminum Alloy, Φ33.9mm, 350mmseatpost
-
ClampAluminum Alloy, quick release
Supports
-
FendersPlastic, Front and Rear Full Coverage
-
Rear rackMIK HD Compatible AlloyRear rack
-
PedalsAluminum alloy
-
KickstandAluminum Alloy, included, rear mount
Weight & Load
-
Bike weight80lbs
-
Bike load capacity440lbs
-
Rear rack load capacity120lbs
Certification
-
Ul certificationUL 2849
-
Full Suspension
Travel F:90mm R:100mm
-
Torque / Cadence
2 Riding Experiences
-
750W 90Nm
Geared Hub Motor
-
400 lb.
Payload Capacity Not recommended for riders over 120 kg (265 lbs).
-
28 Mph
Top Speed Reach speeds of up to 20 mph, No pedaling required.
-
20x4 "
Kenda Fat Tire
- 1 - Not recommended for riders over 120 kg (265 lbs).
- 2 - Reach speeds of up to 20 mph, No pedaling required.

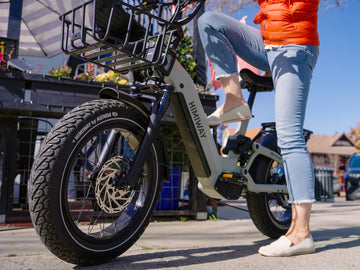

Easy to Maneuver
Stable. Easy to control. Confidence at every stop. With a 17" standover height, compact 20" wheels, and a lower center of gravity than most fat tire bikes, you feel balanced the moment you hop on. Ride steady. Ride easy. Head out on your own terms.
-
17"
Low Standover -
20"
Compact Wheels

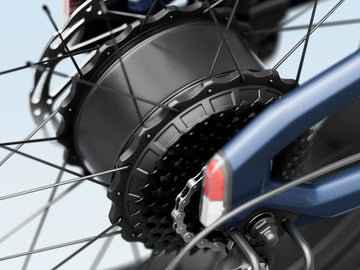

More Power. Less Effort.
Ride farther. Arrive feeling fresh. Hills or flat roads, long rides or quick errands — the motor takes care of the hard parts so you don’t have to. You pedal. The bike keeps up.
-
750w / 1300w
Peak Motor -
90Nm
Max Torque

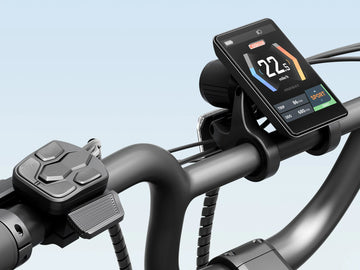

Glance. Adjust. Ride.
Simple controls keep your focus where it belongs — on the road. A bright color display shows speed and battery at a glance, while thumb-reach buttons let you adjust power without looking down. Less fiddling. More riding.
-
LCD
Color Display -
Thumb
Easy Control

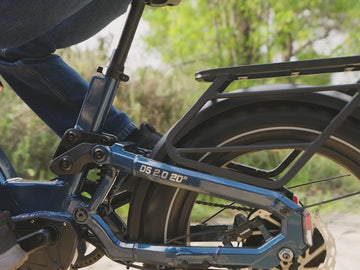

Ride Smooth. Stay Comfortable.
A smoother ride, wherever the road takes you. Full suspension absorbs gravel, roots, and ruts before you even notice them, keeping the ride soft and controlled. Whether it’s a trail through the state park or a bumpy shortcut to the grocery store, comfort stays with you. Compact 20" wheelsadd agility on tight turns and uneven paths, so you can go where you want — and stay comfortable getting there.
-
90mm
Fork Travel 90mm Fork Travel -
100mm
Rear Travel 100mm Rear Travel

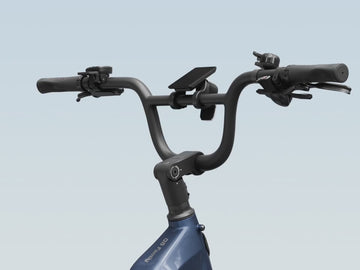

Still Good at Mile Ten
Ride longer without the aches and strain. An adjustable stem lets you fine-tune handlebar height and angle to match your posture — upright, relaxed, and easy on your shoulders and wrists. Whether it’s a quick loop around the neighborhood or a slow cruise through the state park, you’ll still feel good when you get home.
-
60°
Adjustable

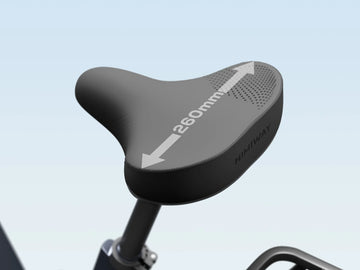

Stay Out Longer
Comfort that lasts beyond the first mile. A wide memory-foam saddle distributes weight evenly and helps absorb bumps along the way, so rides stay comfortable at 30 minutes, 60 minutes, and beyond. No rush. Just ride — and head home when you’re ready.
-
260mm
Wide Saddle

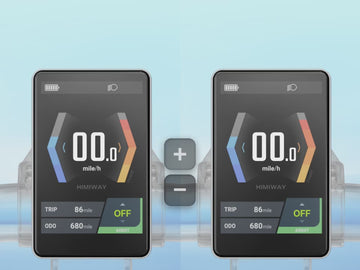

Just Pedal. It Adjusts.
No shifting. No guesswork. In Auto mode, the bike adds more support on hills and eases off on flat roads — all without you having to think about it. Prefer more control? Switch to Manual and choose from 5 assist levels. Your ride. Your way.
-
5 Level
Assist System -
Auto Mode
Real-Time Assist

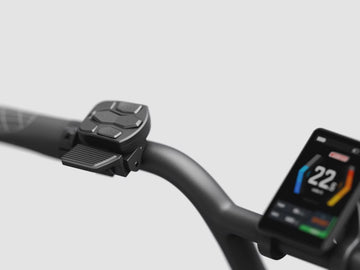

Two Riding Experiences. One Button.
Choose how your bike responds to you: Torque Mode – Instant power for when you need extra speed or tackle hills. Cadence Mode – Smooth, steady assist for effortless, comfortable rides. Switch anytime with a long-press of M—no stopping required. Enjoy complete control, every ride.
-
Torque
Instant Power Torque Instant Power -
Cadence
Steady Rhythm
Your Bike. Your Settings.
Adjust until it feels just right: Power Level— Choose your boost. Speed Limit — Set your pace. Assist Response— Smooth or instant, your call. Once set, the bike remembers. Your comfort. Your ride. Your way.
-
Custom
Power Level -
Speed
Adjustable
Technical Specifications
Geometry
-
A total length70 inch
-
B handlebar height44 inch (0°)
-
C handlebar width28.3 inch
-
D wheelbase46.5 inch
-
E wheel diameter23.3 inch
-
F min seat height30.7 inch
-
G seat adjustment height9 inch
-
H chain stay length18.9 inch
-
I frame stack20.6 inch
-
J frame reach16.8 inch
-
K effective top tube24.3 inch
-
L head tube length5.9 inch
-
M head angle68°
-
N standover height16.9 inch
Frameset
-
FrameAluminum Alloy, Rear Wheel 130mm Travel
-
ForkHimiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
-
Motor750W 90Nm Hub motor
-
battery48V15Ah Samsung/LG lithium battery,UL2271
-
CellSamsung/LG 21700 cell, Certificated by UL 2580d5 2.0
-
Charger48V, 3.0A Fast Chargercharger
-
Display3.5-inch, Full Color, 320x480 Resolution
-
SensorTorque / Cadence Switchable
-
ThrottleThumb Throttle
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
-
Walkmode 1.9~3.7 MPH
-
Front light130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
-
Rear lightBraking Indicator, rear light steady/flash, integrated with the frame
-
Waterproof ratingIPX5 (whole bike), IPX6 (battery)
Speed & Range
-
Max speed (default)20 MPH
-
Max speed adjustable range4~28 MPH
-
Class1/2/3
-
Throttle range40 Miles
-
Pedal assistAuto Pedal Assistant + 5 PAS Levels
Drivetrain
-
Chainrings52T Narrow Wide Chainring
-
CranksetAluminum Alloy, 170mm
-
Freewheel8-speed, 11-34TFreewheel
-
rear derailleur shimano 8-speedSHIMANO 8-speed
-
Shift leverSHIMANO 8-speed
-
Chain8-speed
Brake
-
BrakeTektro Hydraulic Disc BrakeBrake
-
Rotors203mm Front/180mm RearRotors
-
Brake leversAluminum Alloy, with power cutoff
Wheel
-
RimsAluminum alloy
-
Front hubAluminum alloy, Anti-Theft Quick Release
-
Tire20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
-
HandlebarAluminum Alloy, Φ31.8mm, 660mm
-
GripsDurable ergonomic grips, lockable
-
Stem0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
-
SaddleMemory Foam comfort ergonomic seat
-
SeatpostAluminum Alloy, Φ33.9mm, 350mmseatpost
-
ClampAluminum Alloy, quick release
Supports
-
FendersPlastic, Front and Rear Full Coverage
-
Rear rackMIK HD Compatible AlloyRear rack
-
PedalsAluminum alloy
-
KickstandAluminum Alloy, included, rear mount
Weight & Load
-
Bike weight80lbs
-
Bike load capacity440lbs
-
Rear rack load capacity120lbs
Certification
-
Ul certificationUL 2849
