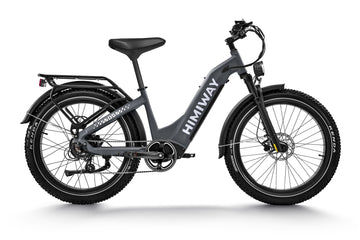

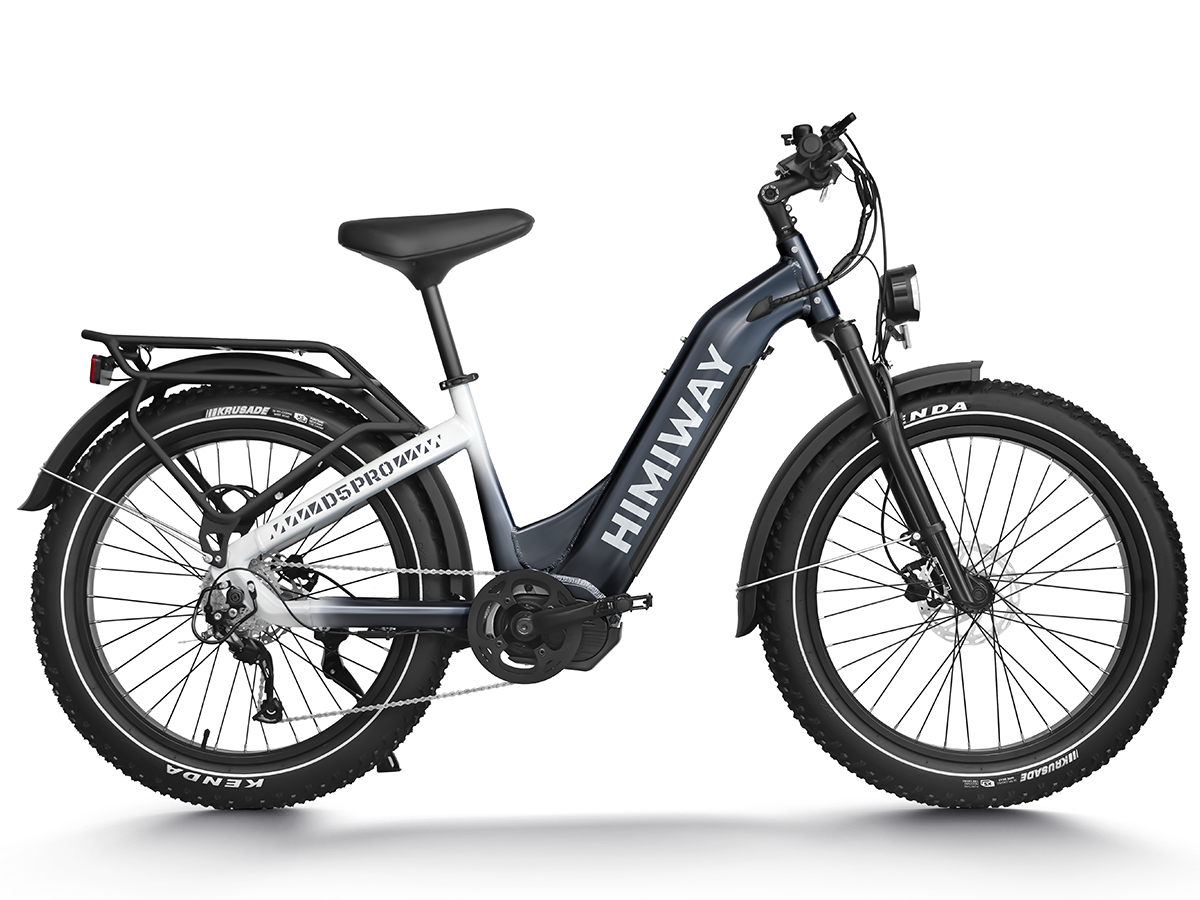

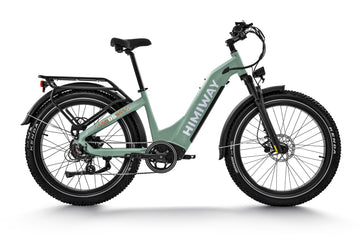

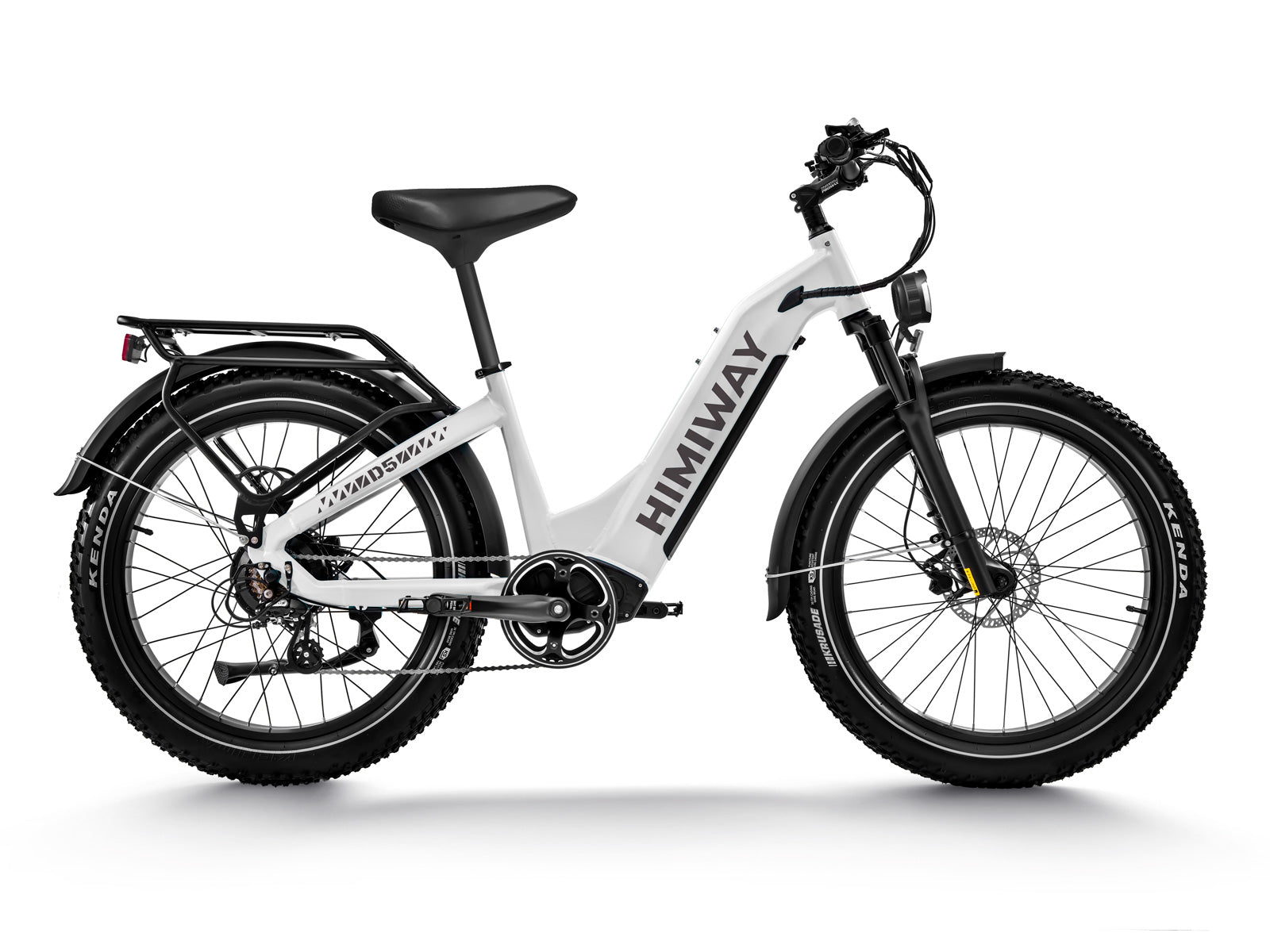

Premium All-terrain Electric Fat Bike D5 ST

HIMIWAY ZEBRA

Premium All-terrain Electric Fat Bike D5 ST

$2,899.00 CAD $2,399.00 CAD

Shipping Time: Within 2 Business Days

Extra $100 Off Any 2 Bikes

Discount Applied Automatically

Style

D5 ST (Torque Sensor)

D5 ST Pro(Torque Sensor)

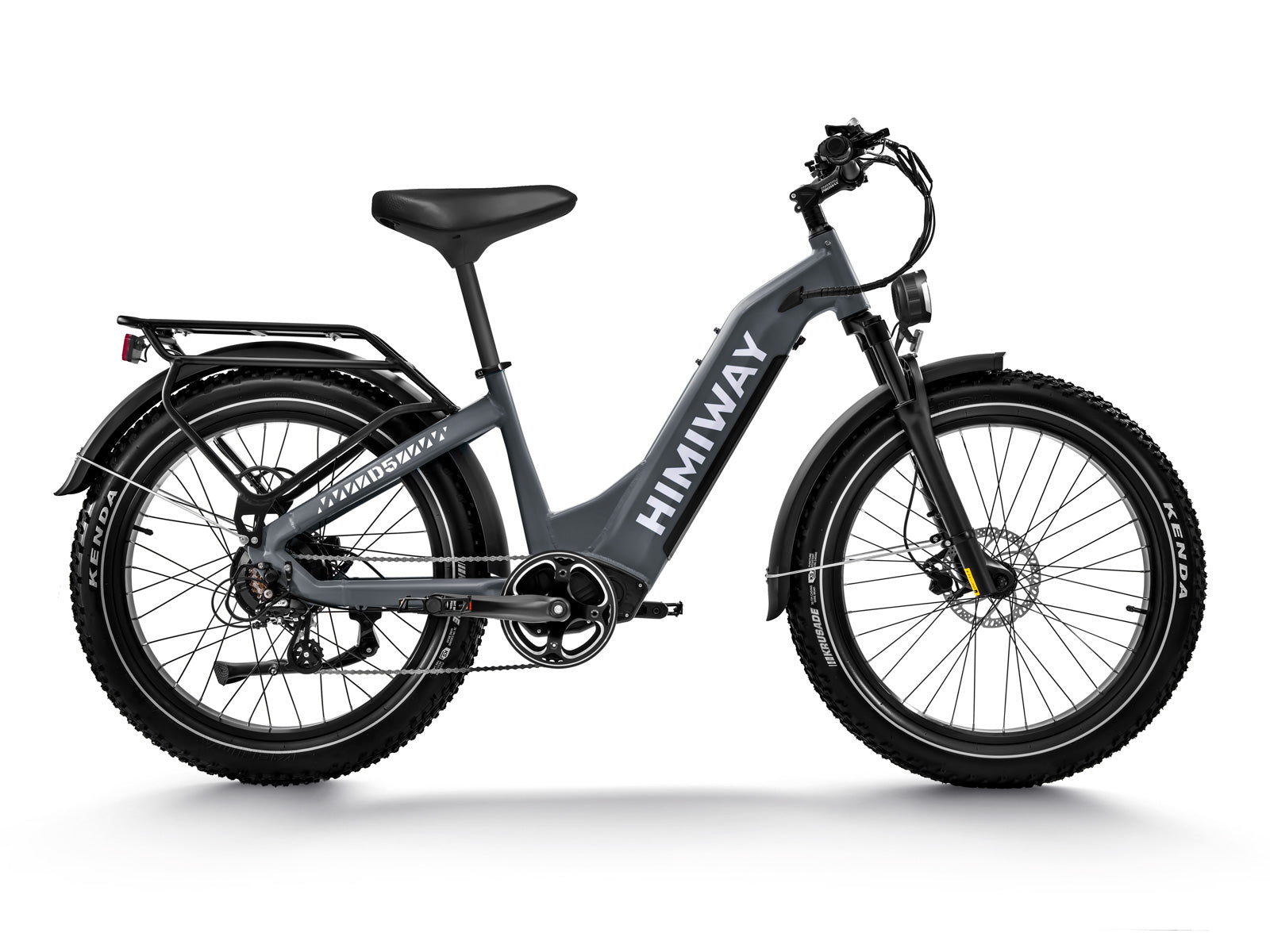

Color — Space Grey

Space Grey

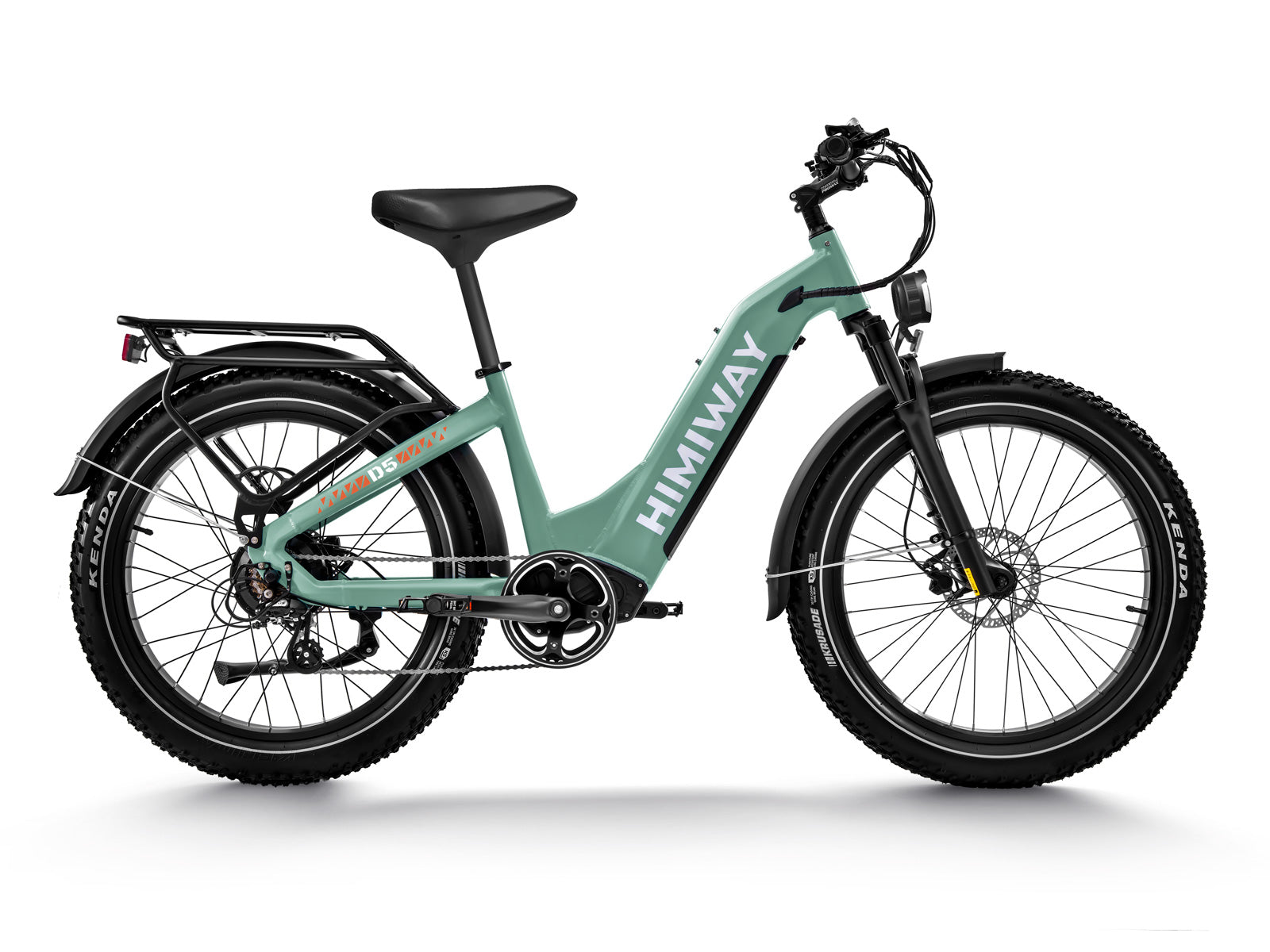

Green

White

Black & White Gradient

Quantity

Free Accessories Included

Fender Kit

$119.00 CAD FREE

Repair Tool

$19.90 CAD FREE

[{"id":44532298842353,"title":"D5 ST (Torque Sensor) \/ Space Grey","option1":"D5 ST (Torque Sensor)","option2":"Space Grey","option3":null,"sku":"HMW-D5-GY-ST-US","requires_shipping":true,"taxable":false,"featured_image":{"id":40868424122609,"product_id":7760881516785,"position":1,"created_at":"2024-04-02T11:50:13+08:00","updated_at":"2024-04-02T11:51:34+08:00","alt":null,"width":1600,"height":1200,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_9.jpg?v=1712029894","variant_ids":[44532298842353]},"available":true,"name":"Premium All-terrain Electric Fat Bike D5 ST - D5 ST (Torque Sensor) \/ Space Grey","public_title":"D5 ST (Torque Sensor) \/ Space Grey","options":["D5 ST (Torque Sensor)","Space Grey"],"price":239900,"weight":32659,"compare_at_price":289900,"inventory_management":"shopify","barcode":"749734965956","featured_media":{"alt":null,"id":33500192571633,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_9.jpg?v=1712029894"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44532298809585,"title":"D5 ST (Torque Sensor) \/ Green","option1":"D5 ST (Torque Sensor)","option2":"Green","option3":null,"sku":"HMW-D5-MG-ST-US","requires_shipping":true,"taxable":false,"featured_image":{"id":40868423860465,"product_id":7760881516785,"position":2,"created_at":"2024-04-02T11:50:13+08:00","updated_at":"2024-04-02T11:51:34+08:00","alt":null,"width":1600,"height":1200,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_7.jpg?v=1712029894","variant_ids":[44532298809585]},"available":true,"name":"Premium All-terrain Electric Fat Bike D5 ST - D5 ST (Torque Sensor) \/ Green","public_title":"D5 ST (Torque Sensor) \/ Green","options":["D5 ST (Torque Sensor)","Green"],"price":239900,"weight":32659,"compare_at_price":319900,"inventory_management":"shopify","barcode":"749734965987","featured_media":{"alt":null,"id":33500192506097,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_7.jpg?v=1712029894"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44532298776817,"title":"D5 ST (Torque Sensor) \/ White","option1":"D5 ST (Torque Sensor)","option2":"White","option3":null,"sku":"HMW-D5-PW-ST-US","requires_shipping":true,"taxable":false,"featured_image":{"id":40868423139569,"product_id":7760881516785,"position":3,"created_at":"2024-04-02T11:50:13+08:00","updated_at":"2024-04-02T11:51:34+08:00","alt":null,"width":1600,"height":1200,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_8.jpg?v=1712029894","variant_ids":[44532298776817]},"available":true,"name":"Premium All-terrain Electric Fat Bike D5 ST - D5 ST (Torque Sensor) \/ White","public_title":"D5 ST (Torque Sensor) \/ White","options":["D5 ST (Torque Sensor)","White"],"price":239900,"weight":32659,"compare_at_price":289900,"inventory_management":"shopify","barcode":"749734965970","featured_media":{"alt":null,"id":33500192538865,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_8.jpg?v=1712029894"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44532298875121,"title":"D5 ST Pro(Torque Sensor) \/ Black \u0026 White Gradient","option1":"D5 ST Pro(Torque Sensor)","option2":"Black \u0026 White Gradient","option3":null,"sku":"HMW-D5PRO-ST-BW-US","requires_shipping":true,"taxable":false,"featured_image":{"id":40868424351985,"product_id":7760881516785,"position":4,"created_at":"2024-04-02T11:50:13+08:00","updated_at":"2024-04-02T11:51:34+08:00","alt":null,"width":1200,"height":900,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_1.png?v=1712029894","variant_ids":[44532298875121]},"available":true,"name":"Premium All-terrain Electric Fat Bike D5 ST - D5 ST Pro(Torque Sensor) \/ Black \u0026 White Gradient","public_title":"D5 ST Pro(Torque Sensor) \/ Black \u0026 White Gradient","options":["D5 ST Pro(Torque Sensor)","Black \u0026 White Gradient"],"price":269900,"weight":32659,"compare_at_price":319900,"inventory_management":"shopify","barcode":"749734966007","featured_media":{"alt":null,"id":33500192342257,"position":4,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_1.png?v=1712029894"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":44532298842353,"title":"D5 ST (Torque Sensor) \/ Space Grey","option1":"D5 ST (Torque Sensor)","option2":"Space Grey","option3":null,"sku":"HMW-D5-GY-ST-US","requires_shipping":true,"taxable":false,"featured_image":{"id":40868424122609,"product_id":7760881516785,"position":1,"created_at":"2024-04-02T11:50:13+08:00","updated_at":"2024-04-02T11:51:34+08:00","alt":null,"width":1600,"height":1200,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_9.jpg?v=1712029894","variant_ids":[44532298842353]},"available":true,"name":"Premium All-terrain Electric Fat Bike D5 ST - D5 ST (Torque Sensor) \/ Space Grey","public_title":"D5 ST (Torque Sensor) \/ Space Grey","options":["D5 ST (Torque Sensor)","Space Grey"],"price":239900,"weight":32659,"compare_at_price":289900,"inventory_management":"shopify","barcode":"749734965956","featured_media":{"alt":null,"id":33500192571633,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/ca.himiwaybike.com\/cdn\/shop\/files\/zebraST_9.jpg?v=1712029894"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

2-Year Warranty

15-Day Return

Shipping

The Zebra/ Zebra ST model are covered under our manufacturer's 2-year all-inclusive warranty for the original owner against all manufacturing defects (All free Accessories are not covered by warranty service).

Overview Geometry Review

$2,399.00

Go Further Than Ever

Himiway Zebra

Himiway Zebra, the updated version of Himiway Cruiser, is equipped with powerful 500W gear hub motor and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebra ebike is 80 miles with pedal assist and 60 miles range with pure electric power. Get your Zebra, and keep wild on Himiway.

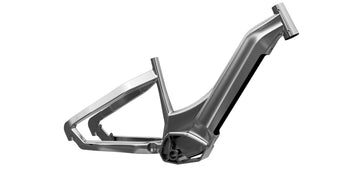

Upgraded 6061 Aluminum

Frame

500W

750W (Peak) 500W (Continuous) Geared Hub Motor

48V 20Ah

Samsung/LG Battery

100~128 KM

KM per Charge (estimate)

Max 20 MPH

Legally required in Canada

400lbs

Payload Capacity

UL Certification

48V 20AH Samsung/LG Lithium-ion Battery

Himiway Zebra combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but larger diversity. Compared with 3500mAh cells made of nickel, cobalt and manganese, this 960Wh battery efficiently improves the range, stability and safety of Himiway bikes. Generally speaking, a single charge can last up to 100 KM on pure electric power and over 128+ KM with pedal-assist. The battery will maintain 80% capacity after 1000 charges.

60~80 Mi(100~128 KM)

Per Charge

960 Wh

Total Battery Capacity

5000mAh

Single Cell Capacity

7 hours

Time Until Fully Charge

500W Upgraded Brushless Geared Hub Motor

The design of the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 500W brushless gear hub motor can help you conquer even the most rugged terrain easily.

500W

Motor Power

86Nm

Max Motor Torque

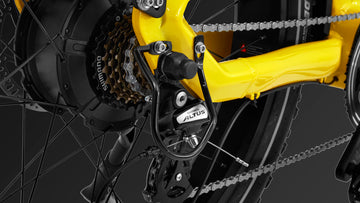

Shimano 9 Speed Gear Shift System

Versatile shifting for optimal control across diverse terrains, complemented by a seamless pedal-assist system for a tailored ride experience.

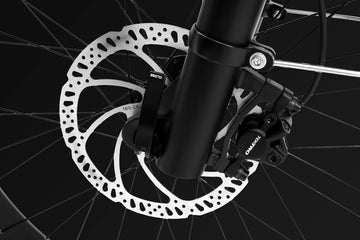

Hydraulic Disc Brakes

Dual-piston hydraulic brakes ensure rapid and reliable stopping power at high speeds for enhanced safety.

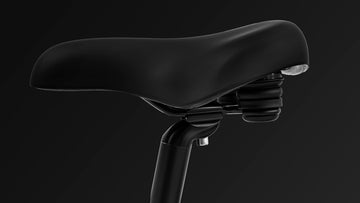

Selle Royal Saddle

The Selle Royal Saddle features a comfortable and ergonomic design specially made for pressure relief. Enjoy healthy & happy long-distance riding!

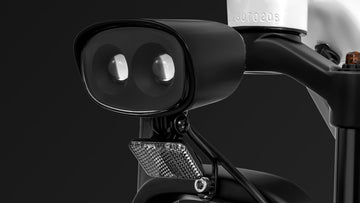

48V 500LM Luminosity Spotlight

The Himiway team has developed a spotlight that is 20% brighter than standard LED lights. Visibility is improved to guarantee your safety while riding at night.

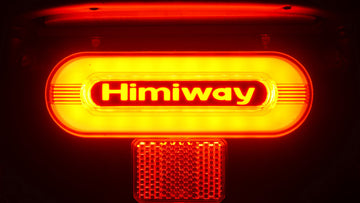

Customized Integrated Brake Light

The automatic brake light with Himiway logo will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.

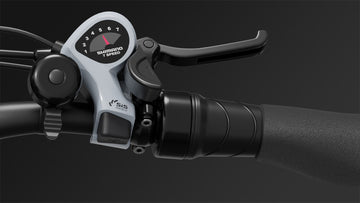

Thumb Throttle

Enhanced control and quicker response with a safer, more efficient brake-throttle separation, ideal for navigating busy streets.

Geometry

Specification

Components

Moped style E-bike Himiway Escape Geometry

Recommended Height: 5'1" ~ 6'5"

A -- Total Length 78.7
B -- Handlebar Height 47
C -- Handlebar length 28
D -- Wheelbase 49.2
E -- Wheel diameter 28.7
F -- Minimum seat height 20.9
G -- Maximum seat height 31.4
H -- Chain stay length 19
I -- Frame stack 24.6
J -- Fame reach 17.8
K -- Effective top tube length 24.4
L -- Head tube length 5.5
M -- Head angle 17.8
N -- Standover height ST 22.4/ SO 31.1

D5 ST D5PRO ST

Tires 26" x 4" Kenda fat tires
Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light Integrated Taillight
Freewheel Shimano 7 speed gear shift system
Brake Tektro 180MM Hydraulic Brakes
Chain KMC chain
Stem Promax MA-400 28.6*90*10D*41H
Crank Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
Freewheel Shimano MF-TZ500-7 14-28T

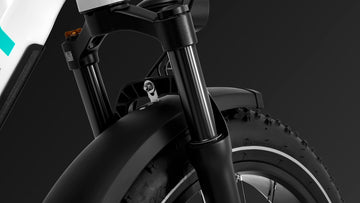

Front Fork Alloy front suspension fork with lockout and adjustment
Throttle Thumb throttle
Pedal Aluminum pedal
Bike Frame 6061 Aluminum frame
Front Light 48V LED light
Saddle Himiway Saddle
Seat Post Himiway Seatpost
Kickstand Heavy duty aluminum
Spokes Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W

Tires 26" x 4" Kenda fat tires
Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
Rear Light Integrated Taillight
Freewheel Shimano 7 speed gear shift system
Brake Tektro 180MM Hydraulic Brakes
Chain KMC chain
Stem Zoom TDS-C269-8FOV 31.8*90mm
Crank Prowheel 170mm / Chain ring: 44T BCD104
Freewheel Shimano CS-HG201-9 11-36T

Front Fork Alloy front suspension fork with lockout and adjustment
Throttle Thumb throttle
Pedal Aluminum pedal
Bike Frame 6061 Aluminum frame
Front Light 48V LED light
Saddle Selle royal A054UE
Seat Post SP-2003 30.9*350mm
Kickstand Heavy duty aluminum
Spokes 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14

Easy to Assemble

Watch Unboxing Video

The bike battery is not working, and I have been waiting for the replacement battery for 14 days

The bike battery is not working, and I have been waiting for the replacement battery for 14 days

In joying bikes

Purchased two HimiwayBikes, using they to explore back country in the Canadian Rocky mountains, and they are ideal for that activity. Use mine for doing trips around town as well. Did a lot of reserch before and it paid off for us as they are great allterain bikes for mountain and great for in our community.

Himiway Zebra FAQs

Zebra has great stamina and they can run at full speed for over a mile. Even the world’s fastest animal, the cheetah can’t run longer than the Zebra. Our ebike can go up to 80 miles, which other ebikes can hardly reach.

Zebra E-bikes can be assembled in 45-60 minutes.

Himiway Zebra is equipped with 48V 20Ah Samgsung/LG Lithium-ion Battery with integrated design, upgraded motor, hydraulic disc brake as well as a stronger frame.

Step-thru is more friendly to women or seniors less flexible.

An integrated battery means battery embedded in the frame, which makes the ebike more windproof, rainproof and vapour-proof. Long-time exposure to humid environment is not suggested for maintaining your bike.

It can go up to 80 miles because of its 5 levels pedal assist, 7 speed gear shift and 960Wh strong battery and also your proper operation.
