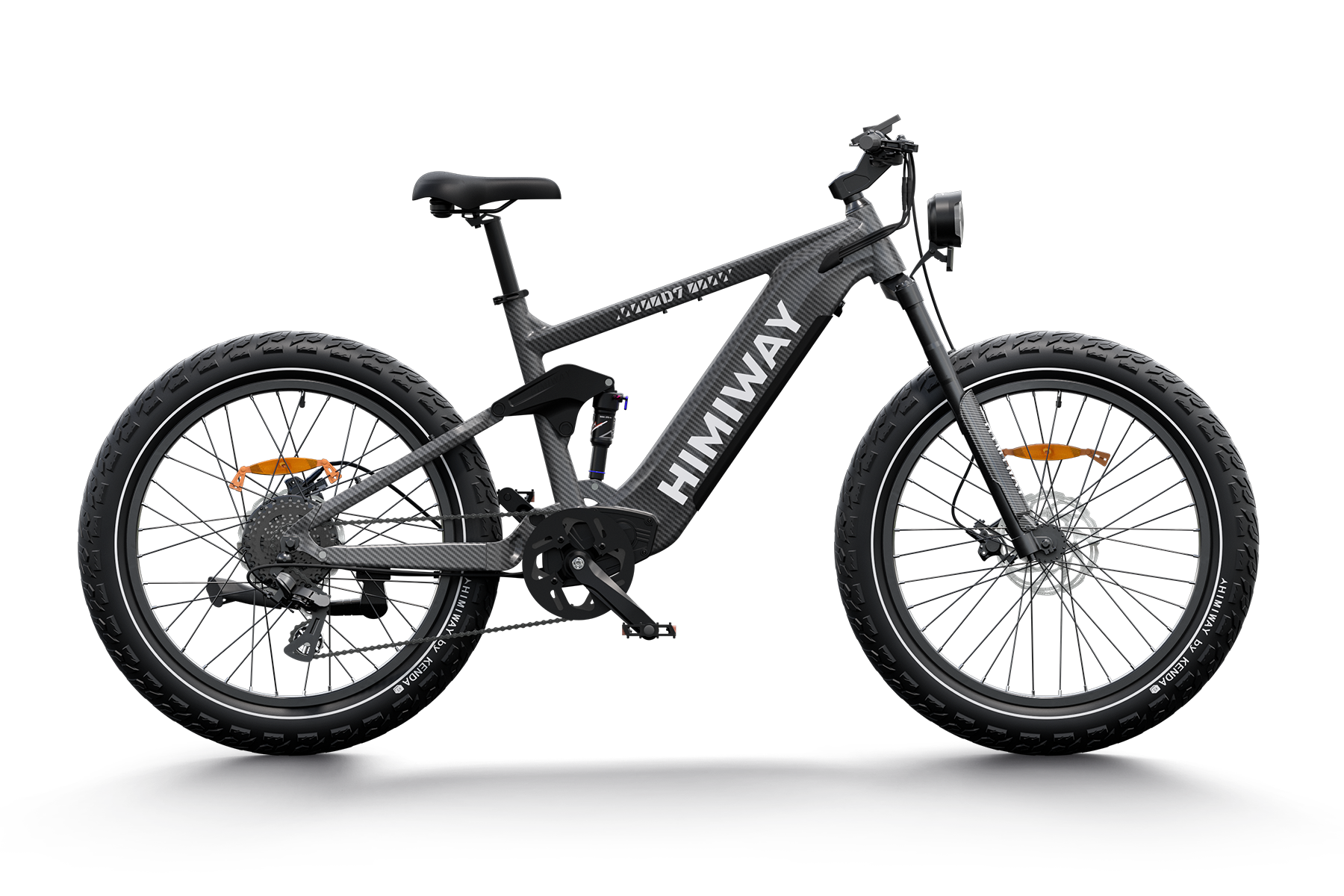

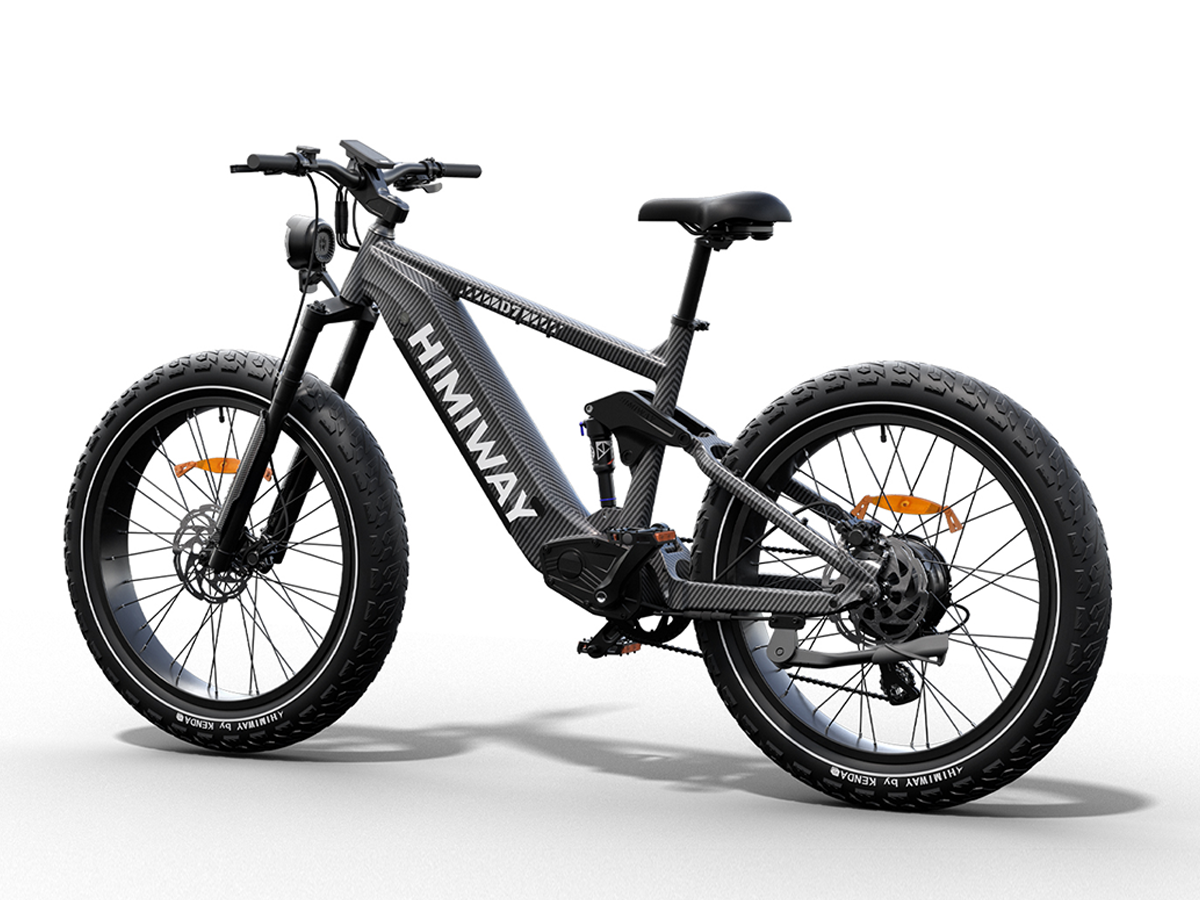

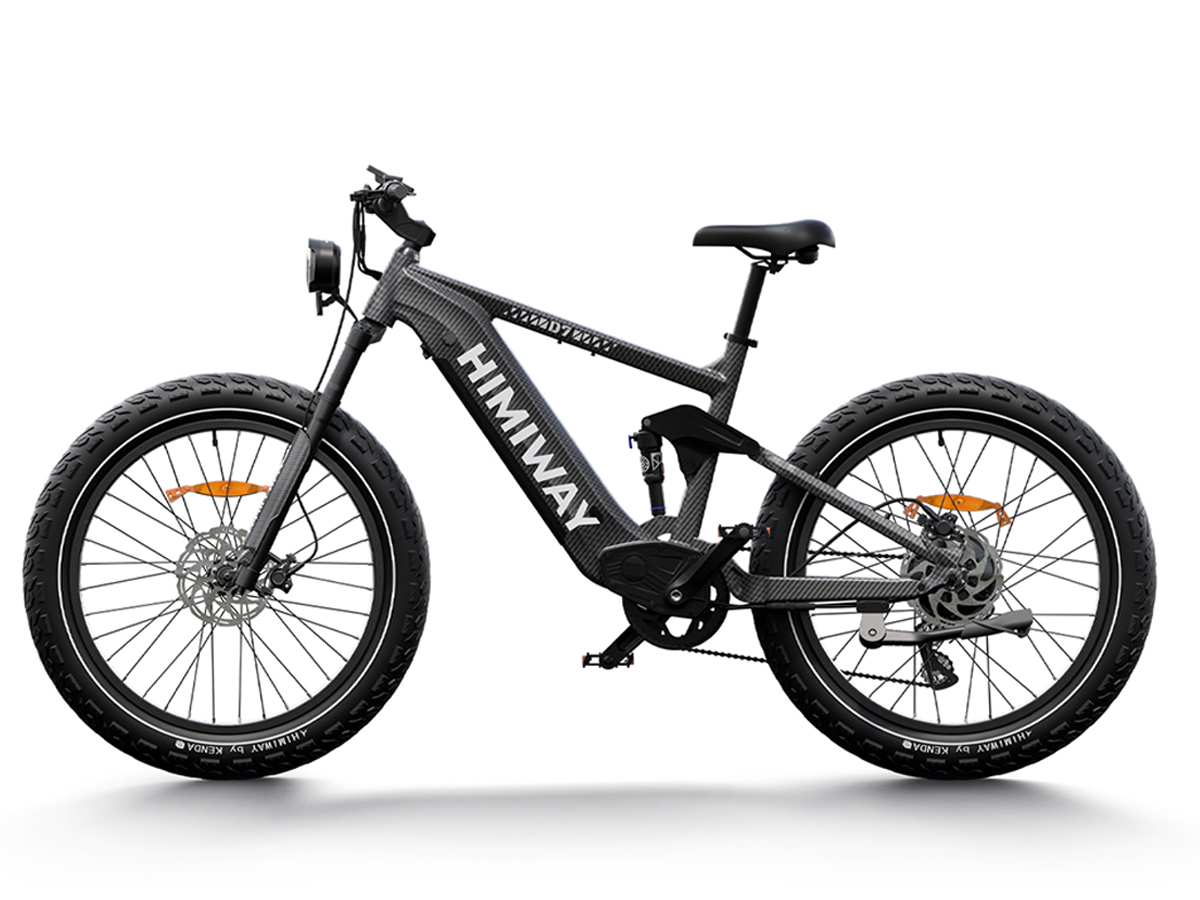

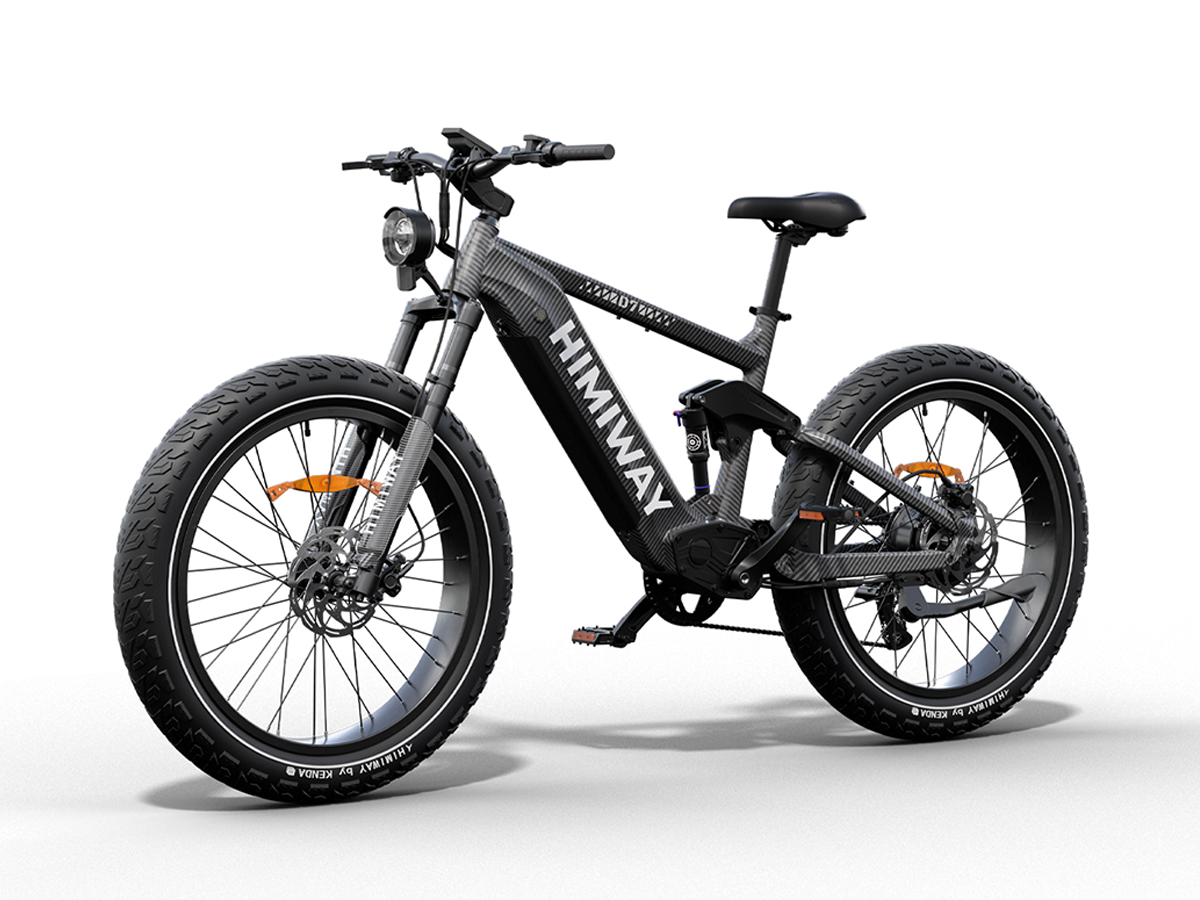

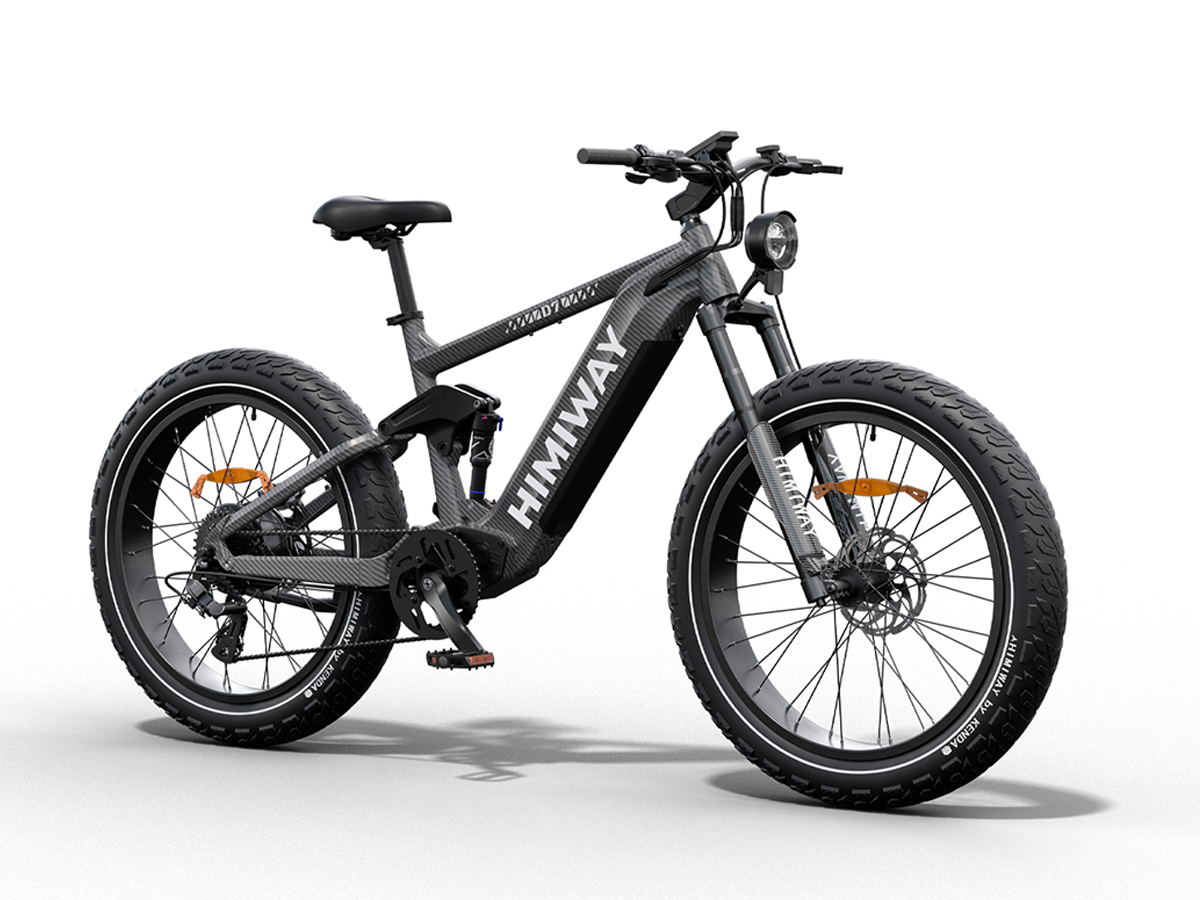

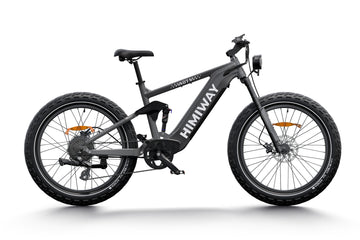

Vélo de montagne électrique Himiway Cobra
-
Disponibilité: En stock
-
Shipping Time:Within 2 Business Days
Impossible de charger la disponibilité du ramassage
Technical Specifications
Geometry
-
A – total length81.8D7:82.6
-
B – handlebar height44.5D7:42.9
-
C – handlebar length28D7:30.7
-
D – wheelbase52D7:51.1
-
E – wheel diameter30.3
-
F – minimum seat height20.9D7:30.3
-
G – maximum seat height30.4D7:37
-
H – chain stay length20D7:19.7
-
I – frame stack25D7:32
-
J – frame reach18.6
-
K – effective top tube length25
-
L – head tube length5.9D7:5.1
-
M – head angle65°
-
N – standover height30.7
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H383AEM 28.6*44*56*39.8
-
ForkGuide-26”-TNL-95 95mm travelD7:Inverted Fork 120mm lockout & rebound adjustable
-
ShockEXA A5-RR1-KS 190*50mmD7:DNM A0-38RC rear shock 190*45mm
-
Front wheelMB016F-QR 13G*255*256m 26'' 36hD7:M9CF-150 12G*150*15mm 26'' 36h
-
Rear wheelMD-147 12G 214L 48v 750w Himiway hub motorD7:MD-147 12G 214L 48v 1000w Himiway hub motor
-
TiresCST roly poly 26*4.8D7:Kenda X Himiway K1277 26*4.5
-
Battery48V 20Ah
-
Motor750W brushless gear motorD7:1000W brushless gear motor
-
DisplayLCD display with USB chargerD7:LCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-

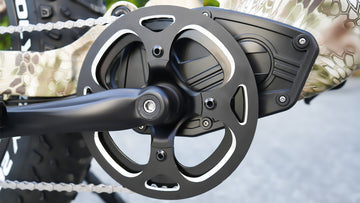

CranksetCrank arm: EB-01-242A-S1 170mm Chain ring: 44T 104BCD CL55D7:Crank arm: EB-01-242A-S1 170mm Chain ring: 40T 104BCD narrow wide chainring
-
FreewheelShimano MF-TZ500-7 14-28TD7:Shimano CS-HG41.8 11-34T
-
ChainKMC Z8.3 EPT 122L
-
GroupsetShimano altus M310 7 speedD7:Shimano acera M3020 8s
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsTektro TR180-24 F:180mm R:180mmD7:F:TR-203-52 R:TR-180-52
Components
-
StemPromax MA-400 28.6*90*31.8mmD7:XF-827 alloy Ext:50mm
-
HandlebarPromax HB-3188 22.2*31.8*700mmD7:Promax HB-3188DB -W780
-
SeatpostSP-2003 30.9*350mm
-
SaddleVelo soft saddleD7:Selle Royal A054UE
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′5″ ~ 6′5″D7:5′3″ ~ 6′5″
-
Weight88.6 lb.
-
Max. payload capacity400 lb.
Geometry
Cobra -- 5'5" ~ 6'5"
D7 -- 5'3" ~ 6'5"
-
A – total length82.6Cobra:81.8
-
B – handlebar height42.9Cobra:44.5
-
C – handlebar length30.7Cobra:28
-
D – wheelbase51.1Cobra:52
-
E – wheel diameter30.3
-
F – minimum seat height30.3Cobra:20.9
-
G – maximum seat height37Cobra:30.4
-
H – chain stay length19.7Cobra:20
-
I – frame stack32Cobra:25
-
L – head tube length5.1Cobra:5.9
-
N – standover height30.7
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H383AEM 28.6*44*56*39.8
-
ForkInverted Fork 120mm lockout & rebound adjustableCobra:Guide-26”-TNL-95 95mm travel
-
ShockDNM A0-38RC rear shock 190*45mmCobra:EXA A5-RR1-KS 190*50mm
-
Front wheelM9CF-150 12G*150*15mm 26'' 36hCobra:MB016F-QR 13G*255*256m 26'' 36h
-
Rear wheelMD-147 12G 214L 48v 1000w Himiway hub motorCobra:MD-147 12G 214L 48v 750w Himiway hub motor
-
TiresKenda X Himiway K1277 26*4.5Cobra:CST roly poly 26*4.8
-
Battery48V 20Ah
-
Motor1000W brushless gear motorCobra:750W brushless gear motor
-
DisplayLCD display with Type-c chargerCobra:LCD display with USB charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: EB-01-242A-S1 170mm | Chain ring: 40T 104BCD narrow wide chainringCobra:Crank arm: EB-01-242A-S1 170mm Chain ring: 44T 104BCD CL55
-
FreewheelShimano CS-HG41.8 11-34TCobra:Shimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 122L
-
GroupsetShimano acera M3020 8sCobra:Shimano altus M310 7 speed
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsF:TR-203-52 R:TR-180-52Cobra:Tektro TR180-24 F:180mm R:180mm
Components
-
StemXF-827 alloy Ext:50mmCobra:Promax MA-400 28.6*90*31.8mm
-
HandlebarPromax HB-3188DB -W780Cobra:Promax HB-3188 22.2*31.8*700mm
-
SeatpostSP-2003 30.9*350mm
-
SaddleSelle royal A054UECobra:Velo soft saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/25A
-

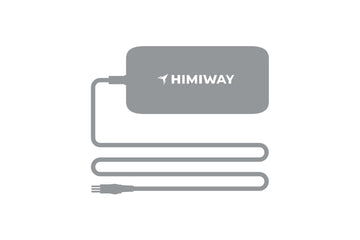

ChargerUS standard 3.0 A smart charger
-
Rider height5′3″ ~ 6′5″Cobra:5′5″ ~ 6′5″
-
Weight88.6 lb.
-
Max. payload capacity400 lb.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
26x4.5
Super Fat Tire
-
Torque
Sensor
-
Hydraulic
Brakes
-
860 Wh
Samsung/LG Battery
-
1000 W
Geared Hub Motor
-
20+ Mph
Top Speed The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
-
400 lb.
Payload Capacity
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
The Ultimate Off-Road Beast
The Cobra adopts a strong high-end four-bar linkage suspension and coil suspension, absorbing any bumps on the way down the trail. The 26”X4.8” CST super fat tires and 750W gear hub motor, make riding more stable to suit all road conditions.
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D7
Hydraulic Brakes
Reflective Sidewall Stripe

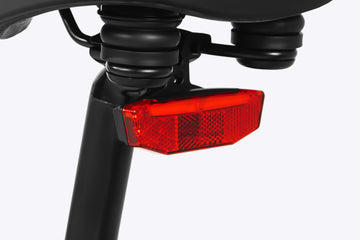

48V Luminosity Taillight

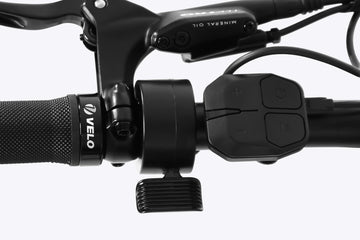

Thumb Throttle

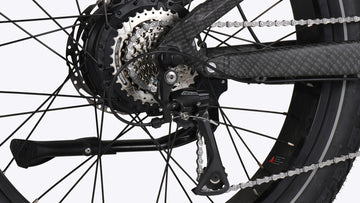

Shimano 8 Speed Gear Shift System

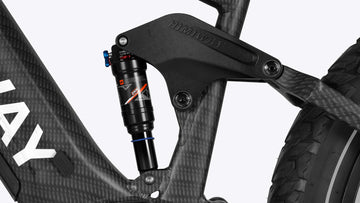

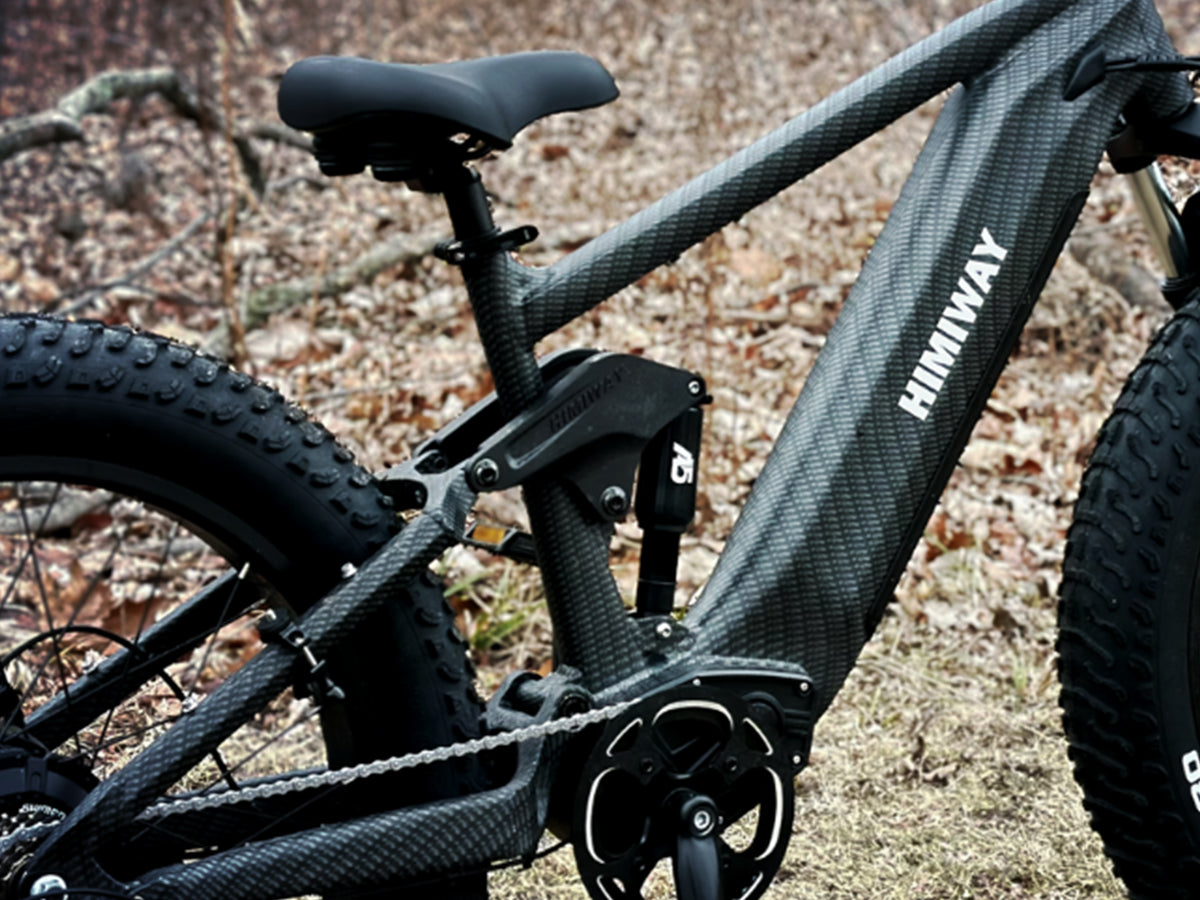

Four-Bar Linkage Suspension

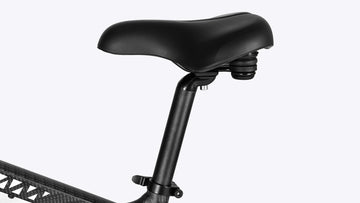

Selle Royal Saddle

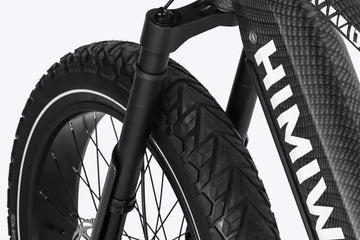

Front Fork: Coil Suspension
First in the U.S.
Go Full Throttle with Full Suspension
Four-Bar
Linkage Suspension6061

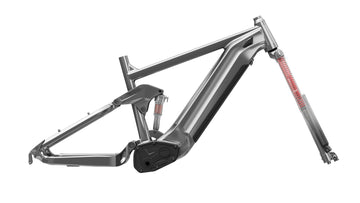

Aerospace Grade Aluminum FrameIt is the first e-bike on the U.S. market with four-bar linkage suspension technology, complemented with 4.8” CST fat tires, these specialize in absorbing both rear-upward force and vibrations, which allows you to ride safely over rutted trails, deep snow, and soft sand without taxing the rider.
The 6061 aluminum alloy frame offers excellent strength and durability while remaining lightweight, allowing you to easily maneuver the bicycle. It also possesses good corrosion resistance and anti-oxidation properties, ensuring that the frame stays fresh and durable over extended periods.
-
400 lb.
Payload Capacity
-
88 lb.
Weight (with battery)
Long Range Expert

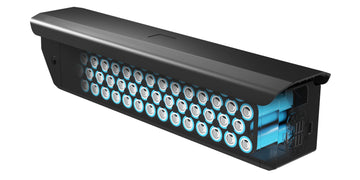

960Wh High-performance Lithium-ion Battery
960 Wh
48V 20AhBMS
Ensure your SafetyIt combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
-
80 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
The BMS (battery management system) is critical to the battery’s safe operation, overall performance, and longevity. If it detects any unsafe conditions, the BMS shuts the battery down to protect the lithium-ion cells and the rider.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
Temperature Control

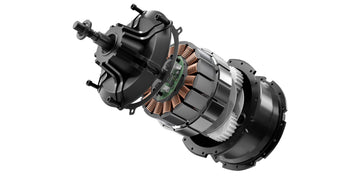

Updated 1000W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
1000W
1500W PeakFOC
Field oriented control1000W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 1000W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
86 Nm
Max Torque
-
9 °
Climbing Angle
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
Experience Natural Handling and Comfortable Human-vehicle Interaction

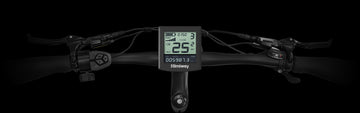

Display
LCD DisplayEasily see your speed, distance traveled, trip time, battery level, and more on the backlit Smart LCD display.
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set

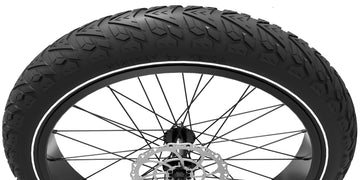

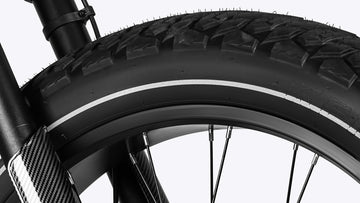

The CST 26"X4.5" Fat Tire
26"X4.5"
All TerrainThe D7 is equipped with rugged, all-terrain tires designed for superior grip and stability, capable of handling both mountainous paths and urban pavement with ease. The innovative hydroplaning-resistant tread pattern elevates its capabilities, ensuring riders enjoy a seamless cycling experience across diverse landscapes.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
Torque Sensor
The intuitive torque sensor seamlessly amplifies your pedaling efforts, providing a more natural riding experience while conserving battery life and extending riding range.

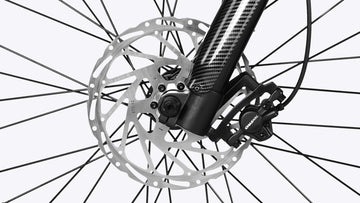

Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Easy to Assemble
Watch VideoTechnical Specifications
Geometry
-
A – total length81.8D7:82.6
-
B – handlebar height44.5D7:42.9
-
C – handlebar length28D7:30.7
-
D – wheelbase52D7:51.1
-
E – wheel diameter30.3
-
F – minimum seat height20.9D7:30.3
-
G – maximum seat height30.4D7:37
-
H – chain stay length20D7:19.7
-
I – frame stack25D7:32
-
J – frame reach18.6
-
K – effective top tube length25
-
L – head tube length5.9D7:5.1
-
M – head angle65°
-
N – standover height30.7
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H383AEM 28.6*44*56*39.8
-
ForkGuide-26”-TNL-95 95mm travelD7:Inverted Fork 120mm lockout & rebound adjustable
-
ShockEXA A5-RR1-KS 190*50mmD7:DNM A0-38RC rear shock 190*45mm
-
Front wheelMB016F-QR 13G*255*256m 26'' 36hD7:M9CF-150 12G*150*15mm 26'' 36h
-
Rear wheelMD-147 12G 214L 48v 750w Himiway hub motorD7:MD-147 12G 214L 48v 1000w Himiway hub motor
-
TiresCST roly poly 26*4.8D7:Kenda X Himiway K1277 26*4.5
-
Battery48V 20Ah
-
Motor750W brushless gear motorD7:1000W brushless gear motor
-
DisplayLCD display with USB chargerD7:LCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: EB-01-242A-S1 170mm Chain ring: 44T 104BCD CL55D7:Crank arm: EB-01-242A-S1 170mm Chain ring: 40T 104BCD narrow wide chainring
-
FreewheelShimano MF-TZ500-7 14-28TD7:Shimano CS-HG41.8 11-34T
-
ChainKMC Z8.3 EPT 122L
-
GroupsetShimano altus M310 7 speedD7:Shimano acera M3020 8s
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsTektro TR180-24 F:180mm R:180mmD7:F:TR-203-52 R:TR-180-52
Components
-
StemPromax MA-400 28.6*90*31.8mmD7:XF-827 alloy Ext:50mm
-
HandlebarPromax HB-3188 22.2*31.8*700mmD7:Promax HB-3188DB -W780
-
SeatpostSP-2003 30.9*350mm
-
SaddleVelo soft saddleD7:Selle Royal A054UE
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′5″ ~ 6′5″D7:5′3″ ~ 6′5″
-
Weight88.6 lb.
-
Max. payload capacity400 lb.
Geometry
Cobra -- 5'5" ~ 6'5"
D7 -- 5'3" ~ 6'5"
-
A – total length82.6Cobra:81.8
-
B – handlebar height42.9Cobra:44.5
-
C – handlebar length30.7Cobra:28
-
D – wheelbase51.1Cobra:52
-
E – wheel diameter30.3
-
F – minimum seat height30.3Cobra:20.9
-
G – maximum seat height37Cobra:30.4
-
H – chain stay length19.7Cobra:20
-
I – frame stack32Cobra:25
-
L – head tube length5.1Cobra:5.9
-
N – standover height30.7
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H383AEM 28.6*44*56*39.8
-
ForkInverted Fork 120mm lockout & rebound adjustableCobra:Guide-26”-TNL-95 95mm travel
-
ShockDNM A0-38RC rear shock 190*45mmCobra:EXA A5-RR1-KS 190*50mm
-
Front wheelM9CF-150 12G*150*15mm 26'' 36hCobra:MB016F-QR 13G*255*256m 26'' 36h
-
Rear wheelMD-147 12G 214L 48v 1000w Himiway hub motorCobra:MD-147 12G 214L 48v 750w Himiway hub motor
-
TiresKenda X Himiway K1277 26*4.5Cobra:CST roly poly 26*4.8
-
Battery48V 20Ah
-
Motor1000W brushless gear motorCobra:750W brushless gear motor
-
DisplayLCD display with Type-c chargerCobra:LCD display with USB charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: EB-01-242A-S1 170mm | Chain ring: 40T 104BCD narrow wide chainringCobra:Crank arm: EB-01-242A-S1 170mm Chain ring: 44T 104BCD CL55
-
FreewheelShimano CS-HG41.8 11-34TCobra:Shimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 122L
-
GroupsetShimano acera M3020 8sCobra:Shimano altus M310 7 speed
-
Front brakeTektro HD-E350 hydraulic brake
-
Rear brakeTektro HD-E350 hydraulic brake
-
RotorsF:TR-203-52 R:TR-180-52Cobra:Tektro TR180-24 F:180mm R:180mm
Components
-
StemXF-827 alloy Ext:50mmCobra:Promax MA-400 28.6*90*31.8mm
-
HandlebarPromax HB-3188DB -W780Cobra:Promax HB-3188 22.2*31.8*700mm
-
SeatpostSP-2003 30.9*350mm
-
SaddleSelle royal A054UECobra:Velo soft saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/25A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′3″ ~ 6′5″Cobra:5′5″ ~ 6′5″
-
Weight88.6 lb.
-
Max. payload capacity400 lb.
