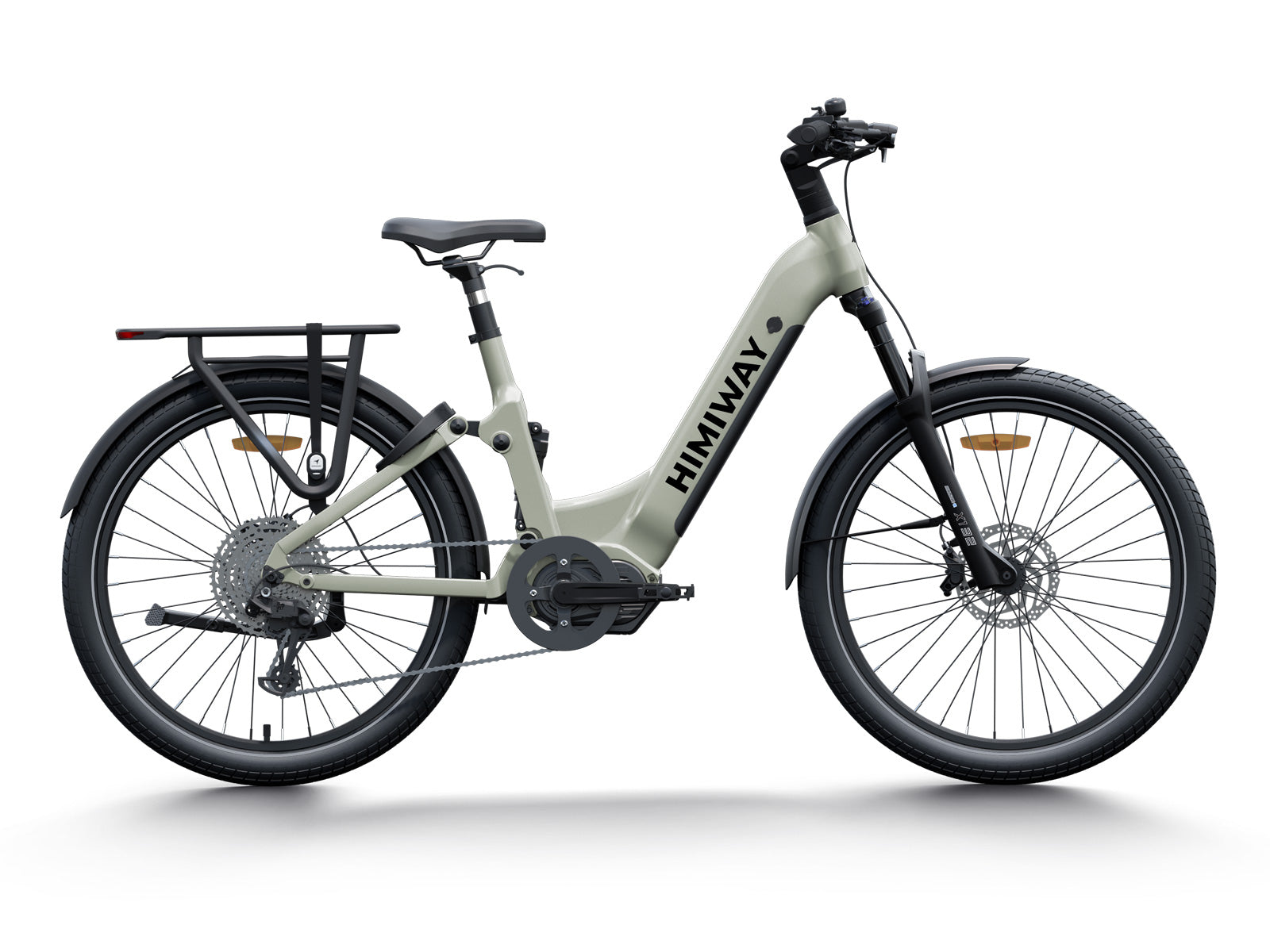

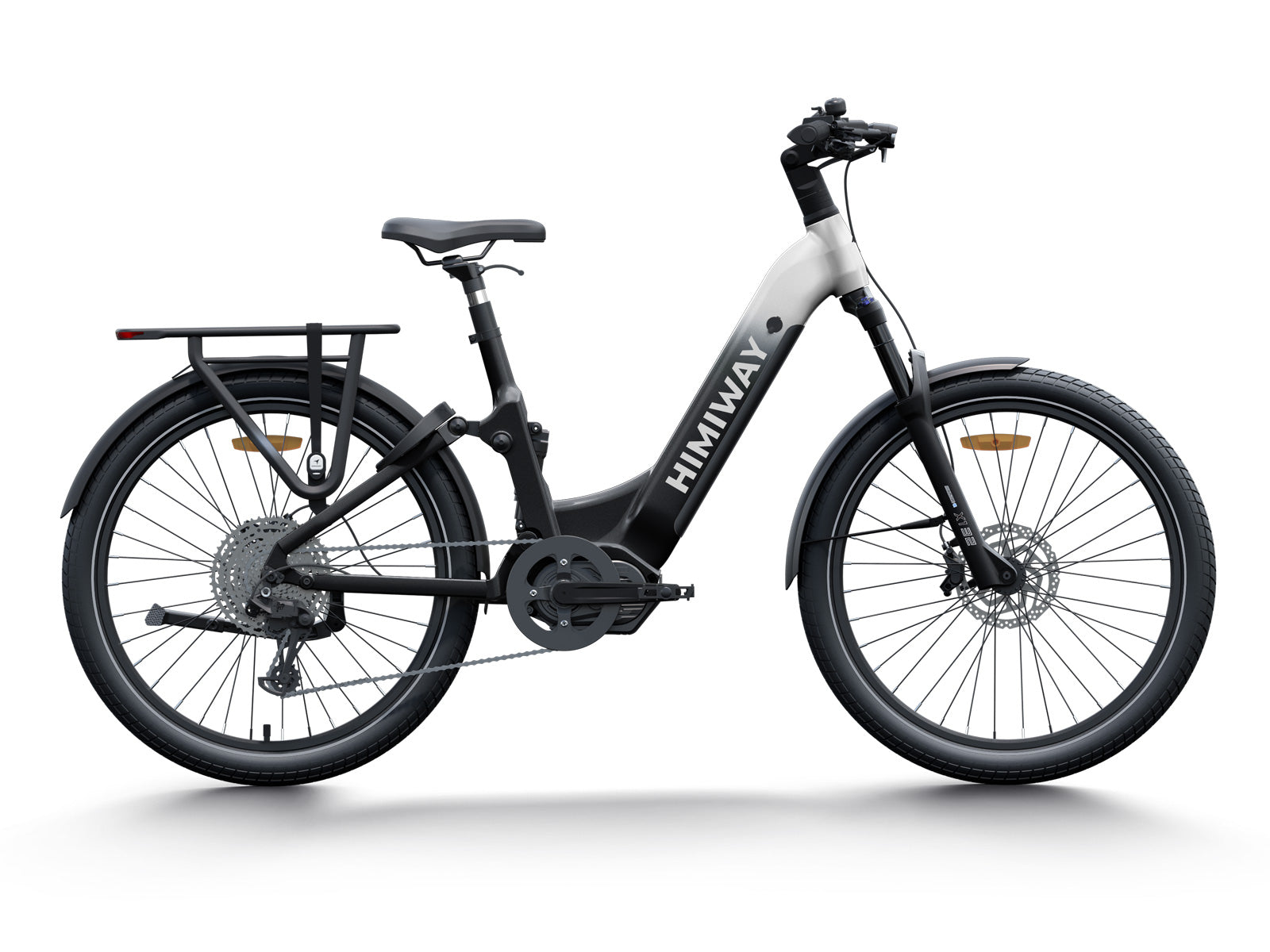

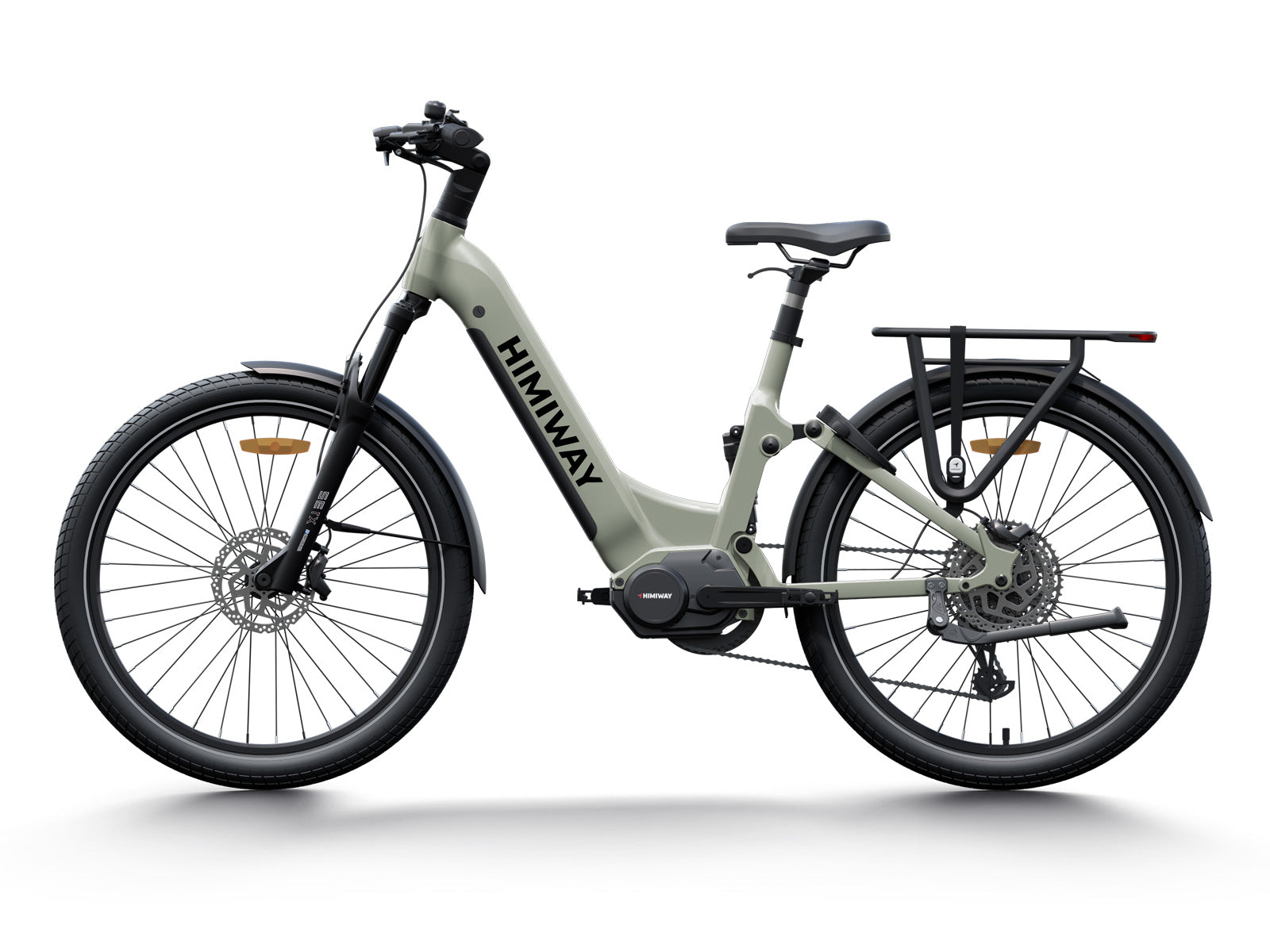

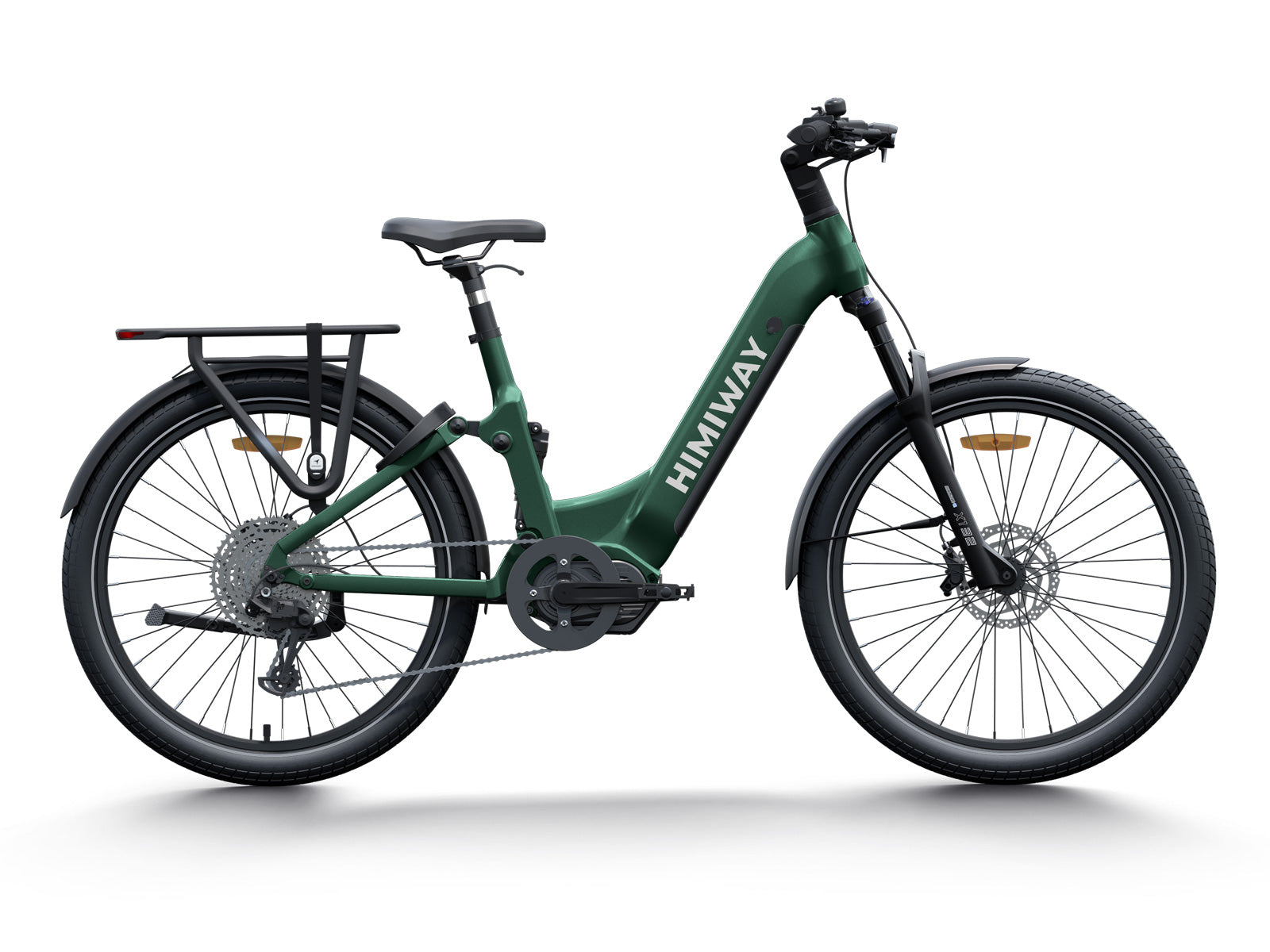

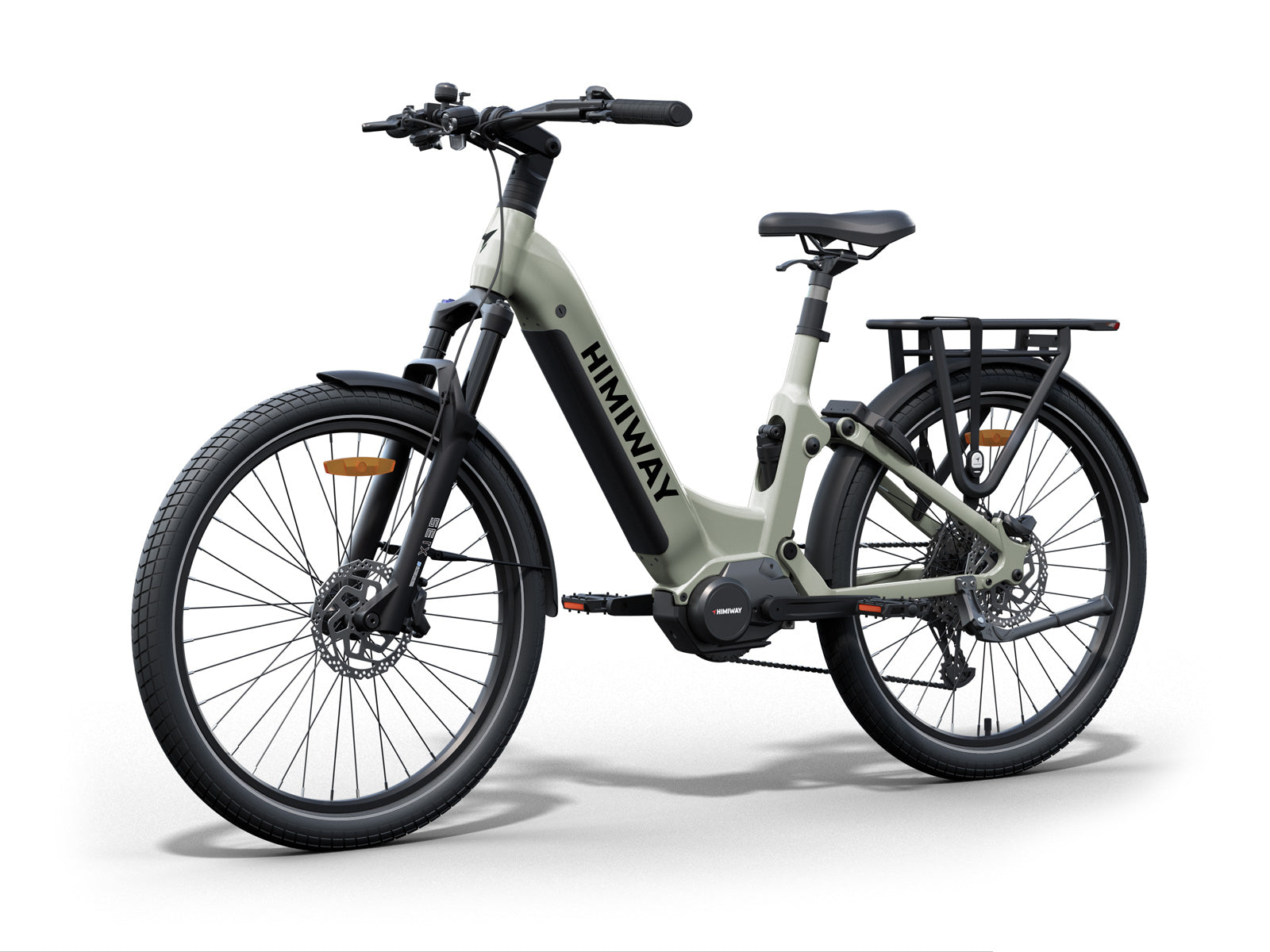

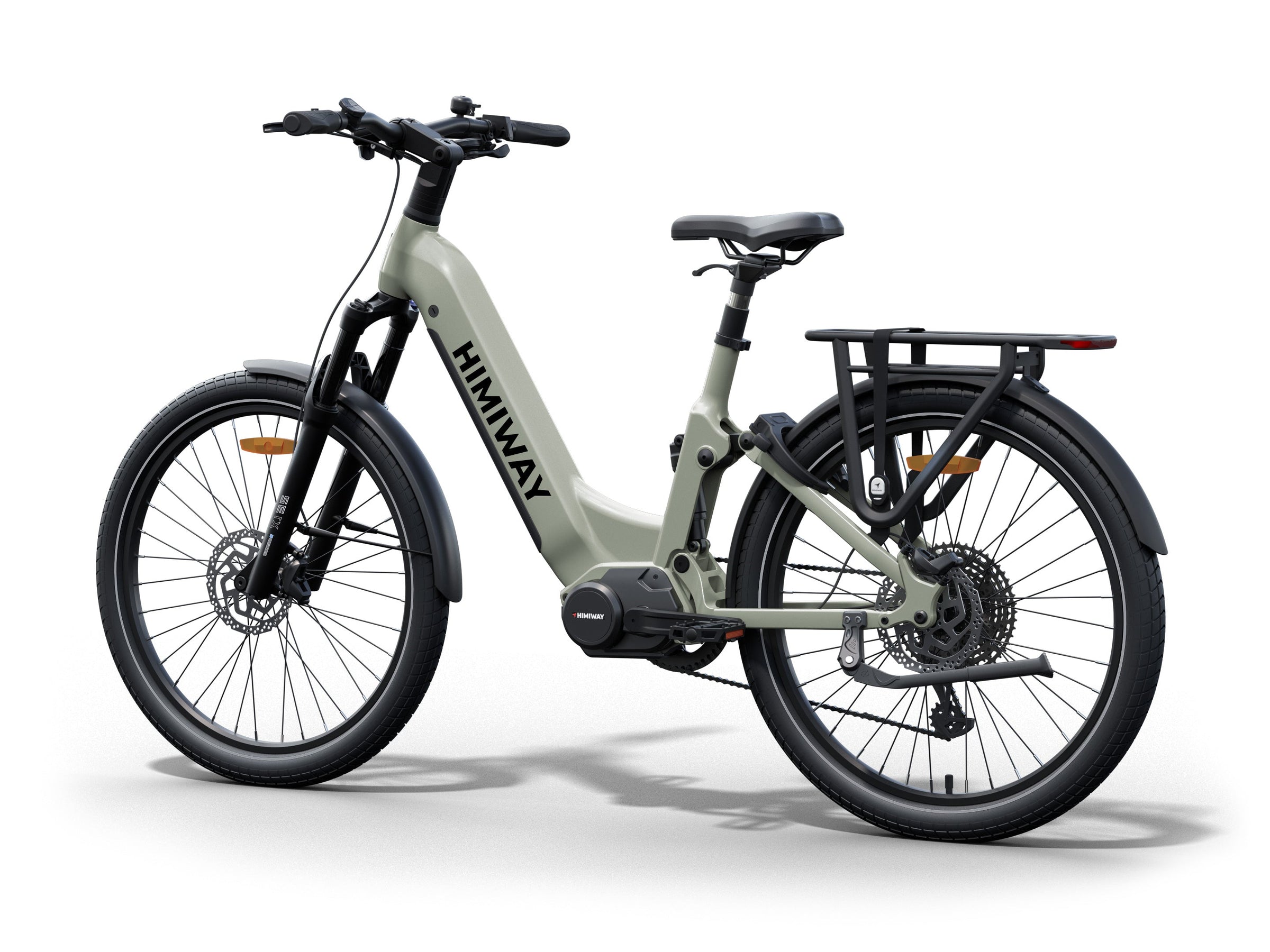

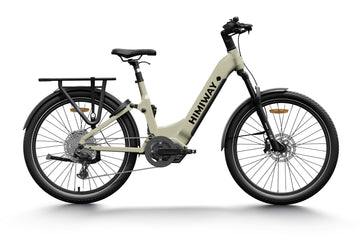

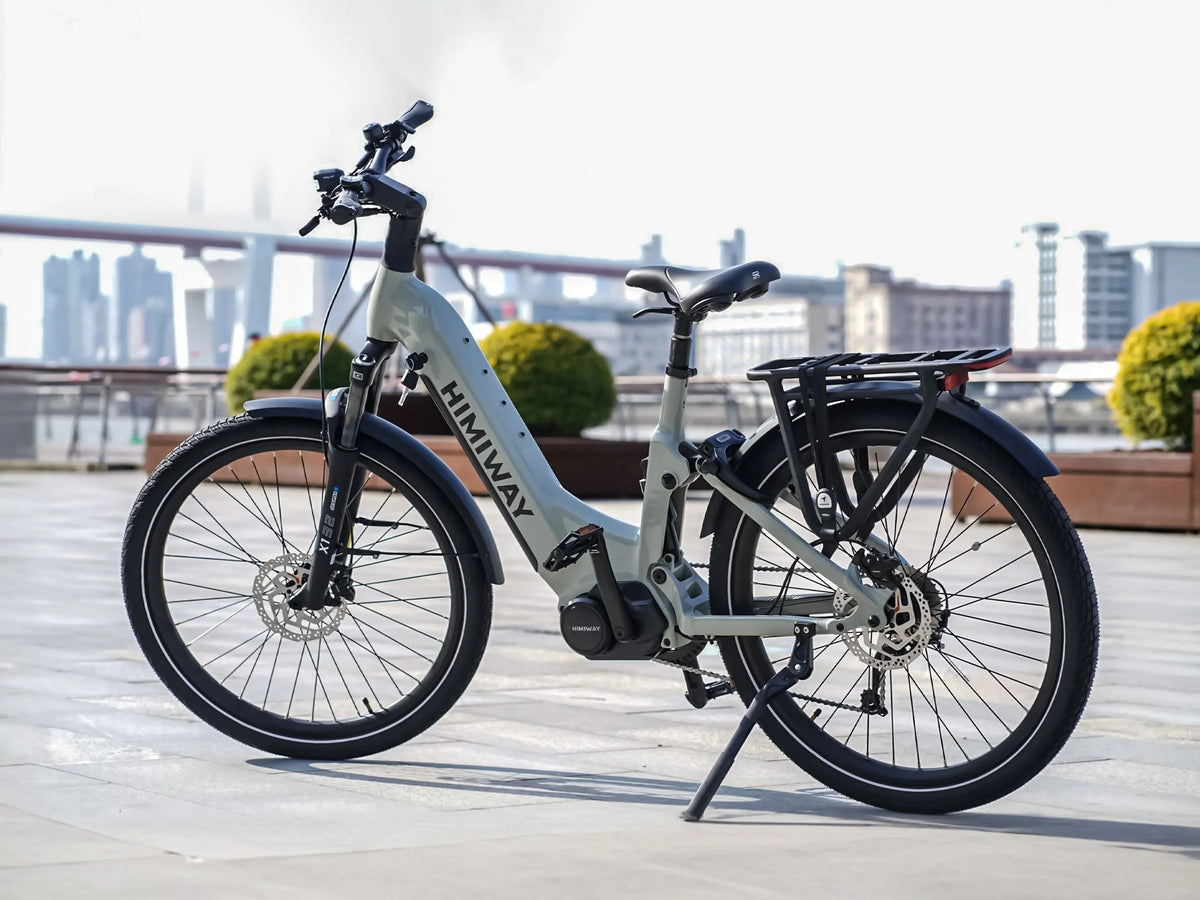

Himiway A7 Pro | Urban Electric Commuter Bike
-
Disponibilité: En stock
-
Shipping:Within 2 Business Days
Extra $200 off Any 2 Bikes (Excluding D3)
When the discount conditions are met, the discount amount will be deducted automatically during checkout.
Impossible de charger la disponibilité du ramassage
Technical Specifications
Geometry
-
A – total length76
-
B – handlebar height44
-
C – handlebar length27.2
-
D – wheelbase48
-
E – wheel diameter28.1
-
F – minimum seat height24
-
G – maximum seat height28.7
-
H – chain stay length19.3
-
I – frame stack19.2
-
K – effective top tube length24
-
L – head tube length5.3
-
M – head angle70°
-
N – standover height21.6
Specification
-
Frame6061 Aluminum frame
-
HeadsetTOPYCWZ-5662-01 52*52*39.8
-
ForkSR-SUNTOUR X1-BOOST 120mm travel
-
ShockDNM AO-06 /165*38mm BK
-
Front wheelRim: DM-350 27.5"*13G*36H SV | Spoke: 13G 263L STAINLESS(304M) | Hub: DM41SB-B15 13G*36H*110
-
Rear wheelRim: DM-350 27.5"*13G*36H SV | Spoke: 13G 265L STAINLESS(304M) | Hub: M102R-148 12*13*36*148
-
TiresSCHWALBE SUPER MOTO-X 27.5*2.4
-
BatteryLG 48V 15Ah
-
MotorANANDA M100 48V-500W mid-drive motor
-
DisplayBIGSTONE M300C-TFT
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: PROWHEEL A00C 170mm 44A-S2-CL41 BCD104 | Chain ring: PROWHEEL 44T 104BCD Narrow wide chainring
-
CassetteShimano CS-HG201-9 11-34T
-
ChainKMC E9 120L
-
GroupsetShimano M3100SGS ALIVO-9S
-
Front brakeShimano MT200 hydraulic brake
-
Rear brakeShimano MT200 hydraulic brake
-
RotorsShimano RT26 F:180mm R:180mm
Components
-
StemPromax Alloy ssabk
-
HandlebarMTB-AL-325BT/Φ31.8*/W:680/6°
-
SeatpostESP-AD635 31.6*350mm | travel:100mm
-
SaddleDDK 153MF
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5′5″ ~ 6′5″
-
Weight77 lb.
-
Max. system weight300 lb.
-
4-bar Linkage
Suspension
-
500 W
Mid-Drive Motor
-
Torque
Sensor For D5 Ultra
-
Hydraulic
Brakes For Upgrade & Premium
-
9 Speed
Shimano Derailleur
-
720 Wh
Samsung/LG Battery
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
27.5"x 2.4 "
Commuter Tires
- 1 - For D5 Ultra
- 2 - For Upgrade & Premium
- 3 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
"Urban electric bikes are for everyone: the city commuter who wants to get to work feeling fresh, the leisure cyclist looking to explore further on two wheels, someone completely new to cycling keen to get fit."
"One of the standout features of the Himiway A7 Pro is its 500W mid-drive motor. "
"Himiway has launched the A7 Pro e-bike for commuters in the US and Europe. The new model features a torque sensor, a full suspension system, and a range of up to 50 miles (~80 km)."

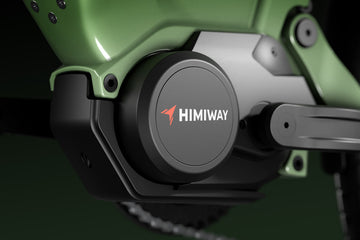

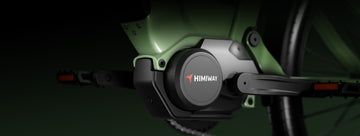

500W Torque-Sensing Mid-Motor
M100
Mid-Drive MotorTorque
SensorVideo
M100Equipped with a responsive torque-sensing mid-motor, the A7 Pro offers swift, powerful ascents and quick starts, ideal for challenging terrains.
-
500 W
Mid-Drive Motor
-
130 Nm
Torque

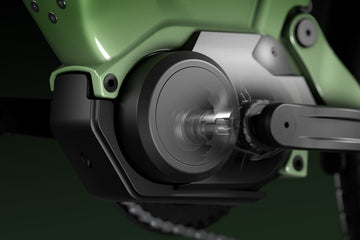

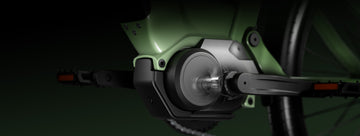

The A7 Pro's torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.
Fusion Tech
Superior craftsmanship for elite performance.

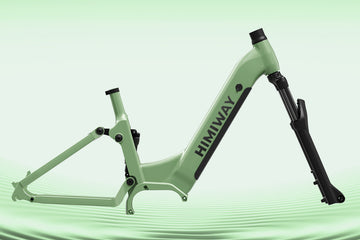

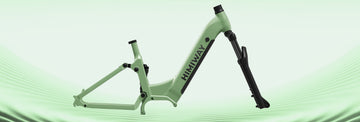

Sleek Integration

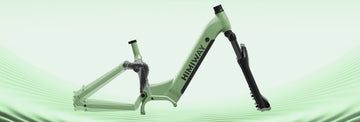

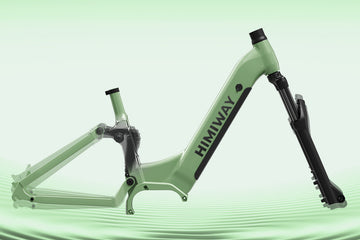

Aerospace-grade AluminumFour-Bar
Linkage SuspensionFlawless aerospace-grade aluminum frame, expertly polished for a seamless, weld-free finish.
-
300 Ib.
Payload Capacity
-
77 lb.
with Battery
Seamlessly blends mountain bike technology into urban cycling, enhancing comfort, safety, and providing a smoother ride by effectively absorbing shocks and reducing vibrations.
Long Range Ebike Expert

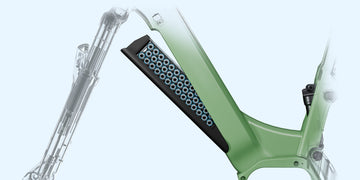

720Wh High-Efficiency Battery
720Wh
48V 15AhBMS
Ensure your SafetyHigh-capacity 720Wh LG battery, 48V 15Ah, detachable and built with durable 21700 Li-ion cells for extended range and performance
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
The BMS (battery management system) is critical to the battery’s safe operation, overall performance, and longevity. If it detects any unsafe conditions, the BMS shuts the battery down to protect the lithium-ion cells and the rider.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
Temperature Control
Enhanced Safety

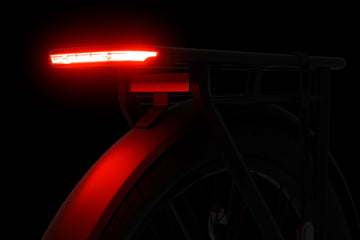

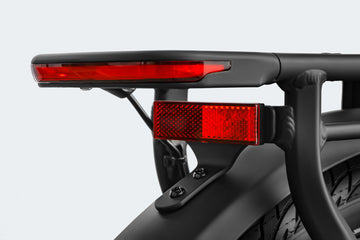

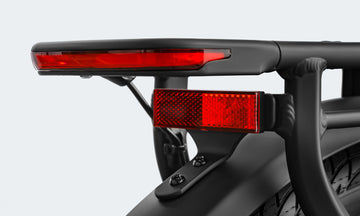

Auto-Illuminating Brake Light
Frame-integrated taillights illuminate automatically upon braking, enhancing safety and visibility for night riding.
-
Highlight
At braking -
Always On
Night

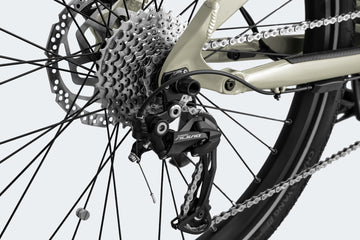

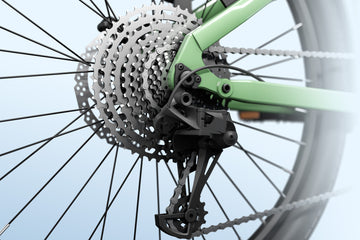

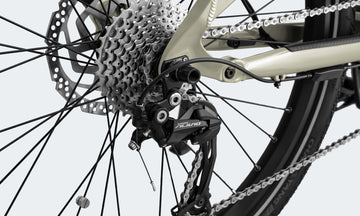

Shimano
9 Speed Gear Shift System
Versatile shifting for optimal control in diverse riding conditions, complemented by a responsive pedal-assist system to tailor your ride perfectly.

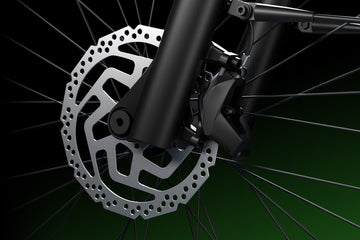

Shimano

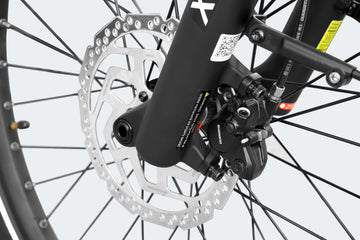

Hydraulic disc brake
Exceptional, lasting stopping power with minimal maintenance for safer, cost-effective riding.
-
Hydraulic
Braking -
180mm
Disc brake

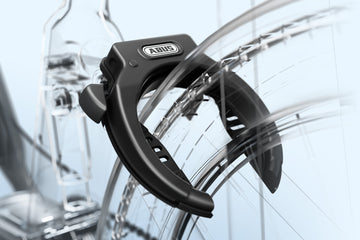

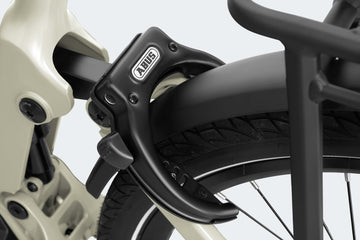

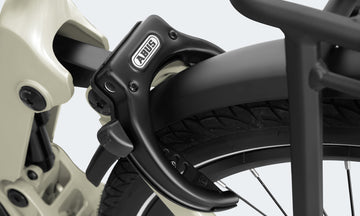

ABUS Lock
Secure with a Click
Robust, integrated rear-wheel lock for enhanced security. Designed for theft deterrence and resilience against daily wear and extreme weather.

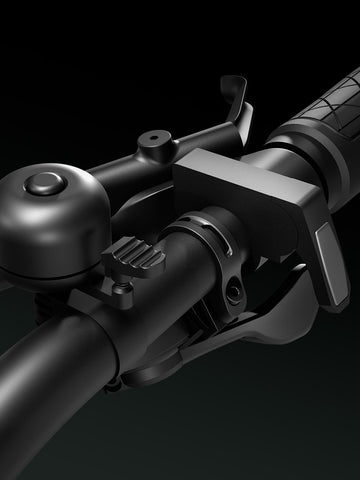

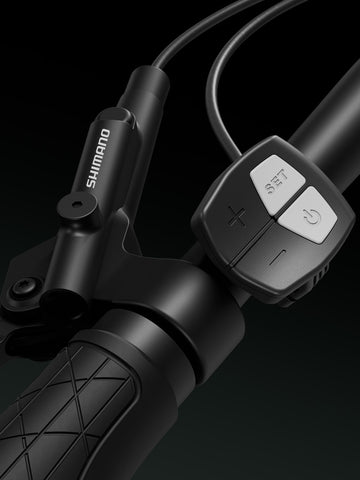

Handlebar Control
Integrated Display
3.5" full color digital screen
Control
on-off \ gear shift \ settings

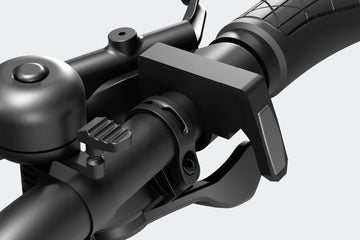

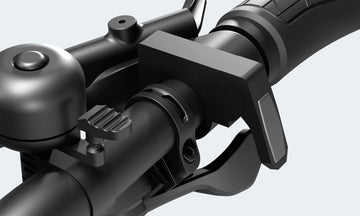

Throttle
Thumb throttle \ Shimano shift \ Bell

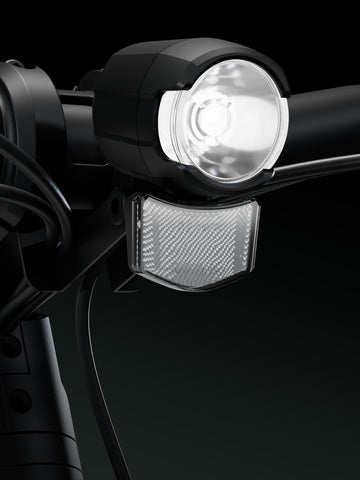

48V Spotlight
500LM luminosity
Refined in Every Detail
The A7 PRO blends peak performance, supreme comfort, and classic style for an unparalleled riding experience.

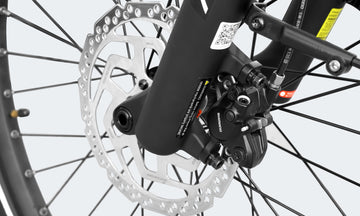

180mm Hydraulic Disc Brakes
Robust Abus Lock
Integrated Safety Taillight
Thumb Throttle
Shimano 9-Speed Gear Shift

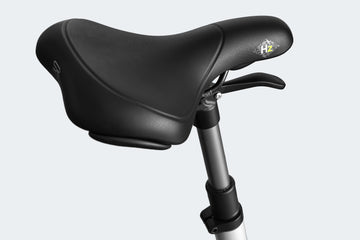

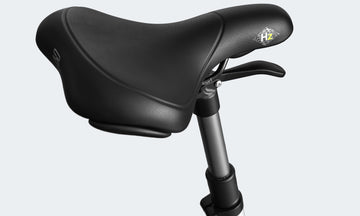

Elite Comfort Saddle

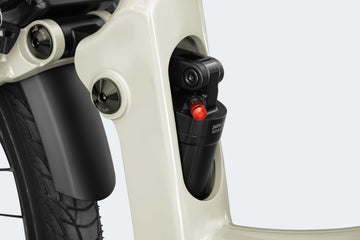

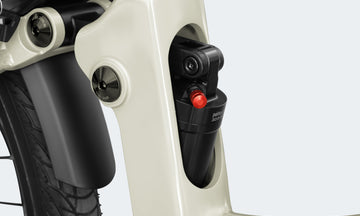

Advanced Four-Bar suspension
Technical Specifications
Geometry
-
A – total length76
-
B – handlebar height44
-
C – handlebar length27.2
-
D – wheelbase48
-
E – wheel diameter28.1
-
F – minimum seat height24
-
G – maximum seat height28.7
-
H – chain stay length19.3
-
I – frame stack19.2
-
K – effective top tube length24
-
L – head tube length5.3
-
M – head angle70°
-
N – standover height21.6
Specification
-
Frame6061 Aluminum frame
-
HeadsetTOPYCWZ-5662-01 52*52*39.8
-
ForkSR-SUNTOUR X1-BOOST 120mm travel
-
ShockDNM AO-06 /165*38mm BK
-
Front wheelRim: DM-350 27.5"*13G*36H SV | Spoke: 13G 263L STAINLESS(304M) | Hub: DM41SB-B15 13G*36H*110
-
Rear wheelRim: DM-350 27.5"*13G*36H SV | Spoke: 13G 265L STAINLESS(304M) | Hub: M102R-148 12*13*36*148
-
TiresSCHWALBE SUPER MOTO-X 27.5*2.4
-
BatteryLG 48V 15Ah
-
MotorANANDA M100 48V-500W mid-drive motor
-
DisplayBIGSTONE M300C-TFT
-
ThrottleThumb throttle
-
SensorsTorque sensor丨shifting sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: PROWHEEL A00C 170mm 44A-S2-CL41 BCD104 | Chain ring: PROWHEEL 44T 104BCD Narrow wide chainring
-
CassetteShimano CS-HG201-9 11-34T
-
ChainKMC E9 120L
-
GroupsetShimano M3100SGS ALIVO-9S
-
Front brakeShimano MT200 hydraulic brake
-
Rear brakeShimano MT200 hydraulic brake
-
RotorsShimano RT26 F:180mm R:180mm
Components
-
StemPromax Alloy ssabk
-
HandlebarMTB-AL-325BT/Φ31.8*/W:680/6°
-
SeatpostESP-AD635 31.6*350mm | travel:100mm
-
SaddleDDK 153MF
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5′5″ ~ 6′5″
-
Weight77 lb.
-
Max. system weight300 lb.
Reviews

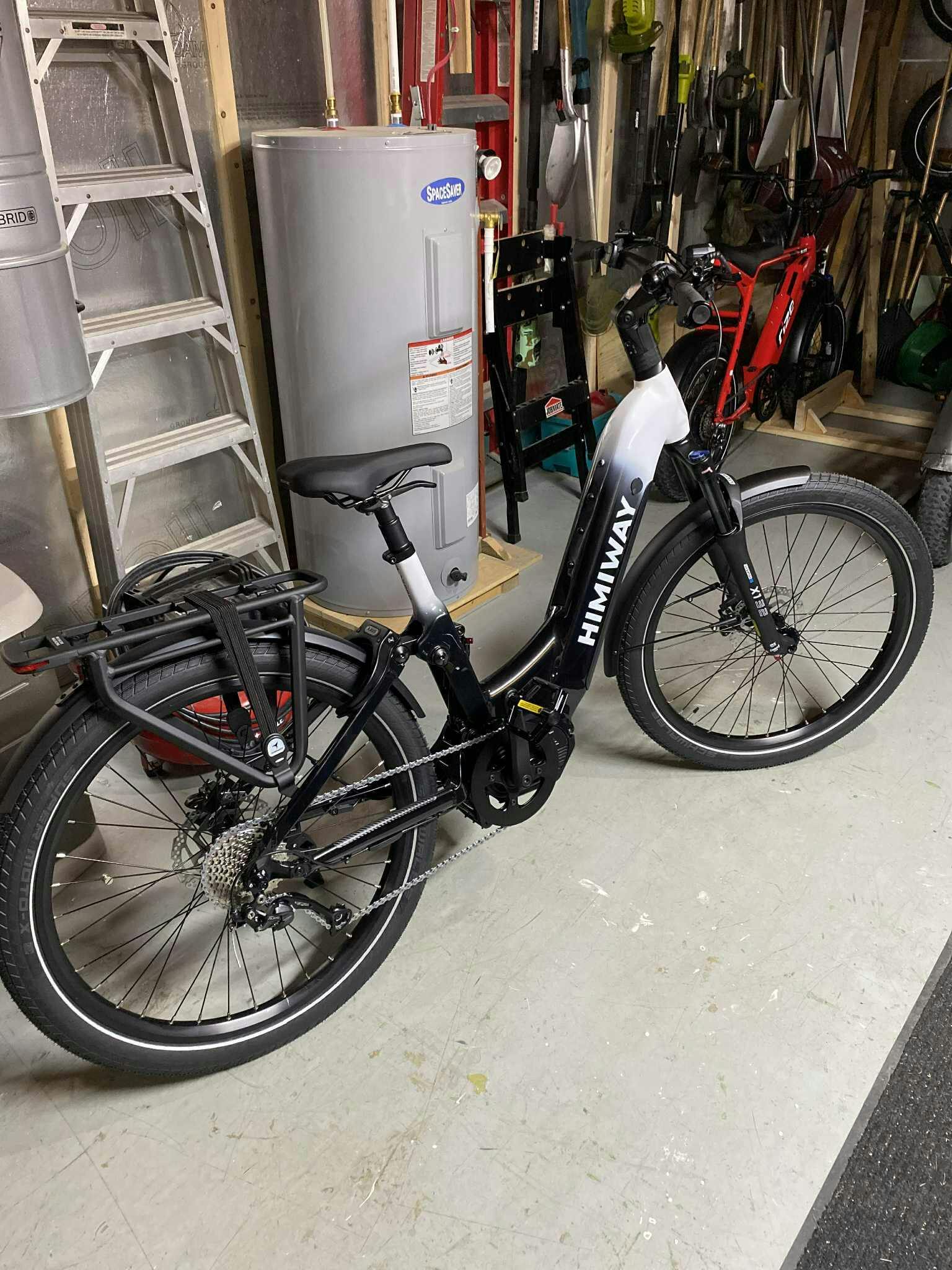

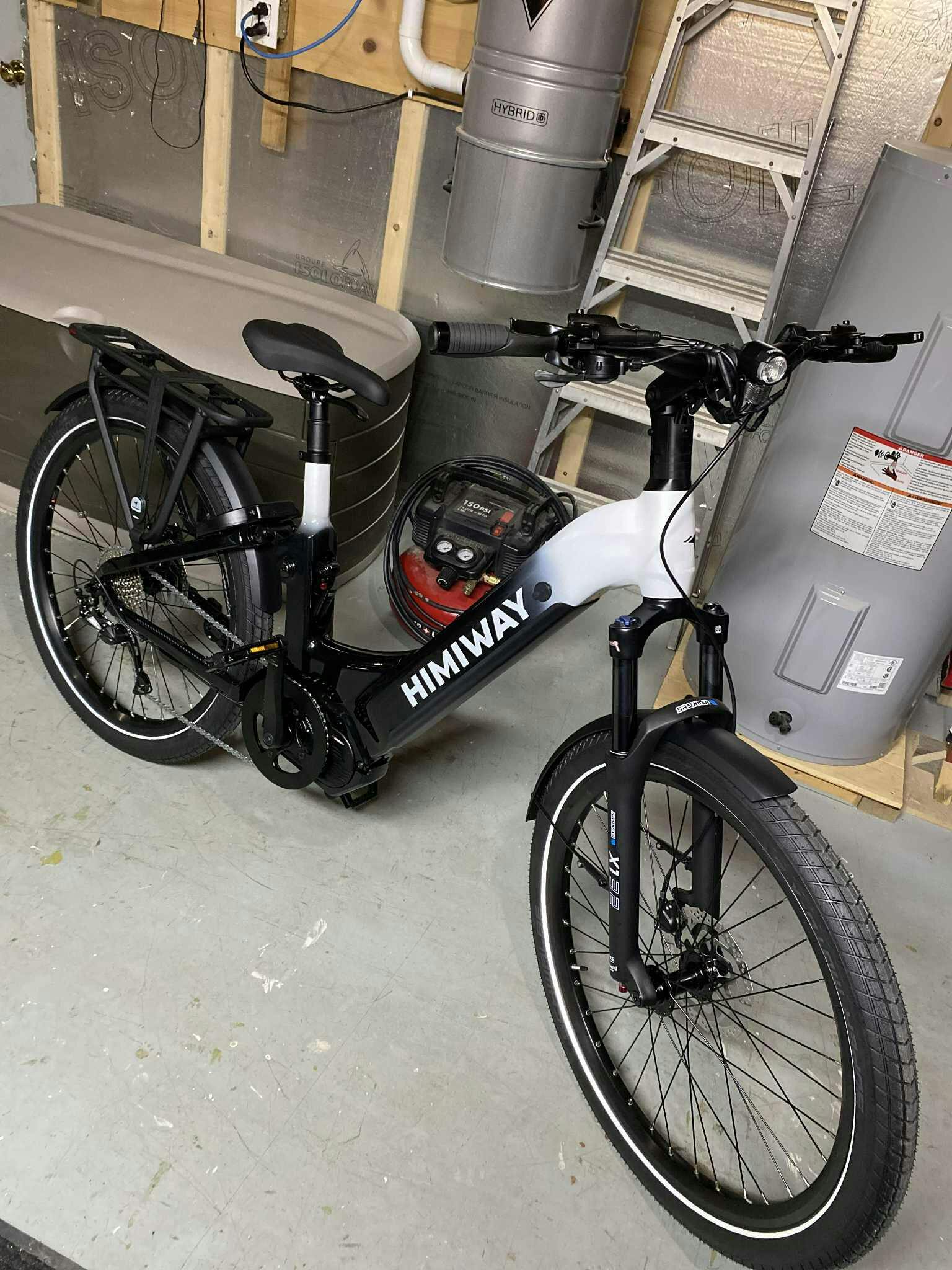

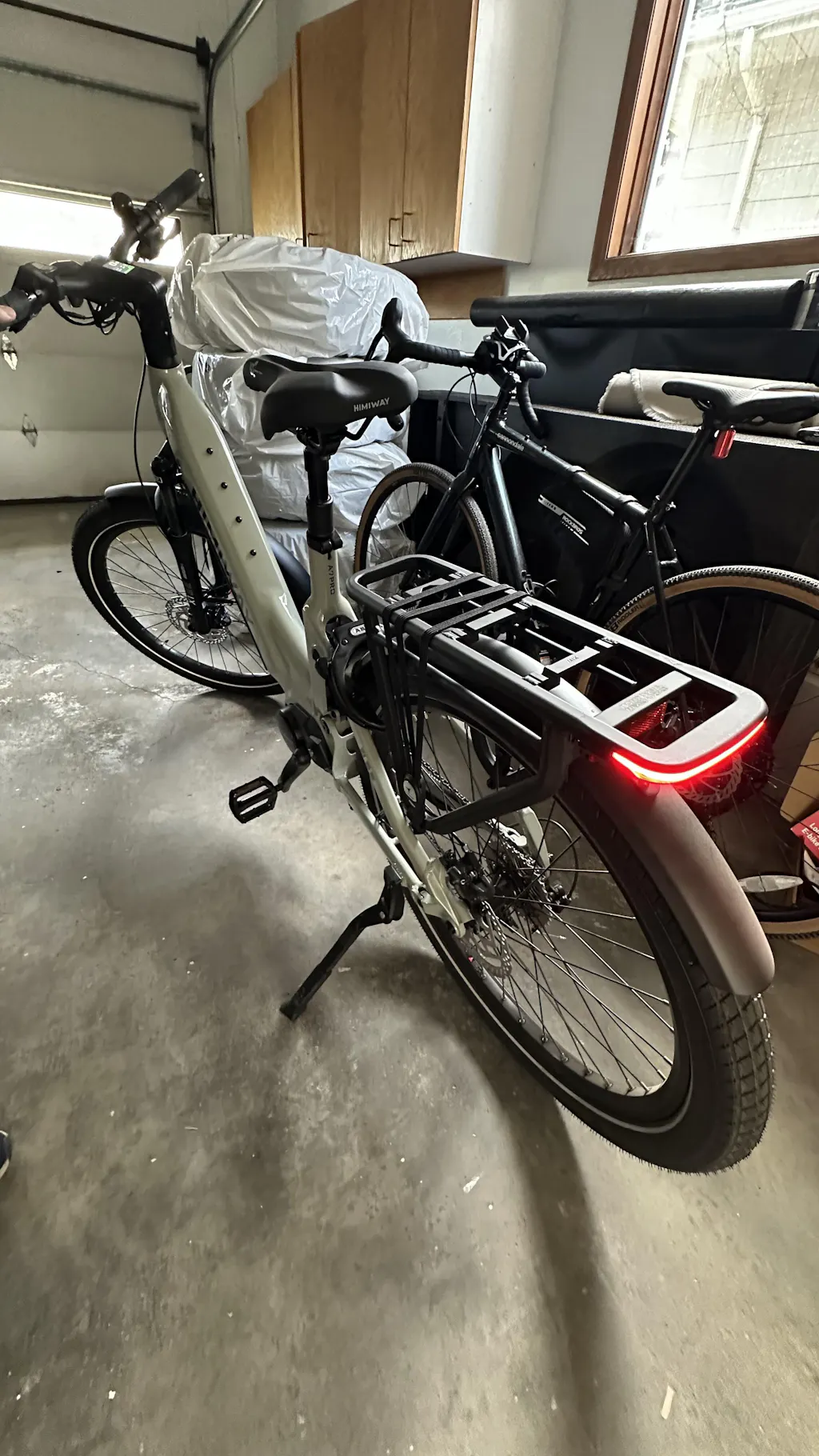

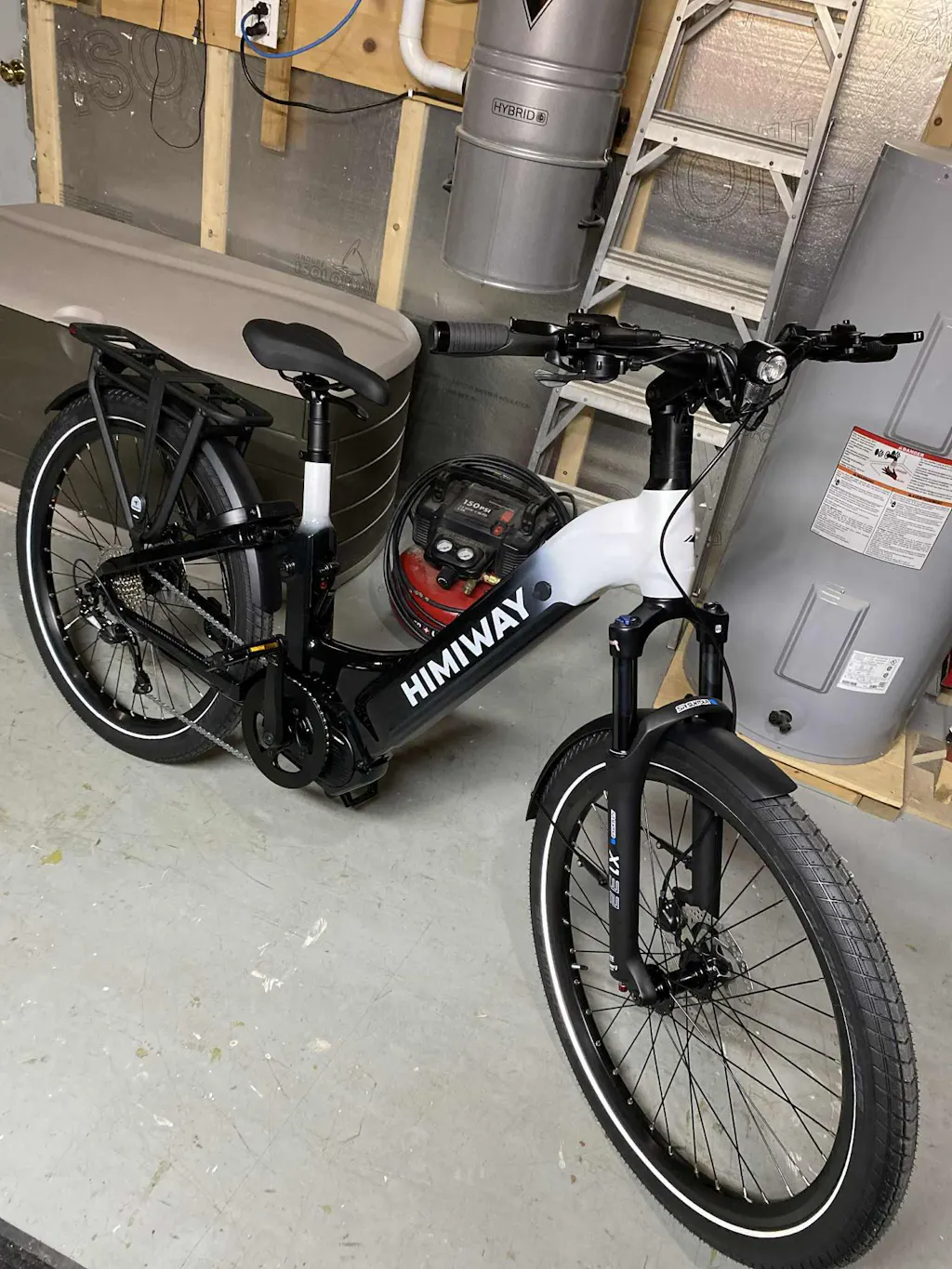

This is my 2nd Himiway bike and was impressed by the quality of the build on both. The A7 Pro is crazy comfortable with adjustable suspension and the pedal assist is more responsive than my previous model.
The packing is also improved, bike arrived in perfect condition. Good quality product, go ahead..you know you want one…lol

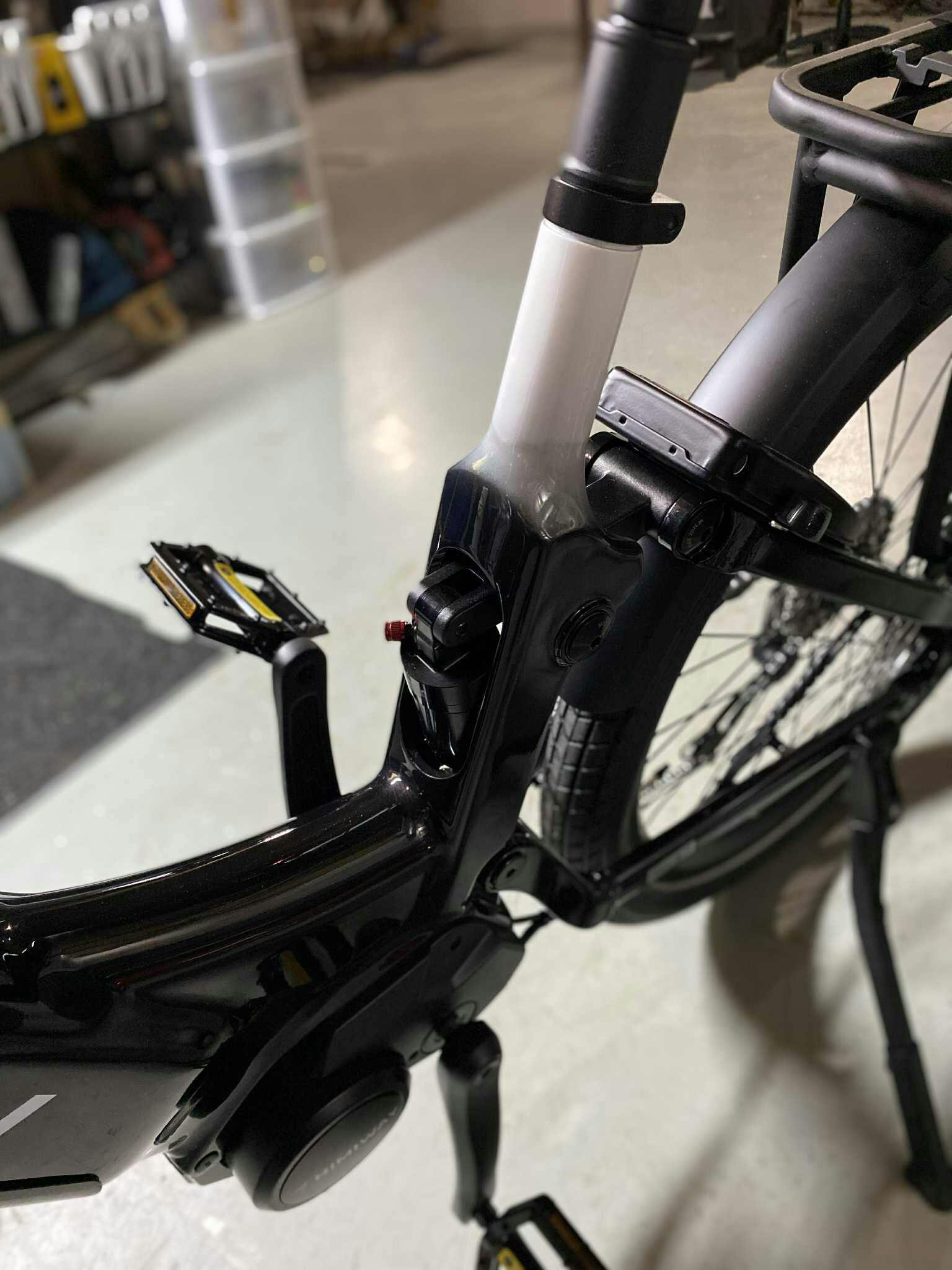

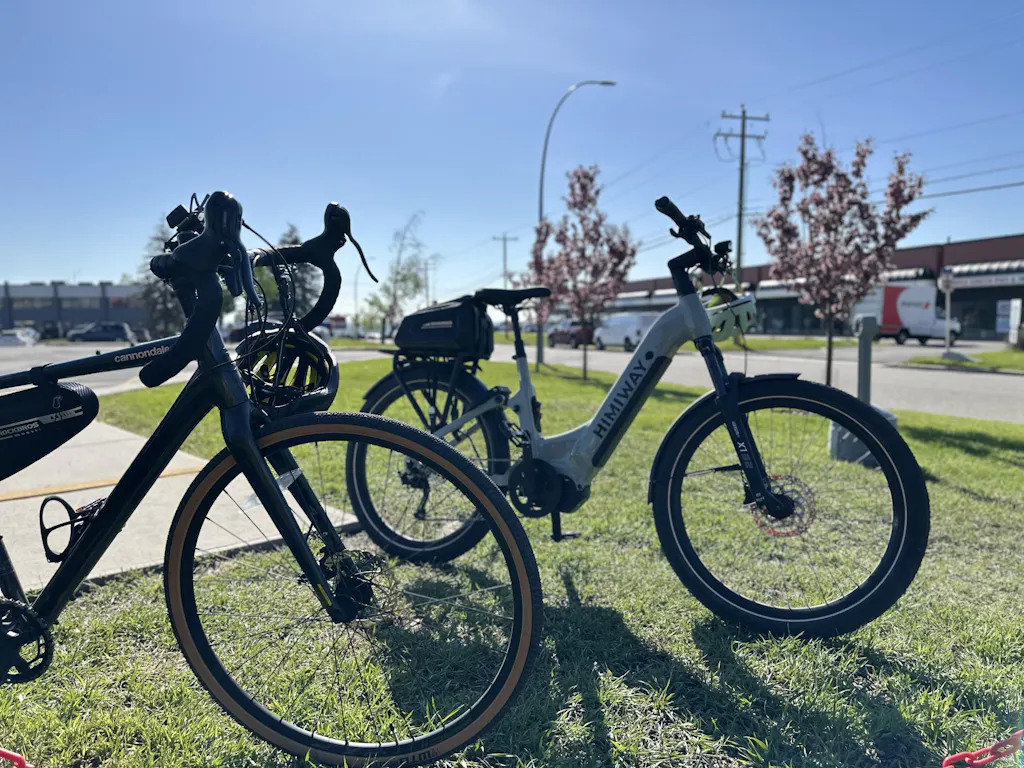

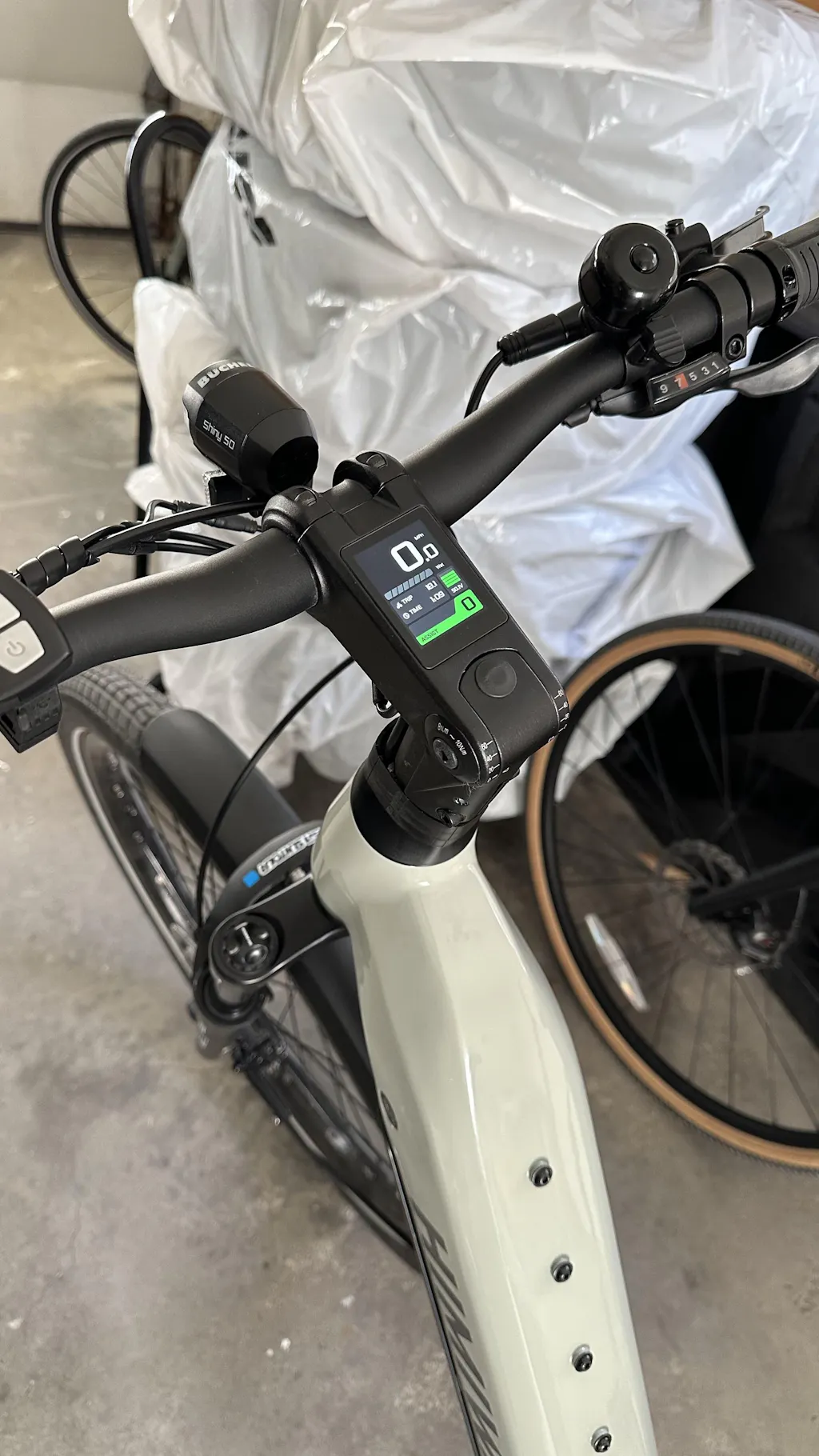

I have put over 800 km. Km on my Himiway A7 pro. It is an outstanding bike in every way. The full adjustable front and rear suspension makes for a very comfortable ride and eliminates the road bumps. The torque sensor works well and acceleration feels very natural. There is a lot more torque on this bike than most European and American models and my friends cannot keep up with me. The 9 gears and 5 levels of assist work well and allows for plenty of options. The built in front and rear lights illuminate well. The LCD screenhas plenty of option is easy to read and is built into the frame it is inobtrusive it does not protrude over the handle bars like most other ebikes.
The built in wheel lock is a nice add-on for security purposes and works well. There are high quality puncture resistant tires on the bike and large disk brakes for good stopping power.many other features and “high end” components.
Highly recommended - you will not be disappointed

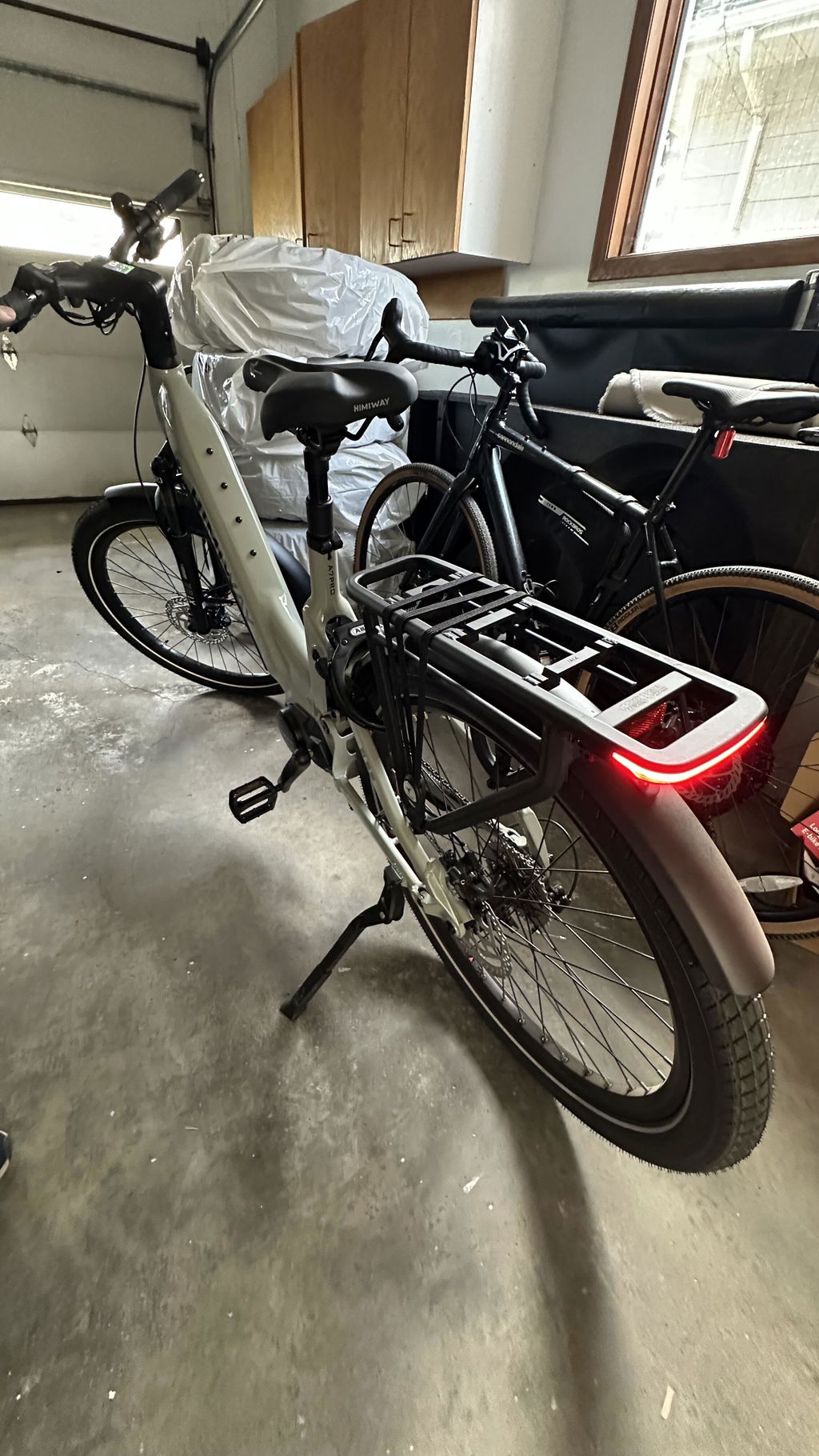

The A7 Pro sits between an electric mountain bike and commuter bike. It is powerful and capable for off-roading and eating up the bumps while not quite putting you into the upright cruiser position for commuting. The cargo capability allows me to bring extra clothing, books and laptop wherever I go. A bottle cage is needed on the next version. The range is very impressive as I have been able to get over 80km on a charge with various power needs along the way and the 2amp charger should be used overnight as it takes about 8 hours from a flat battery.
