Geometry
D7
Cobra
Recommended Height:
5'3" ~ 6'5"
5'3" ~ 6'5"
- A -- Total Length 78.7
- B -- Handlebar Height 42.7
- C -- Wheelbase 52.6
- D -- Minimum Seat Height 20.9
- E -- Maximum Seat Height 35.4
- F -- Chain Stay Length 20
- G -- Standover Height 33
- H -- Top Tube Length 24.4
- I -- Wheel Diameter 28.7
- J -- Head Tube Length 5.5
- K -- Handlebar Length 30.7
Recommended Height:
5'4" ~ 6'4"
5'4" ~ 6'4"
- A -- Total Length 82.6
- B -- Handlebar Height 42.9
- C -- Wheelbase 51.1
- D -- Minimum Seat Height 30.3
- E -- Maximum Seat Height 37
- F -- Chain Stay Length 19.7
- G -- Standover Height 33
- H -- Top Tube Length 24
- I -- Wheel Diameter 30.3
- J -- Head Tube Length 5.1
- K -- Handlebar Length 27.6
Specification
D7
Cobra
- Battery 48V 20Ah Samsung/LG lithium battery
- Range 60-80miles
- Motor 1000W mid-drive motor
- Total Payload Capacity 400 lb.
- Recommended Rider Heights 5′3″ ~ 6′5″
- Charger US standard 3.0 A smart charger
- Controller 48V/30A
- Display LCD display with USB charging
- Weight 88.6 lb.
- Pedal Assist Intelligent 0~5 level pedal assist
- Battery 48V 20Ah Samsung/LG lithium battery
- Range 60-80miles
- Motor 1000W mid-drive motor
- Total Payload Capacity 400 lb.
- Recommended Rider Heights 5′4″ ~ 6′4″
- Charger US standard 3.0 A smart charger
- Controller 48V/30A
- Display LCD display with USB charging
- Weight 88 lb.
- Pedal Assist Intelligent 0~5 level pedal assist
Components
D7
Cobra
- Tires 26″ x 4.8″ Kenda x Himiway fat tires
- Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
- Rear Light Battery powered bike light
- Cassette 10 speed 11-48T
- Groupset Shiminao Cues SL-U6000 10 speed
- Brake Tektro 180mm hydraulic brakes
- Chain KMC 10-SPEED STEEL SILVER Chains
- Stem 3D forged alloy Ext:50mm
- Crank 44T*170MM 4-jaw L/R forged alloy
- Front Fork 220MM Travel air suspension with oil pressure lockout
- Rear Shock RockShox Deluxe Rear Shocks
- Throttle Thumb throttle
- Pedal Alloy pedal with reflectors
- Bike Frame 6061 Aluminum frame
- Front Light 48V LED light
- Saddle Hydraulic lift seatpost
- Seat Post 30.9*350mm Alloy Seatpost
- Kickstand Heavy-duty aluminum
- Spokes 13 Guage-255
- Tires 26″ x 4.8″ CST fat tires
- Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
- Rear Light Battery powered bike light
- Cassette 10 speed 11-34T
- Groupset Shiminao Deore M6000 10 speed
- Brake Tektro 180mm hydraulic brakes
- Chain KMC 10-SPEED STEEL SILVER Chains
- Stem MA-400 28.6*90*31.8MM
- Crank 44T*170MM 4-jaw L/R forged alloy
- Front Fork 100MM Travel air suspension with oil pressure lockout
- Rear Shock 190MM Travel DNM A0-38RC air rear shock
- Throttle Thumb throttle
- Pedal Alloy pedal with reflectors
- Bike Frame 6061 Aluminum frame
- Front Light 48V LED light
- Saddle SR saddle
- Seat Post 30.9*350mm Alloy Seatpost
- Kickstand Heavy-duty aluminum
- Spokes 13 Guage-255
The power of wildest dreams

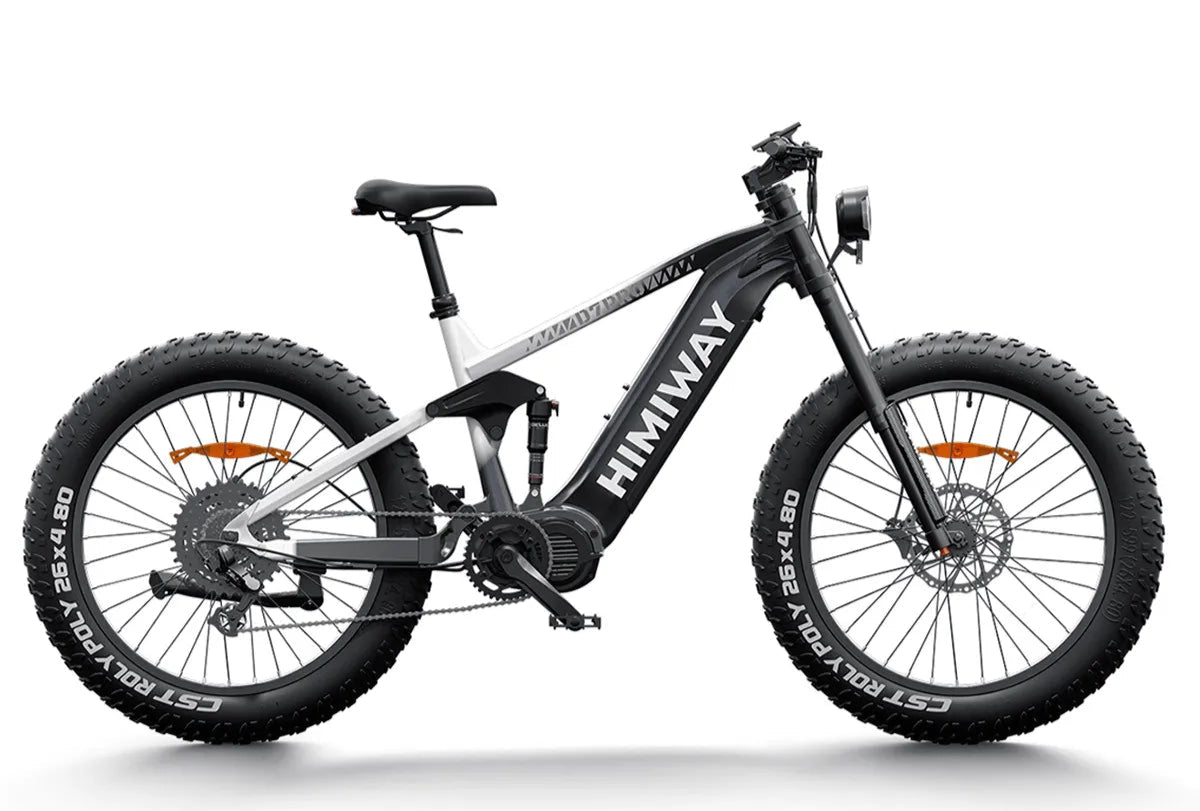

Himiway Cobra Pro
Himiway Cobra Pro is an electric dirt bike, electric mountain bike, and electric hunting bike all in one. It is equipped with the Bafang mid-drive motor, which is considered one of the leading manufacturers of electronic drive systems. A 1300W of peak motor power will lead you conquer the roughest venture. A four-bar link suspension system with a four-sided polygon design promotes superior vibration absorption. As the first middle-class e-bike on the U.S. market with four-bar linkage suspension, Himiway Cobra Pro keeps you safe and give you the best riding experience on your toughest exploration.
The power of wildest dreams
HHimiway Cobra Pro is an electric dirt bike, electric mountain bike, and electric hunting bike all in one. It is equipped with the Bafang mid-drive motor, which is considered one of the leading manufacturers of electronic drive systems. A 1300W of peak motor power will lead you conquer the roughest venture. A four-bar link suspension system with a four-sided polygon design promotes superior vibration absorption. As the first middle-class e-bike on the U.S. market with four-bar linkage suspension, Himiway Cobra Pro keeps you safe and give you the best riding experience on your toughest exploration.
Upgraded 6061 Aluminum
Frame
1000W
Mid-drive Motor
48V 20Ah
Samsung/LG Battery
100~128 KM
KM per Charge (estimate)
Max 32KM/H
Legally required in Canada
26*4.8 Super Fat Tires
True 4-bar Linkage
Torque Sensor
UL Certification
1000W Mid-Drive Motor
Himiway’s high-end geared hub motor is equipped with the latest updated inner ring, enabling high-temperature resistance and better heat dissipation. The inner ring reduces the motor magnets’ attenuation speed to ensure longer life expectancy. When powering up steep hills or accelerating quickly from a dead stop, the geared hub provides massive amounts of torque. With 1000W of peak motor power, you can easily conquer the most rugged terrains.
1000W
Motor Power
160Nm
Max Motor Torque
LCD Color Display
Speed, mileage, power, etc. will provided by backlight display.
Battery Capacity
A fuel gauge for your electrons.
Odometer
Calculate how many miles you have ridden
Pedal-Assist Level
Pedal assistance power adjustment.
Speedometer
Can be set to current speed, max speed, or average speed.
USB Charging
Charge your dying cell phone.
Wattmeter
Displays motor power output in real-time.
Four-Bar Linkage Suspension & Coil Suspension
Himiway Cobra is the first e-bike on the Canadian market with four-bar linkage suspension technology. The four-bar linkage represents a four-sided polygon: the chain stay, seat stay, rocker, and seat tube. These parts specialize in absorbing both rear-upward force and vibrations, while the coil suspension ensures front stability. Both suspensions will offer your safety in the toughest riding conditions.
Upgraded 6061 Aluminum Frame & Fully Integrated Battery Design
Himiway bikes are famous for high-quality 6061 aluminum for the frame to give the bike unparalleled durability. The design of the reserved fork accommodates wider tires, which allow you to upgrade to 4.8-inch tires. The integrated design protects from inclement weather, eliminating up to 98% of common mechanical failures.
48V 20Ah Samsung/LG Lithium-ion Battery
Himiway Cobra Pro combines the new Samsung/LG battery technology with a 5000mAh single cell capacity, which is in a smaller size but with larger diversity. This 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes compared with 3500mAh cells made of nickel, cobalt, and manganese. A single charge can last up to 100 KM on purely electric power and 128+ KM with pedal assist. The battery will maintain 80% capacity after 1000 charges.
100~128 KM(60~80 Mi)
Per Charge
960 Wh
Total Battery Capacity
5000mAh
Single Cell Capacity
7 hours
Time Until Fully Charged
THUMB THROTTLE
The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Cobra pro.
Selle Royal Saddle
The Selle Royal Saddle is equipped with a comfortable design specially made for pressure relief.
48V Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to ensure your safety while riding at night.
SHIMANO 10 SPEED GEAR SHIFT SYSTEM
The Shimano 10-speed gear shift system provides you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey. It can increase the range of a single charge by up to 15% if you use this system accurately.
Updated 6061 Aluminum Frame
Himiway bikes are equipped with higher-quality materials for the frame, which contributes to the solidity of the bike. In addition, the Cobra's frame is designed with a reserved fork opening distance, unlocking the possibility of upgrading from 4.5-inch tires to 4.8-inch tires.
FRONT FORK: COIL SUSPENSION
The durable Himiway suspension fork has preloaded adjustments for the spring’s stiffness and a lock-out lever. With 80mm of available compression, it is the perfect fit for your chosen terrain.
Hydraulic Brakes
Hydraulic brakes offer superior braking performance and durability. There won't be a decline in braking power for 5 years with proper maintenance.
DURABLE ALUMINUM CRANKSET
Durable aluminum crankset guards ensure protection to the chainring and assist the chainstay while traveling over rugged terrain.
26"X4.8" CST ALL-TERRAIN TIRES
The 26 X4.8 Cheng SHIN all-terrain tires are the biggest fat tires in the U.S. e-bike market, providing upgraded grip and traction on rugged roads. Even in the most challenging terrains and weather conditions, these fat tires guarantee your safety and offer you an smooth and easy riding experience.
Easy to Assemble
Customer Reviews
Based on 15 reviews
100%
(15)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
What a beast of a bike, gotta be the ultimate full suspension fat bike insane power the suspension is absolutely great and smooth. Yes it's expensive but it's worth every penny in my opinion
R
This bike has got to be the ultimate badass E fat bike of all time. This bike does it all. I'm so impressed with it. It cost a bunch but it's for sure worth it.
R
I've had my D7 PRO for two weeks, and LOVE it! From B.C. mountain trails, riding the sea wall, to commuting, perfect!
Delivered two days ahead of schedule.
P
I haven’t received the bike yet!!!🤷🏻♂️
M
👍👍
D
A ebike that can do everything off-road on weekend and going to work and week days.for the first week I got 5 people that gave 👍 thanks you himiway
R
Very powerful bike 👍👍👍
D
En français
S
It’s an absolutely blast
P
Originally purchased the Cobra, shortly after I upgraded to the Cobra Pro, hub drive, shocks, and display are great improvements, very pleased with the Cobra Pro.
Thank you
FAQ Cobra Pro
La hauteur de pilote recommandée est de 5′9″ ~ 6′5″, avec une charge utile maximale de 400 lb.
Nos clients ont généralement besoin de 45 à 70 minutes pour assembler le vélo. Est-ce trop long ? Consultez la vidéo d'instructions officielle de Himiway ou trouvez un professionnel sur Velotooler pour obtenir de l'aide.
Cobra Pro adopte la dernière batterie Samsung/LG avec sa nouvelle matière première synthétique en aluminium, fournissant une forte puissance pour votre conduite.
Cobra Pro est plus professionnel et les différences résident dans le moteur central, le système de changement de vitesse Shimano à 10 vitesses, la conception de l'accélérateur au pouce et l'écran LCD.
Les pneus anti-crevaison CST de 26″ x 4,8″ - les plus gros pneus de vélo électrique sur le marché canadien - adhèrent à la route pour rendre la conduite plus stable sur tous les terrains. En ville, à la plage, dans la neige ou à la montagne, nos gros pneus vous emmènent partout où vous voulez aller.
Une plate-forme à quatre barres permet à la suspension de fonctionner principalement indépendamment du freinage. Avec le système de suspension à quatre barres et à ressorts hélicoïdaux, votre sécurité est garantie dans les conditions de conduite les plus difficiles.
Le moteur à entraînement central maintient parfaitement l'équilibre avant et arrière sans affecter ses performances exceptionnelles d'absorption des vibrations, fournissant une puissance de sortie plus forte et continue.
Les cobras se trouvent partout dans le monde. Ils peuvent survivre dans des environnements extrêmes et se déplacer et voyager librement et facilement sur n'importe quel terrain.
Il y a plus de réponses et de solutions dans la section FAQ . Ou vous pouvez envoyer un courriel à support_ca@himiwaybike.com.
