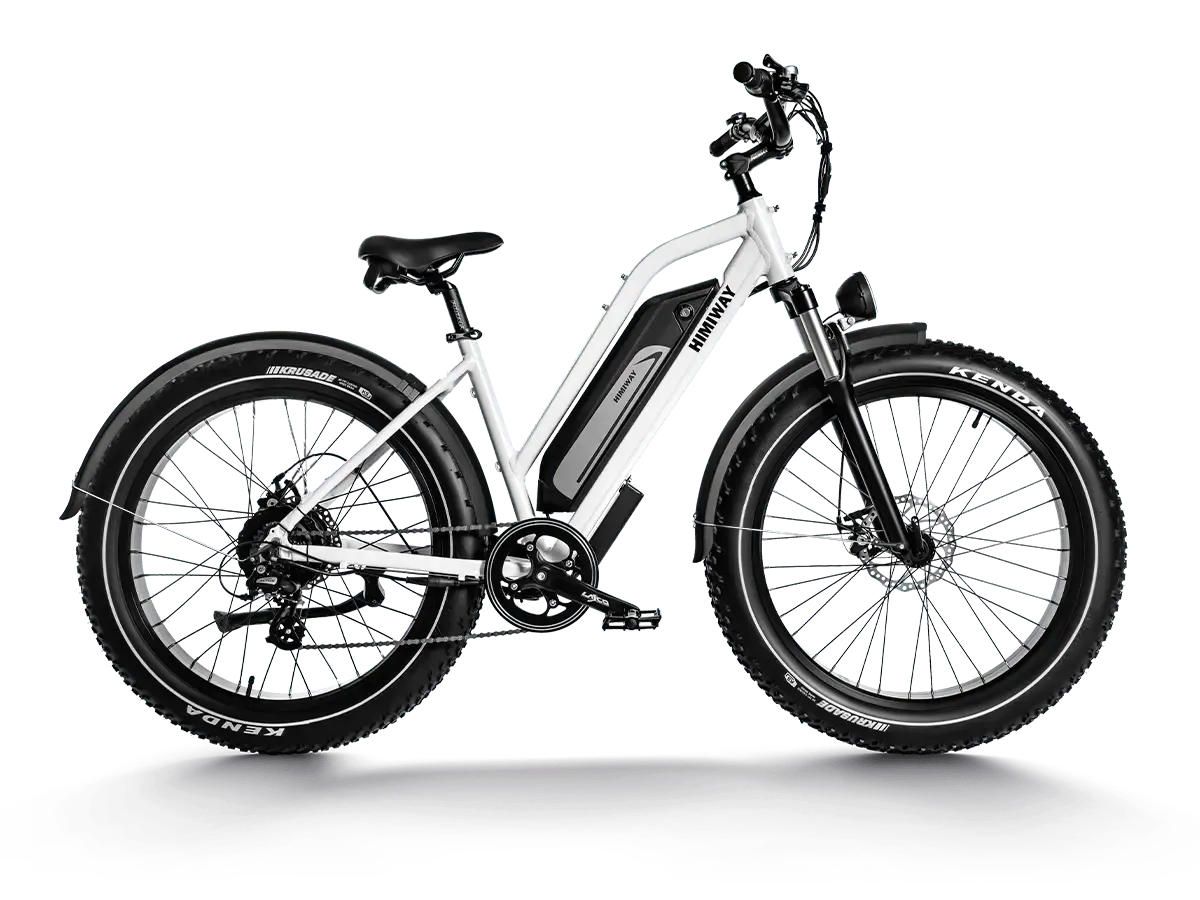

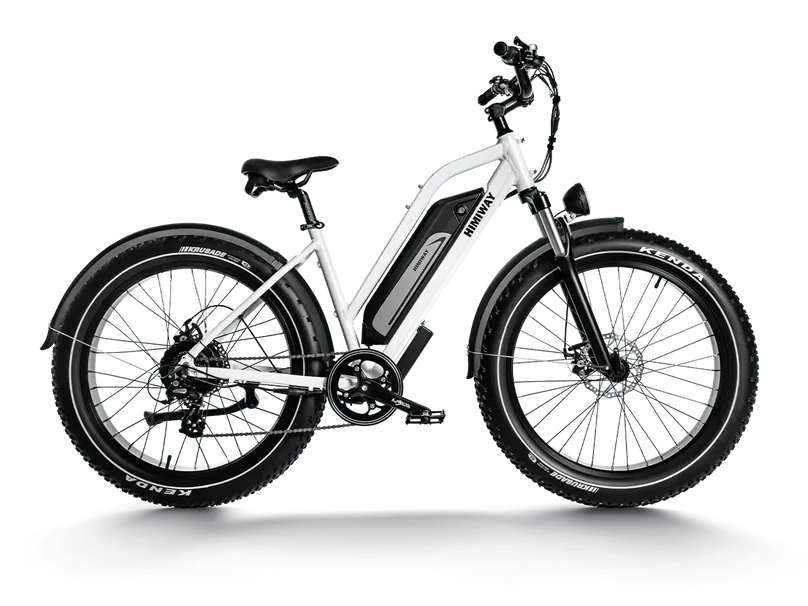

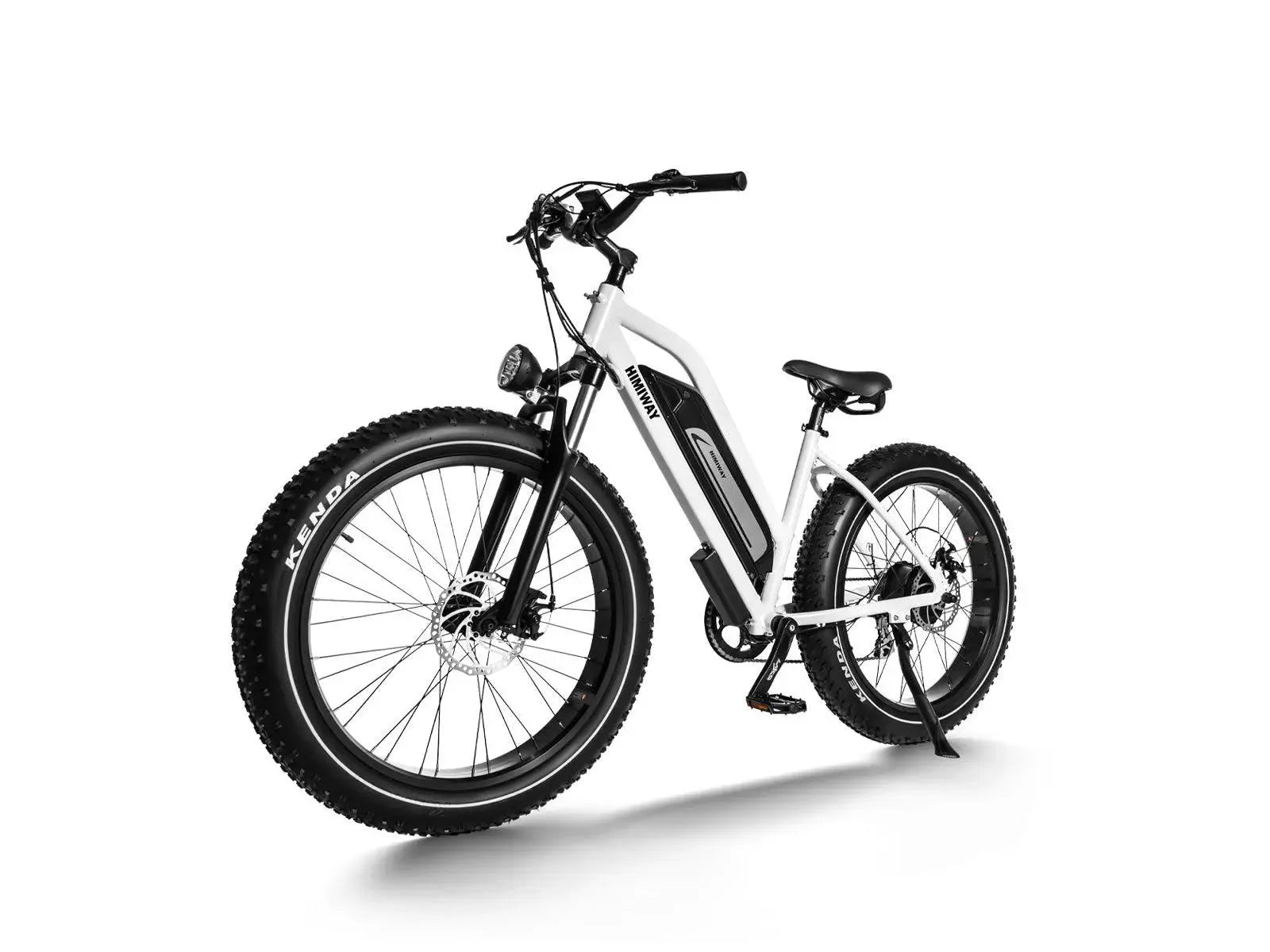

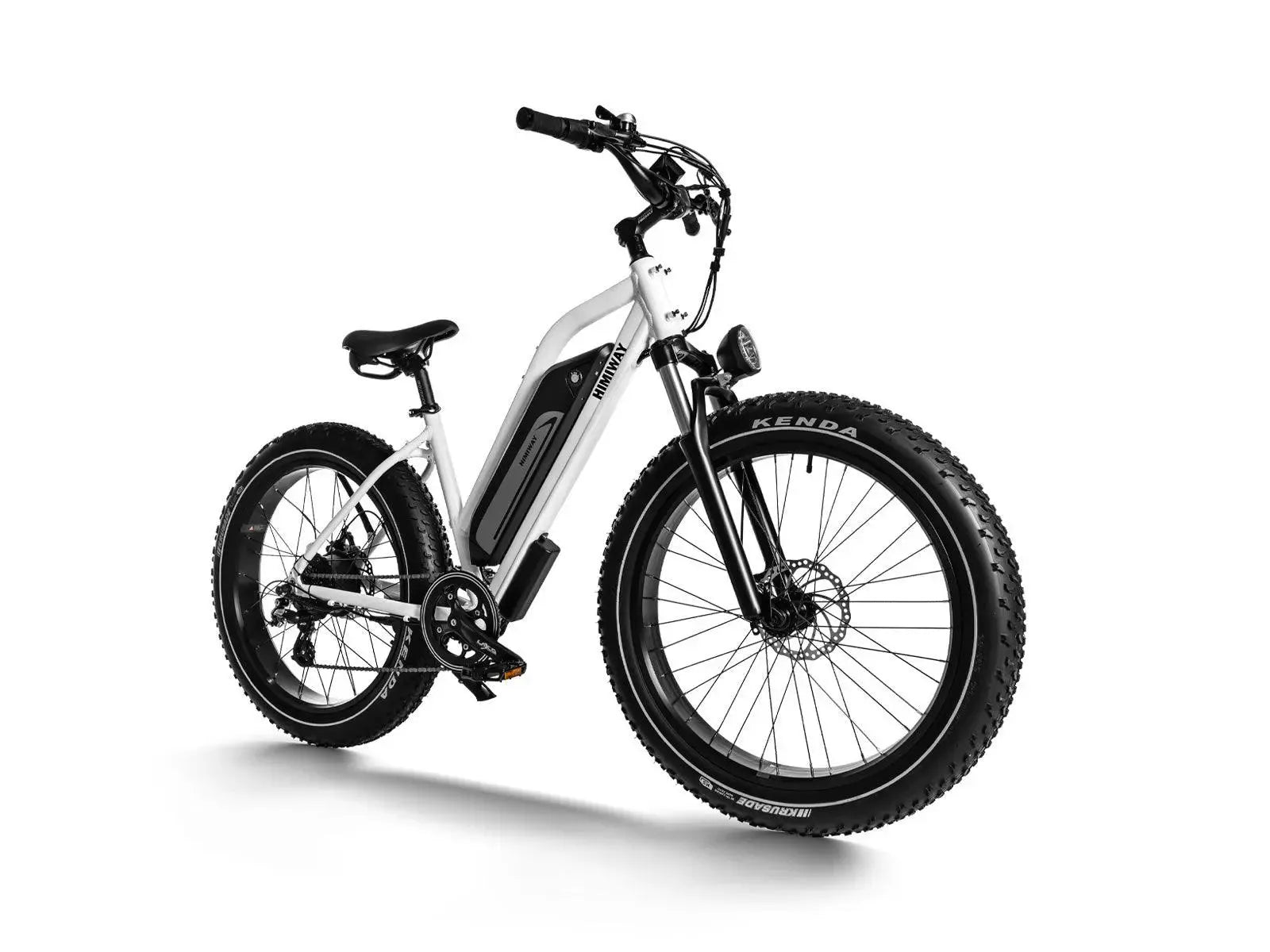

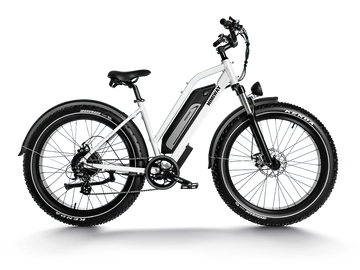

Croiseur de vélo électrique tout-terrain à longue portée
One Cruiser, All Terrains
-
Disponibilité: En stock
-
Shipping Time: Within 2 Business Days
Buy D3 Get Christmas Gifts
Impossible de charger la disponibilité du ramassage
Technical Specifications
Geometry
-
A – total length75
-
B – handlebar height46.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter28.7
-
F – minimum seat height22
-
G – maximum seat height29
-
H – chain stay length18.7
-
K – effective top tube length23
-
L – head tube length6.1
-
Standover height27.9Step-Thru:30.3
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H148 28.6×44*44×30mm
-
ForkGuide-26”-TNL-95 95mm travel
-
Front wheelMB015-92 13G*135*9mm MD242 26*87mm 12G*36
-
Rear wheelRim: 13G*135*9mm MD242 26*87mm Spoke: 12G*36 Hub: 48v 750w Himiway hub motor
-
TiresEXCE26 26*4.0
-
Battery48V 15Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4IXF-212FA 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemYC-C410 28.6*80*31.8mm
-
HandlebarYC-B087 22.2*31.8*700mm
-
SeatpostH202211DJ ISO-M 30.4*350mm
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1" ~ 6'5"Step-Thru:5'3" ~ 6'5"
-
Rider height72lb.
-
Max. system weight350 lb.
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
750 W
Geared Hub Motor
-
720 Wh
Samsung/LG Battery
-
350 lb.
Payload Capacity
-
20+ Mph
Top Speed The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
-
Mechanical
180MM Brakes
-
7-Speed
Shimano Derailleur
-
26x4 "
Fat Tire
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
- 2 - The c5 can be unlocked for speed, and when it's unlocked, it's about 28mph.
One Cruiser, All Terrains
Designing an elegant, sophisticated and versatile electric bike has always been the ultimate goal of Himiway. The low-step design provides convenience and exceptional comfort while retaining all the excellent performance featured in Cruiser. The 26 inches fat tires offer decent skid resistance and anti-vibration ability. Ride with convenience; Ride with elegance; Ride with us!

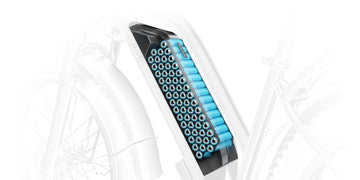

LONG RANGE EXPERT
840Wh High-performance Lithium-ion Battery
720 Wh
48V 15AhBMS
Ensure your SafetyIt combines the 48V 15AH Samsung/LG Lithium-ion Battery to ensure a long life expectancy and distinguished performance. The single range can be up to 60+ miles per charge on pedal-assist mode.
-
50 Miles
Per Charge (maximum) The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
-
8.8 lb.
Battery Weight
- 1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
The BMS (battery management system) is critical to the battery’s safe operation, overall performance, and longevity. If it detects any unsafe conditions, the BMS shuts the battery down to protect the lithium-ion cells and the rider.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
Temperature Control
Updated 750W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
750W
1200W PeakFOC
Field oriented control750W Upgraded Brushless Geared Hub Motor use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
80 Nm
Max Torque
-
1200 W
Peak
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
clear at a glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
LCD Display
Left Handle
Right Handle
The Backlit LCD display provides information on speed, mileage, power, etc.
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set
-
Switch
-
Light ON/OFF
-
Info
-
Half twist throttle
-
Shimano gearbox
-
Bell
The All-terrain Fat Tire
26"x4"
All Terrain26"x4" fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road

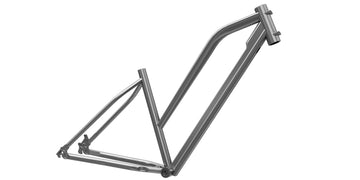

350 lb. Payload with Aerospace Grade Aluminum Frame
6061
Aluminum5'3" ~ 6'4"
Recommended Rider HeightsIts frame is made of high-quality 6061 aluminum, capable of handling a maximum weight of 350 lbs, surpassing the average industry standard payload of 275 lbs. The frame is specially designed for larger riders and those carrying heavy belongings. With its upgraded motor, Himiway Cruiser provides exceptional power and smoothness, even when carrying heavy cargo.
-
77 lb.
with Battery
-
350 lb.
Payload Capacity
With adjustable saddle and strong frame structure, it can meet the needs of riders of different height and weight.
Zoom in on New Features
All these upgraded components are designed to give a comfortable, smooth and safe riding experience on city roads.
Shimano 7 Speed Gear Shift System
The Shimano 7 speed freewheel means you can shift to a larger cog for uphill riding and downshift to a smaller cog for high speed riding. In combination with the pedal-assist system, you can adjust the most suitable speed to complete your journey.
180MM Mechanical Disc Brakes
Both the front and rear 180MM mechanical disc brakes provide ample stopping power even in the harshest conditions.
Front Fork: Coil Suspension & Hydraulic Lockout
Alloy front suspension fork has 80mm of travel, preload adjustment, and lockout.
Velo Saddle Seat
Comfortable saddle seat features a comfortable design specially made for pressure relief.
Durable Aluminum Crankset
Durable aluminum crankset guards to provide further protections to the chainring and help the chainstay to travel over rough terrain.
Half Twist Throttle
The Half-twist throttle prevents the accidental activation, protecting you from accidental injuries.
48V Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.
Easy to Assemble
Watch VideoTechnical Specifications
Geometry
-
A – total length75
-
B – handlebar height46.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter28.7
-
F – minimum seat height22
-
G – maximum seat height29
-
H – chain stay length18.7
-
K – effective top tube length23
-
L – head tube length6.1
-
Standover height27.9Step-Thru:30.3
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H148 28.6×44*44×30mm
-
ForkGuide-26”-TNL-95 95mm travel
-
Front wheelMB015-92 13G*135*9mm MD242 26*87mm 12G*36
-
Rear wheelRim: 13G*135*9mm MD242 26*87mm Spoke: 12G*36 Hub: 48v 750w Himiway hub motor
-
TiresEXCE26 26*4.0
-
Battery48V 15Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charger
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4IXF-212FA 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemYC-C410 28.6*80*31.8mm
-
HandlebarYC-B087 22.2*31.8*700mm
-
SeatpostH202211DJ ISO-M 30.4*350mm
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1" ~ 6'5"Step-Thru:5'3" ~ 6'5"
-
Rider height72lb.
-
Max. system weight350 lb.
